SolaX Power X1 Series Quick Installation Manual

Quick Installation Guide
X1 Series 0.6KW-3.6KW
Packing Lists
I
X1
Female DC unit×1
Inverter ×1 Negative DC pin contact ×1 Male DC unit×1
Ring terminal ×1
AC terminal×1
X1 Series 0.6KW-3.6KW
Quick installation guide×1 Warranty card×1
Note:
1) Please refer to the appropriate instruction manual for the usage of optional accessories.
Expansion tube×2
Male DC unit×1
Expansion screw ×2
Female DC unit×1
Positive DC pin contact ×1
X1 Series User Manual
0.6kw - 3.6kw
Copyright Declaration
The copyright of this manual belongs to Solax Power Network Technology(Zhe jiang) Co,. Ltd.
and no reproduction or distribution of it in any form or by any means. All rights reserved. SolaX Any corporation or individual should not plagiarize, partitially or fully copy (including software,etc.),
Pocket WiFi×1 Power Network Technology (Zhe jiang) Co.,Ltd. reserves the right of final interpretation.
Product manual×1
(optional)

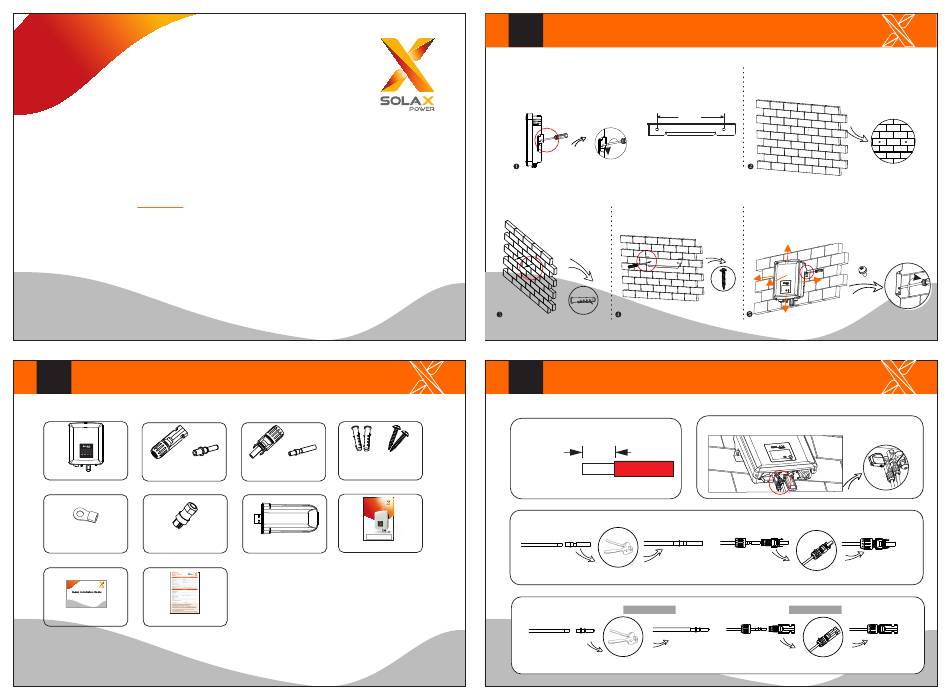

Inverter Installation
II
- Unscrew the bracket from the back of the inverter.
- Mark the position of the two holes.
- Tighten the expansion tubes.
- Screw the expansion screws.
III PV Connection
Cable size: 12 AWG
trip length:
7.0mm
12 AWG
positive DC
pin contact
torque:1.2±0.1Nm
negative DC
pin contact
cable
clamp contact
- Drill holes with φ10.
- Depth: at least 50mm.
200mm
- Match the inverter with the bracket.
- Screw the cross recessed screw on the right side.
300mm
300mm
300mm
300mm
300mm
-Align the two halves connectors.
male plug
torque:1.2±0.1Nm
female plug
nut
tight nut
