SolaX Power X1 Series Quick Installation Manual

SolaX Power X1 Series Quick Installation Manual

3.0kw-5.0kw
Hide thumbs Also See for X1 Series:

Advertisement

Quick Links

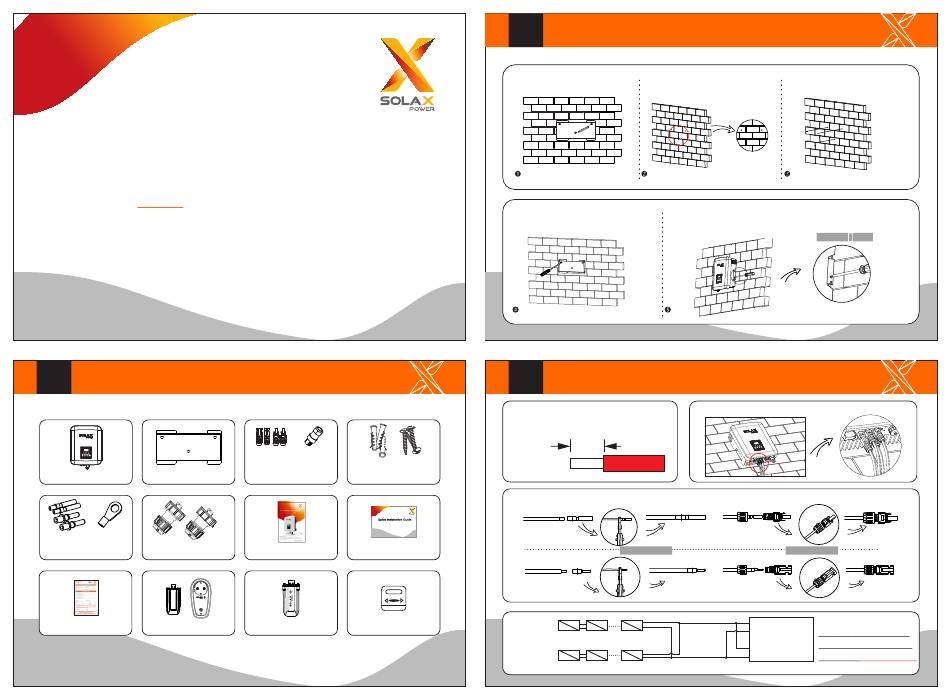

Quick Installation Guide

X1 Series 3.0KW-5.0KW
Packing List
I
Bracket X 1
X1 Series X 1
Positive DC pin contact ×2
Negative DC pin contact ×2
Waterproof connector with RJ45
Earth terminal X 1
X 2
Warranty card X 1
Smart plug X 1(Optional)
Note:
Please refer to the appropriate instruction manual for the usage of optional accessories.
Male DC connector X 2
Screw package:
Female DC connector X 2
Expansion tube X 3
AC connector X 1
Expansion tube X 3
X1 Series 3.0KW-5.0KW
Quick installation guide X1
User manual X 1
Pocket WiFi X 1(Optional)
Meter X 1(Optional)
Inverter Installation
II
- Drill holes with φ6 drill.
- Mark the position of three holes
- Depth: at least 50mm.
- Match the inverter with the bracket.
- Screw the expansion screws.
- Screw the cross recessed screw on the right side.
III
PV Connection
Cable size: 12 AWG
trip length:
6.0mm
12 AWG
positive DC
pin contact
torque:1.2±0.1Nm
negative DC
pin contact
cable
clamp contact
×
+
-
+
-
PV array
- Tighten the expansion tubes.
torque:1.5±0.2Nm
-Align the four halves connectors.
male plug
torque:1.2±0.1Nm
female plug
nut
tight nut
+
Note!
+
PV1
-
The PV connection
mode as the diagram
+
PV2
-
shown is
not allowed!
-
Inverter
