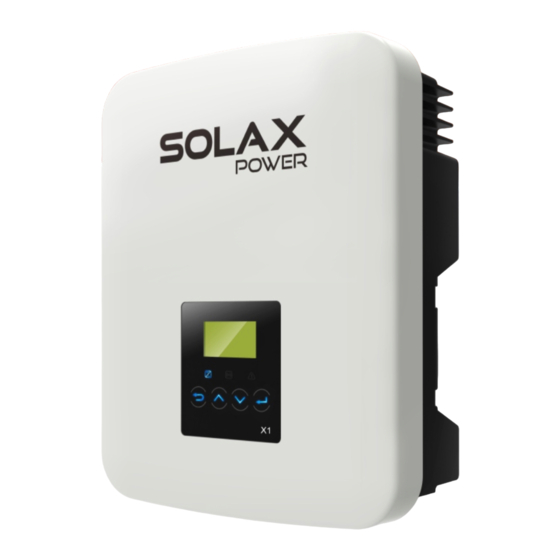

SolaX Power X1 Series User Manual

3.0kw - 5.0kw
Hide thumbs Also See for X1 Series:
Table of Contents

Advertisement

Quick Links

Enlarged version
Solax Power Co,. Ltd.
No.288 Shizhu Road, Tonglu Economic Development Zone,
Tonglu City, Zhejiang Province, China.
Tel: +86 0571-56260011
E-mail: info@solaxpower.com
Copy Declaration
The copyright of this manual belongs to SolaX Power Co.,Ltd.. Any corporation or individual
should not plagiarize, partitially or fully copy(including software,etc.), and no reproduction or
distribution of it in any form or by any means. All rights reserved. SolaX Power Co.,Ltd,.reserves
the right of final interpretation.
614.00127.02
X1 Series
User Manual
3.0kw - 5.0kw

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X1 Series and is the answer not in the manual?

Questions and answers

Related Manuals for SolaX Power X1 Series

Summary of Contents for SolaX Power X1 Series

  • Page 1 The copyright of this manual belongs to SolaX Power Co.,Ltd.. Any corporation or individual Tel: +86 0571-56260011 should not plagiarize, partitially or fully copy(including software,etc.), and no reproduction or E-mail: info@solaxpower.com distribution of it in any form or by any means. All rights reserved. SolaX Power Co.,Ltd,.reserves the right of final interpretation. 614.00127.02...

  • Page 2: Table Of Contents

    Contents Contents Copyright Declaration The copyright of this manual belongs to SolaX Power Co.,Ltd..Any corporation or individual should not plagiarize,partially copy or fully copy it(including software,etc.), 1 Note on this Manual and no reproduction or distribution of it in any form or by any means.All rights reserved.

  • Page 3: Target Group

    1 Notes on this Manual 7.1 Trouble Shooting 7.2 Routine Maintenance 1.1 Scope of Validity This manual is an integral part of X1 Series, It describes the assembly, installation, commissioning, maintenance and failure of the product. Please 8 Decommissioning read it carefully before operating.

  • Page 4: Safety

    WARNING! Over-voltage protection with surge arresters should be provided The X1 Series are PV inverters which can convert the DC current of the PV when the PV power system is installed. generator into AC current and feed it into the public grid.

  • Page 5: Important Safety Instructions

    It contains no user-serviceable parts. See Warranty for enclosure body may become hot. instructions on obtaining service. Attempting to service the X1 Series Only touch the lower enclosure lid during operation. inverter yourself may result in a risk of electric shock or fire and will void your warranty.

  • Page 6: Explanation Of Symbols

    Safety Safety PE Connection and Leakage Current Symbols on the Inverter Symbol Explanation • The end-use application shall monitor the protective conductor by residual current operated protective device (RCD) with rated fault current Ifn≤240mA which automatically disconnects the device in case of a fault. Operating Display.

  • Page 7: Introduction

    If ignored, physical injury or death may follow, or damage X1 Series inverter is one of the finest inverters on the market today, may occur to the unit. Read this instructions before you work on the unit. If...

  • Page 8: Dimension

    Introduction Technical Data 4. Technical Data Object Description DC Switch (optional) 4.1 DC input Waterproof Lock Valve DC Connector X1-3.0-T-D/ X1-3.3-T-D/ X1-3.6-T-D/ X1-4.2-T-D/ X1-4.6-T-D(AU)/ X1-5.0-T-D/ X1-5.0-T-D(AU)/ Ground screw Model X1-3.0-T-N X1-3.3-T-N X1-3.6-T-N X1-4.2-T-N X1-4.6-T-N(AU) X1-5.0-T-N X1-5.0-T-N(AU) Smart plug (optional) Max. recommended DC power [W] 3250 3500 4000...

  • Page 9: Efficiency, Safety And Protection

    Dimension [W/H/D](mm) 420*339*143 Dimension of packing [W/H/D](mm) 583*492*278 14.6 14.6 14.6 16.7 16.7 16.7 16.7 Net weight [kg] X1 Series 3.0KW-4.6KW 17.6 17.6 17.6 Gross weight [kg] 19.7 19.7 19.7 19.7 Installation Wall-mounted Operating temperature range[℃] -20~+60 (derating at 45)

  • Page 10: Installation Precaution

    Installation Installation 5.3 Installation Precaution 5.4 Installation Steps X1 Series inverter is designed for outdoor installation (IP 65). Ø Preparation Make sure the installation site meets the following conditions: Below tools are needed before installation. Not in direct sunlight. Not in areas where highly flammable materials are stored.

  • Page 11: Connection Of The Inverter

    Installation Installation Note! PV connection mode below is not allowed! PV array Inverter Connection Steps 5.5 Connection of the Inverter a) Turn off the DC switch. b) Choose 12 AWG wire to connect the PV module. 5.5.1 The Main Steps to Connect to the Inverter c) Trip 6mm of insulation from the wire end.
  • Page 12 Separate the AC plug into three parts as below. - Hold the middle part of the female insert, rotate the back shell to X1 series inverter are designed for single phase grid. Voltage range is loose it, and datach it from female inset.
  • Page 13 Installation Installation Selection of Fuses and Cables Note! Main cable(AC line cable)shall be short circuit protected and thermal overload protected. Always fit the input cable with fuse. Normal gG(US:CC or T)fuses will protect the input cable in short circuit situation. They will also prevent damage to adjoining equipment.
  • Page 14 Please see the Quick Guide for Single Phase Meter Installation for details. b. Meter(optional) With this single phase meter working together with the X1 series, you can: Monitor the energy to grid and from grid throughout the whole day. DRM is provided to support several demand response modes by giving control Achieve the export control function with a higher accuracy.
  • Page 15 Installation Installation Upgrade 3) then insert U-disk into the USB port on the bottom of the inverter. Then turn on DC switch or connect the PV connector, the LCD will show User can update the inverter system through an U-disk. picture as below.

  • Page 16: Run The Inverter

    Installation Operation Method 6. Operation Method 5.6 Run the inverter Start inverter after checking all below steps: a) Check that device is xed well on the wall. 6.1 Control panel b) Make sure all the DC breakers and AC breakers are disconnected. c) AC cable is connected to grid correctly.

  • Page 17: Lcd Function

    Operation Method Operation Method 6.2 LCD Function 6.3 LCD Operation Menu structure ● LCD Digital Display The main interface is the default interface, the inverter will automatically jump to this interface when the system started up successfully or not Grid operated for a period of time.
  • Page 18 Operation Method Operation Method Password The default password is “0000”for end user, which only allows the user to review the current setting and some easy setting. If professional change is ﹦﹦﹦﹦ Grid ﹦﹦﹦﹦ needed, please contact with the distributor or factory for installer password. 0.0 V We need to increase or decrease the word by pressing up or down button.
  • Page 19 Operation Method Operation Method b) Language Mode Comment This inverter provides several languages for customer to choose. Under-Excited PF value Over-Excited PF value ﹦﹦﹦﹦ Language ﹦﹦﹦﹦ Upper limit English Lower limit Curve German Power Upper French Power Lower QuVupRate ( EN50438_NL ) Q( u ) c) Date time QuVlowRate...
  • Page 20 Operation Method Operation Method f )P(u) Function i) Export control The device is suitable for Australia if the “Enable” is chosen. With this function the inverter can control energy exported to the grid. Whether having this function is based on user’s wishes. Choose”Enable”in Mode Select means user must install a meter to monitor ﹦﹦﹦...
  • Page 21 Operation Method Operation Method ● l) Reset energy History User can reset the energy record here. Press up or down button to select and The history function contains four aspects of the information: Inverter yield, load press “OK” to confirm. consume, feed in energy and error logs.

  • Page 22: Troubleshooting

    This section contains information and procedures for solving possible problems with X1 series inverters, and provides you with troubleshooting tips to identify and solve most problems that could occur with the X1 series inverters. This section will help you narrow down the source of any problems you may encounter.

  • Page 23: Routine Maintenance

    Troubleshooting Troubleshooting ● If your inverter's information panel is not displaying a Fault light, check the following list to make sure that the present state of the installation allows proper operation of the unit. — Is the inverter located in a clean, dry, adequately ventilated place? —...

  • Page 24: Decommissioning

    Decommissioning 8. Decommissioning 8.1 Dismantling the Inverter Disconnect the inverter from DC Input and AC output. Wait for 5 minutes for de-energizing. Disconnect communication and optional connection wirings. Remove the inverter from the bracket. Remove the bracket if necessary. 8.2 Packaging If possible, please pack the inverter with the original packaging.
