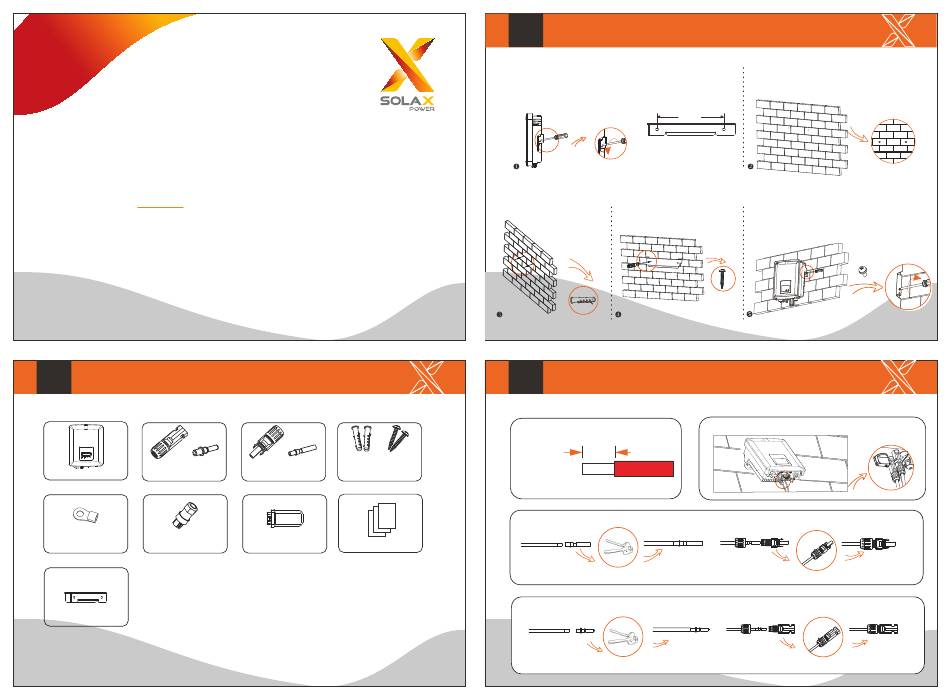

Quick Installation Guide
X1 Series 0.6KW-3.6KW
Packing Lists
I
Female DC unit*1
Male DC unit 1

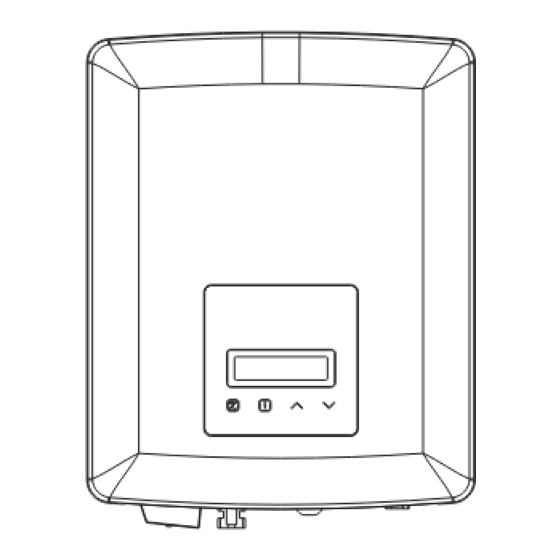

Inverter *1
Negative DC pin contact*1
Earth terminal 1
*
AC Connector
Bracket * 1
Note:
1) Please refer to the appropriate instruction manual for the usage of optional accessories.
2)
For the optional accessories, please be subject to the actual delivery.
Expansion tube*2
Male DC unit *1
Self-tapping
screw*2
Female DC unit 1
Positive DC pin contact *1
Wi-Fi dongle (optional),
Documents
LAN/GPRS dongle (optional)*1
Inverter Installation
II
- Unscrew the bracket from the back of the inverter.
- Mark the position of the two holes.
- Tighten the expansion tubes.
- Screw the expansion screws.
III
PV Connection
Cable size: 4~6 mm²
strip length:
7.0mm
positive DC
pin contact
negative DC
pin contact
cable
clamp contact
- Drill holes with φ6 drill.
- Depth: at least 50mm.
200mm
- Match the inverter with the bracket.
- Screw the cross recessed screw on the right side.
-Align the two halves connectors.
male plug
female plug
nut
tight nut
Advertisement
Related Manuals for SolaX Power X1-3.0
Summary of Contents for SolaX Power X1-3.0
- Page 1 Inverter Installation - Drill holes with φ6 drill. - Unscrew the bracket from the back of the inverter. - Mark the position of the two holes. - Depth: at least 50mm. 200mm Quick Installation Guide X1 Series 0.6KW-3.6KW - Tighten the expansion tubes. - Match the inverter with the bracket.
- Page 2 AC Connection Firmware Upgrading outer jacket 52.5mm 1.Slide the cable nut andback shell onto the cable. trip length - Download the upgrade program into USB flash drive. - Insert the USB flash drive with program into the “DONGLE” port on the bottom. 2.Insert the tripped end of each threewires into holes in the female 55mm insert, then tighten each screw with L-type wrench.
