- Page 1 Released Application Note 51578 (Revision NEW, 7/2017) Original Instructions Software Update Procedure for EM80/300 Stöber Drivers MDS5150/LIT...
- Page 2 Woodward reserves the right to update any portion of this publication at any time. Information provided by Woodward is believed to be correct and reliable. However, no responsibility is assumed by Woodward unless otherwise expressly undertaken.
-
Page 3: Table Of Contents
Released Application Note 51578 Software Update for EM80/300 Stöber Drivers Contents ................2 ARNINGS AND OTICES ..........3 LECTROSTATIC ISCHARGE WARENESS 1. G ............4 HAPTER ENERAL NFORMATION Introduction ......................4 References ......................4 General Safety Precautions..................5 2. P .............. -
Page 4: Warnings And Notices
Released Software Update for EM80/300 Stöber Drivers Application Note 51578 Warnings and Notices Important Definitions This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. -
Page 5: Electrostatic Discharge Awareness
Do not touch the components or conductors on a printed circuit board with your hands or with conductive devices. To prevent damage to electronic components caused by improper handling, read and observe the precautions in Woodward manual 82715 , Guide for Handling and Protection of Electronic Controls, Printed Circuit Boards, and Modules. -
Page 6: Chapter 1. General Information

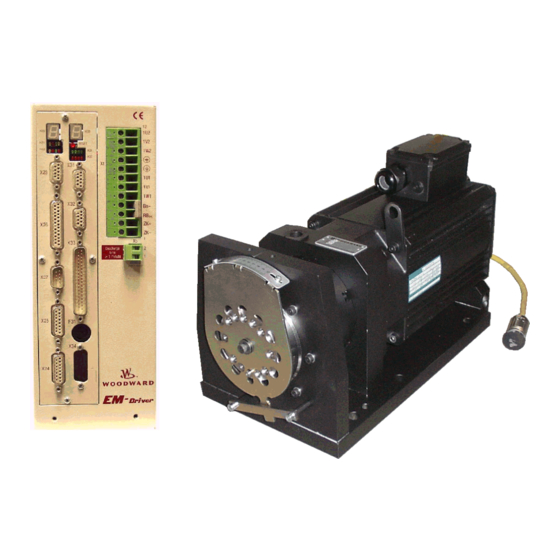

EM-80/EM-300 actuator consists of a high-performance, three-phase brushless AC motor that drives a planetary gearbox. For specific operating information such as start-up, shutdown, and the prime mover’s response to signals from the Woodward control, refer to the prime mover manufacturer’s manual. References The publications below are available on the Woodward website (www.woodward.com/publications). -
Page 7: General Safety Precautions
Due to technical requirements, devices or motors may include individual components that contain dangerous materials. Do not replace or substitute Woodward products and components with non-Woodward devices without authorization from Woodward. Observe all applicable regulations during installation. -
Page 8: Chapter 2. Preparations
3. Configuration settings of the EM-80/EM-300 (if applicable) Physically locate the existing driver and record the Woodward part number. The Woodward part number is located on a decal on the side of the driver housing and typically is shown as P/N 3522-10XX. To locate the necessary information on driver see picture below. - Page 9 Released Application Note 51578 Software Update for EM80/300 Stöber Drivers In addition to configuration info, it is important to verify and record the rotation sense of the actuator: clockwise (CW) or counterclockwise (CCW). The rotation sense of each actuator may vary, as applications may vary.
-
Page 10: Chapter 3. Preparation For Software Update
Released Software Update for EM80/300 Stöber Drivers Application Note 51578 Chapter 3. Preparation for Software Update Precautions The prime mover or driven device controlled by the EM-80/EM-300 system needs to be stopped and secured according to the prime mover manufacturer’s procedures. -
Page 11: Em-80/ Em-300 Driver Update
Review the “First Steps before Update” section in Chapter 2 to verify matching serial numbers. Woodward strongly recommends that the following procedure is performed only by a qualified installer possessing a solid working knowledge of the system in which this product is utilized. If the... - Page 12 Released Software Update for EM80/300 Stöber Drivers Application Note 51578 1. Turn OFF power supply of driver or disconnect X11 plug on top side of driver. Make sure that the driver is not enabled (the enable input is de- energized).
- Page 13 Released Application Note 51578 Software Update for EM80/300 Stöber Drivers 6. After the Enter key is pressed, the LCD will display A..inverter group parameters. 7. Press Enter key to enter the A..inverter configuration parameter. 8. Navigate to the parameter A00 using the Up and Down keys if needed, then press Enter.
- Page 14 Released Software Update for EM80/300 Stöber Drivers Application Note 51578 9. Press the Up key to save the values. This will update software and configurations made to the control. 10. After a few seconds, the driver displays “0: error free” if the update performs without errors.
- Page 15 Released Application Note 51578 Software Update for EM80/300 Stöber Drivers 15. Navigate to parameter group “P.. cust. Parameter” with the Left and Right arrow keys. 16. Press Enter to enter the P group parameters, and navigate with the Up and Down keys to parameter “P16 SW pn.rev”.
-
Page 16: Safety Checks Before Starting The Prime Mover
Application Note 51578 Safety Checks before Starting the Prime Mover Once the driver application has been updated, Woodward recommends stroking the actuator to verify the rotation sense. Make sure the actuator is not connected to any linkage and that there are no potential hazards to personnel and/or equipment during the stroke test. -
Page 17: Chapter 5. Product Support And Service Options
A current list of Woodward Business Partners is available at www.woodward.com/directory. Product Service Options Depending on the type of product, the following options for servicing Woodward products may be available through your local Full-Service Distributor or the OEM or Packager of the equipment system. -
Page 18: Returning Equipment For Repair
To prevent damage to electronic components caused by improper handling, read and observe the precautions in Woodward manual 82715, Guide for Handling and Protection of Electronic Controls, Printed Circuit Boards, and Modules. -
Page 19: Engineering Services
Field Service engineering on-site support is available, depending on the product and location, from one of our Full-Service Distributors. The field engineers are experienced both on Woodward products as well as on much of the non- Woodward equipment with which our products interface. -
Page 20: Technical Assistance
Application Note 51578 Technical Assistance If you need to contact technical assistance, you will need to provide the following information. Please write it down here before contacting the Engine OEM, the Packager, a Woodward Business Partner, or the Woodward factory: General... - Page 21 Released Application Note 51578 Software Update for EM80/300 Stöber Drivers THIS PAGE INTENTIONALLY LEFT BLANK Woodward...
- Page 22 Email and Website—www.woodward.com Woodward has company-owned plants, subsidiaries, and branches, as well as authorized distributors and other authorized service and sales facilities throughout the world. Complete address / phone / fax / email information for all locations is available on our website.
