Summary of Contents for Woodward ESDR 4

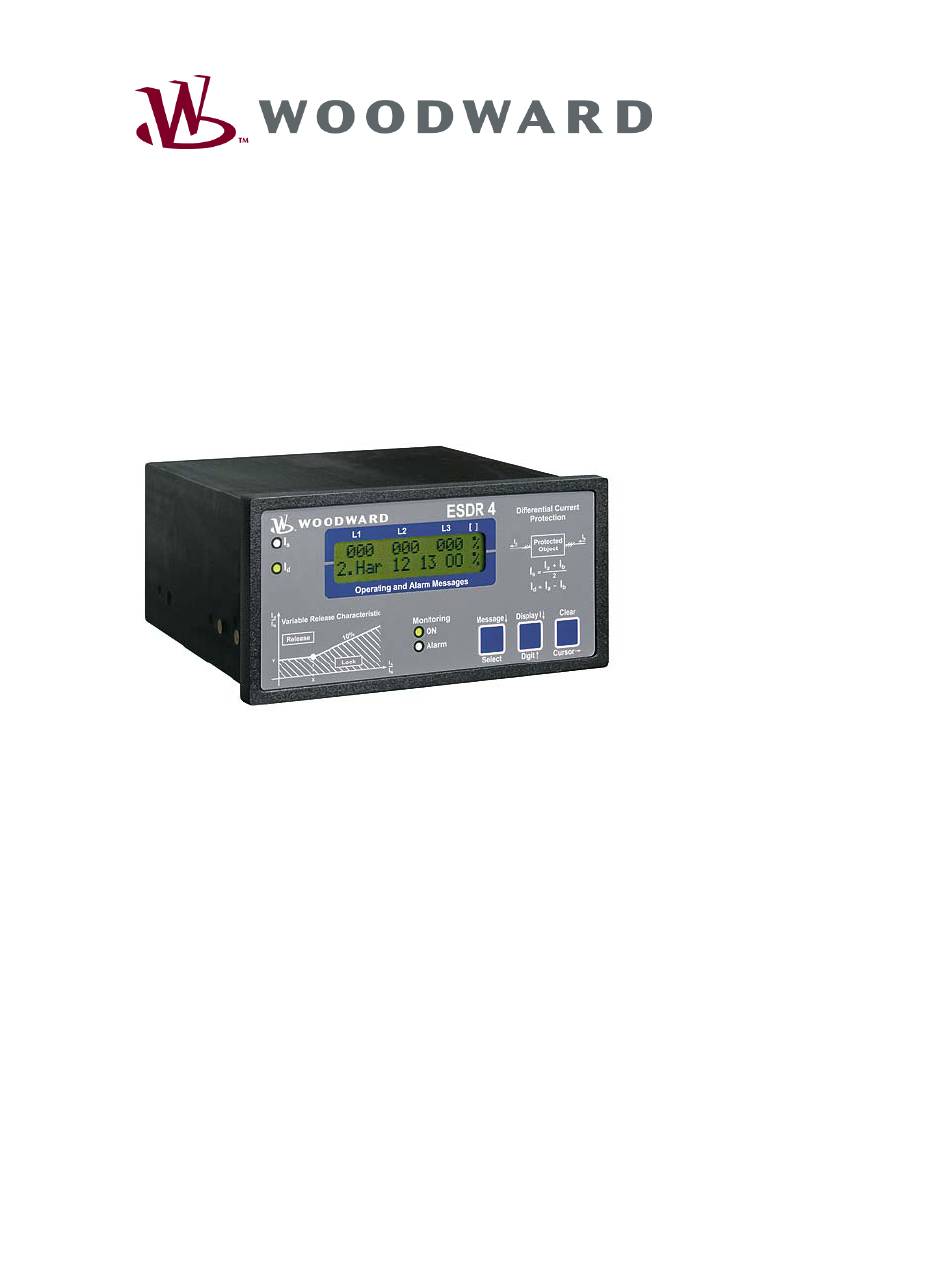

- Page 1 37137B ESDR 4 Current Differential Protection Relay Manual Manual 37137B...
- Page 2 Provides other helpful information that does not fall under the warning or caution categories. Woodward reserves the right to update any portion of this publication at any time. Information provided by Woodward is believed to be correct and reliable. However, Woodward assumes no responsibility unless otherwise expressly undertaken.
-
Page 3: Table Of Contents
Manual 37137B ESDR 4 - Current Differential Protection Relay Revision History Rev. Date Editor Changes NEW 04-04-13 Release 05-01-10 Minor corrections 07-03-01 Minor corrections Contents 1. G ..................6 HAPTER ENERAL NFORMATION 2. E ..............7 HAPTER LECTROSTATIC ISCHARGE WARENESS 3. W ........................8... - Page 4 Manual 37137B ESDR 4 - Current Differential Protection Relay D. S ....................30 PPENDIX ERVICE PTIONS Product Service Options........................30 Returning Equipment for Repair ......................30 Packing a Control ........................31 Return Authorization Number RAN .................... 31 Replacement Parts ..........................31 How to Contact Woodward........................
- Page 5 Manual 37137B ESDR 4 - Current Differential Protection Relay Figures and Tables Figures Figure 3-1: Wiring diagram ............................... 9 Figure 3-2: Power Supply ................................ 10 Figure 3-3: CT (transducer) inputs............................11 Figure 3-4: Discrete inputs............................... 12 Figure 3-5: Relay outputs................................. 13 Figure 4-1: Protection principle ...............................
-
Page 6: Chapter 1. General Information
They form the protection area boundary or zone. All two or three-phase short circuits and line- to-earth faults within this protection area are detected by the ESDR 4 as fault currents which initiate tripping.The unit does not trip if fault currents occur outside the protection zone. In this way, a selective protection is guaran- teed. -
Page 7: Chapter 2. Electrostatic Discharge Awareness
CAUTION To prevent damage to electronic components caused by improper handling, read and observe the pre- cautions in Woodward manual 82715, Guide for Handling and Protection of Electronic Controls, Printed Circuit Boards, and Modules. © Woodward Page 7/35... -
Page 8: Chapter 3. Wiring
Manual 37137B ESDR 4 - Current Differential Protection Relay Chapter 3. Wiring CAUTION A circuit breaker must be provided near the unit and in a position easily accessible to the operator. This must also bear a sign identifying it as an isolating switch for the unit. -
Page 9: Wiring Diagram
Manual 37137B ESDR 4 - Current Differential Protection Relay Wiring Diagram ≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡ Current IL1 transducer set 2 Current IL2 transducer set 2 Blocking Current IL3 transducer set 2 Acknowledgement Configuration Common 0 Vdc 24 Vdc Relay 4 Warning Relay 3... -
Page 10: Power Supply
Manual 37137B ESDR 4 - Current Differential Protection Relay Power Supply ≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡ 24 Vdc (+/-25 %) 24 Vdc Power supply Figure 3-2: Power Supply Terminal Description +24 V DC, 10 W 2.5 mm² 0 Vdc reference voltage 2.5 mm² Page 10/35... -
Page 11: Measuring Inputs
Manual 37137B ESDR 4 - Current Differential Protection Relay Measuring Inputs ≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡ WARNING Before detaching the secondary current transformer connections or those on the unit, you should en- sure that the current transformer secondary is short-circuited. NOTE One side of the secondary of all CTs must be earthed. The earth connection should be made on the side of the secondary facing the protected object. -
Page 12: Discrete Inputs
Manual 37137B ESDR 4 - Current Differential Protection Relay Discrete Inputs ≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡ 18 to 250 V (ac/dc) Signal device Configuration Signal device Acknowledgment Signal device Blocking Figure 3-4: Discrete inputs Terminal Associated Description common (according to DIN 40 719 section 3, 5.8.3) -
Page 13: Relay Outputs
Manual 37137B ESDR 4 - Current Differential Protection Relay Relay Outputs ≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡ max. 250 Vac Relay output external device external device Relay output external device external device Relay output external device Figure 3-5: Relay outputs Description Terminal Root Make-contact Relay 3 – Ready for operation 2.5 mm²... -
Page 14: Chapter 4. Functional Description
They form the protection area boundary or zone. All two or three-phase short circuits and line- to-earth faults within this protection area are detected by the ESDR 4 as fault currents which initiate tripping.The unit does not trip if fault currents occur outside the protection zone. In this way, a selective protection is guaran- teed. -
Page 15: Functional Description
Manual 37137B ESDR 4 - Current Differential Protection Relay Functional Description ≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡ Monitoring of the Differential Current The monitoring of the differential current is carried out in two stages.. The first monitoring level serves as a warning and can be enabled or disabled. Should the adjustable warning characteristic be exceeded, a text appears in the display and a relay contact is enabled. -
Page 16: Figure 4-2: Characteristic
Manual 37137B ESDR 4 - Current Differential Protection Relay Figure 4-2: Characteristic Page 16/35 © Woodward... -
Page 17: Control Inputs
Manual 37137B ESDR 4 - Current Differential Protection Relay Control Inputs Configuration When this input is energized, the unit locks into Configuration mode and stays in this Terminal 17 mode until the terminal is de-energized. Acknowledgement If this input remains energized for at least 1 s, the faults detected in monitoring Terminal 18 level 2 are reset. -
Page 18: Chapter 5. Display And Operating Elements

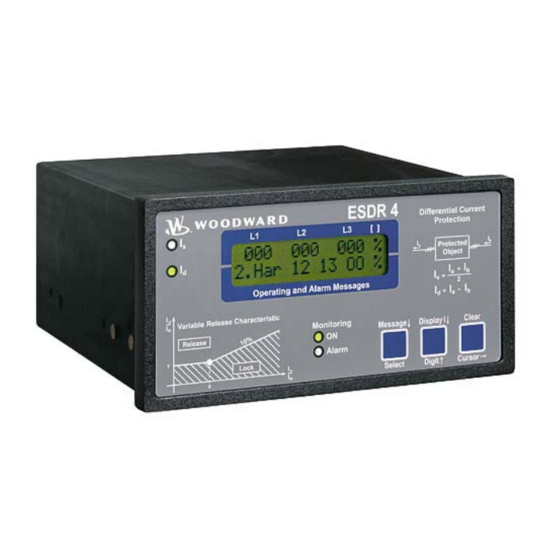

Manual 37137B ESDR 4 - Current Differential Protection Relay Chapter 5. Display and Operating Elements The foil covering of the front panel consists of coated plastic. All keys comprise of touch sensitive membrane elements. The display is a Liquid Crystal display (LC-display), comprised of two rows of text that are 16 charac- ters each and indirectly illuminated (green). -
Page 19: Leds
Manual 37137B ESDR 4 - Current Differential Protection Relay LEDs ≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡ Restraint current I Color: green The actual values of the restraint current I are visible in the display Differential current I Color: green The actual values of the differential current I are visible in the display. -
Page 20: Lc Display
Manual 37137B ESDR 4 - Current Differential Protection Relay Display V↓ / Digit↑ Display V↓ / Digit↑ Automatic mode: Display V↓ -By pressing this button, the actual values of the restraint current I and the differential current I are shown alternately in the top line of the display (the LEDs indicate which is being currently displayed). -
Page 21: Chapter 6. Configuration
Manual 37137B ESDR 4 - Current Differential Protection Relay Chapter 6. Configuration Introduction ≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡ When in configuration mode (simultaneous pressing of "Digit↑" and "Cursor→"), the configuration screen can be advanced by pressing the "Select" button. Should there be no entry, parameter change or other action for 60 seconds, the unit will automatically revert into Automatic mode. -
Page 22: Basic Data
Manual 37137B ESDR 4 - Current Differential Protection Relay Basic Data ≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡ Configuration mode "Select" button adjust settings [press "SELECT"] Pressing the "Select" key activates the configuration mode, and the following pa- rameters can be enabled or changed within the given limits. Please you note that as you advance through the configuration screens, by configuring some parameters as "ON", additional screens must be configured relating to that parameter. -
Page 23: Monitoring
Manual 37137B ESDR 4 - Current Differential Protection Relay Monitoring ≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡ Monitoring ON/OFF monitoring ON....Monitoring of the differential current is active and the follow- ingscreens of this option are displayed. OFF....The monitoring is de-activated and the following screens are not dis- played. - Page 24 Manual 37137B ESDR 4 - Current Differential Protection Relay Delay for automatic reset of error text 1 to 60 s automatic reset error text Only visible when the screens "Automatic reset of the relay" and "Automatic reset of error text" are configured to ON The fault text will automatically delete, when the fault conditions are no longer de- tected for the time period set here.
-
Page 25: Chapter 7. Commissioning
Manual 37137B ESDR 4 - Current Differential Protection Relay Chapter 7. Commissioning DANGER - HIGH VOLTAGE When commissioning the control, please observe all safety rules that apply to the handling of live equipment. Ensure that you know how to provide first aid in the event of an uncontrolled release of en- ergy and that you know where the first aid kit and the nearest telephone are. - Page 26 Manual 37137B ESDR 4 - Current Differential Protection Relay Testing with cyclical swapping With the system off, the secondary connections of the CTs should be rotated between phases. Turn the system on and increase the excitation to gradually increase the load current. .
-
Page 27: Appendix A. Dimensions
Manual 37137B ESDR 4 - Current Differential Protection Relay Appendix A. Dimensions 72.0 mm 144.0 mm 16.5 mm 143.0 mm 50.0 mm 46.5 mm ø5.6 mm ø5.8 mm ø4.0 mm ø4.0 mm 25 26 28 29 30 31 32 33... -
Page 28: Appendix B. Technical Data
Manual 37137B ESDR 4 - Current Differential Protection Relay Appendix B. Technical Data Measurements, Currents ---------------------------------------------------------------------------isolated Measured currents (Nominal value I )..........[1] ../1 A, or [5] ../5 A Measuring frequency ................... 40.0 to 70.0 Hz Accuracy ........................Class 1 Linear measuring range.....................5.0 ×... -
Page 29: Appendix C. List Of Parameters
Manual 37137B ESDR 4 - Current Differential Protection Relay Appendix C. List of Parameters Unit number P/N _____________________________ Rev _______________________________ Version ESDR4 _______________________________________________________________ Project _____________________________________________________________________ Serial number S/N _______________ Date ______________________________ Parameter Setting Range Default Customer Settings BASIC DATA SPRACHE/LANGUAGE... -
Page 30: Appendix D. Service Options
≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡ If a control (or any part of an electronic control) is to be returned to Woodward for repair, please contact Wood- ward in advance to obtain a Return Authorization Number. When shipping the unit(s), attach a tag with the fol- lowing information: •... -
Page 31: Packing A Control
Stuttgart [+49 (0) 711-789 54-0]. They will help expedite the processing of your order through our distributors or local service facility. To expedite the repair process, contact Woodward in advance to obtain a Return Authoriza- tion Number, and arrange for issue of a purchase order for the unit(s) to be repaired. No work can be started until a purchase order is received. -
Page 32: How To Contact Woodward
+49 (0) 711-789 54-100 E-mail: sales-stuttgart@woodward.com For assistance outside Germany, call one of the following international Woodward facilities to obtain the address and phone number of the facility nearest your location where you will be able to get information and service. Facility... -
Page 33: Engineering Services
ESDR 4 - Current Differential Protection Relay Engineering Services ≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡ Woodward Industrial Controls Engineering Services offers the following after-sales support for Woodward prod- ucts. For these services, you can contact us by telephone, by e-mail, or through the Woodward website. • Technical support •... -
Page 34: Technical Assistance
Manual 37137B ESDR 4 - Current Differential Protection Relay Technical Assistance ≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡ If you need to telephone for technical assistance, you will need to provide the following information. Please write it down here before phoning: Contact Your company____________________________________________________ Your name_______________________________________________________... - Page 35 Phone +49 (0) 711-789 54-0 • Fax +49 (0) 711-789 54-100 sales-stuttgart@woodward.com Homepage http://www.woodward.com/power Woodward has company-owned plants, subsidiaries, and branches, as well as authorized distributors and other authorized service and sales facilities throughout the world. Complete address/phone/fax/e-mail information for all locations is available on our website (www.woodward.com).
