2. Use a #3 Phillips screwdriver to remove the four screws that attach the sides to the

library chassis (Figure 7).

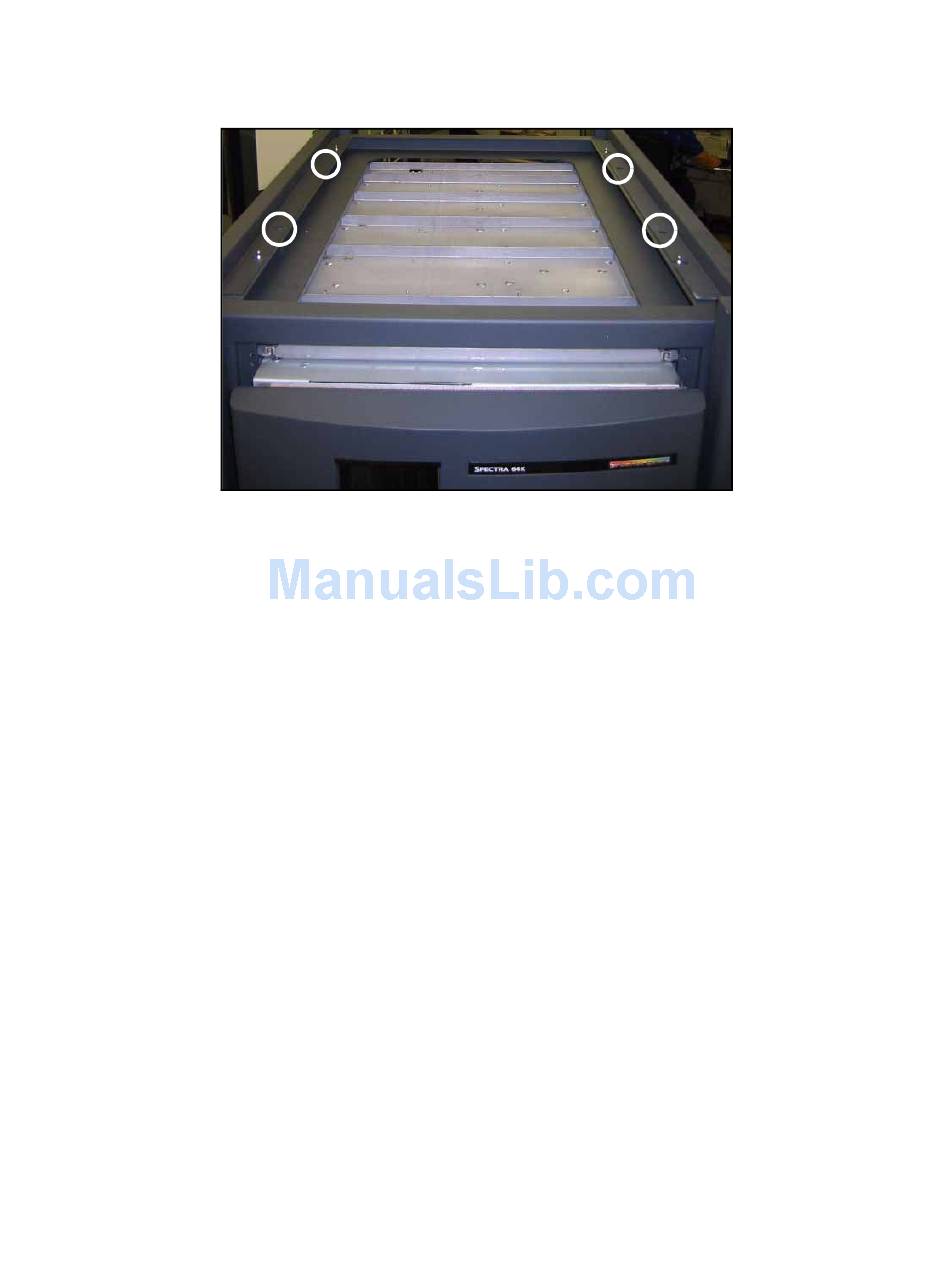

Figure 7 Remove four screws attaching the side panels to the library chassis.

3. After the screws have been removed, the side panels are still snapped into place.

Pull off each side panel and set it aside for later replacement.

4. Return to Remove the Front and Rear Kick Plates on page 6 to complete the

procedure.
