Assemble the Drive Sled
1. Assemble all parts on your work surface (Figure 1).

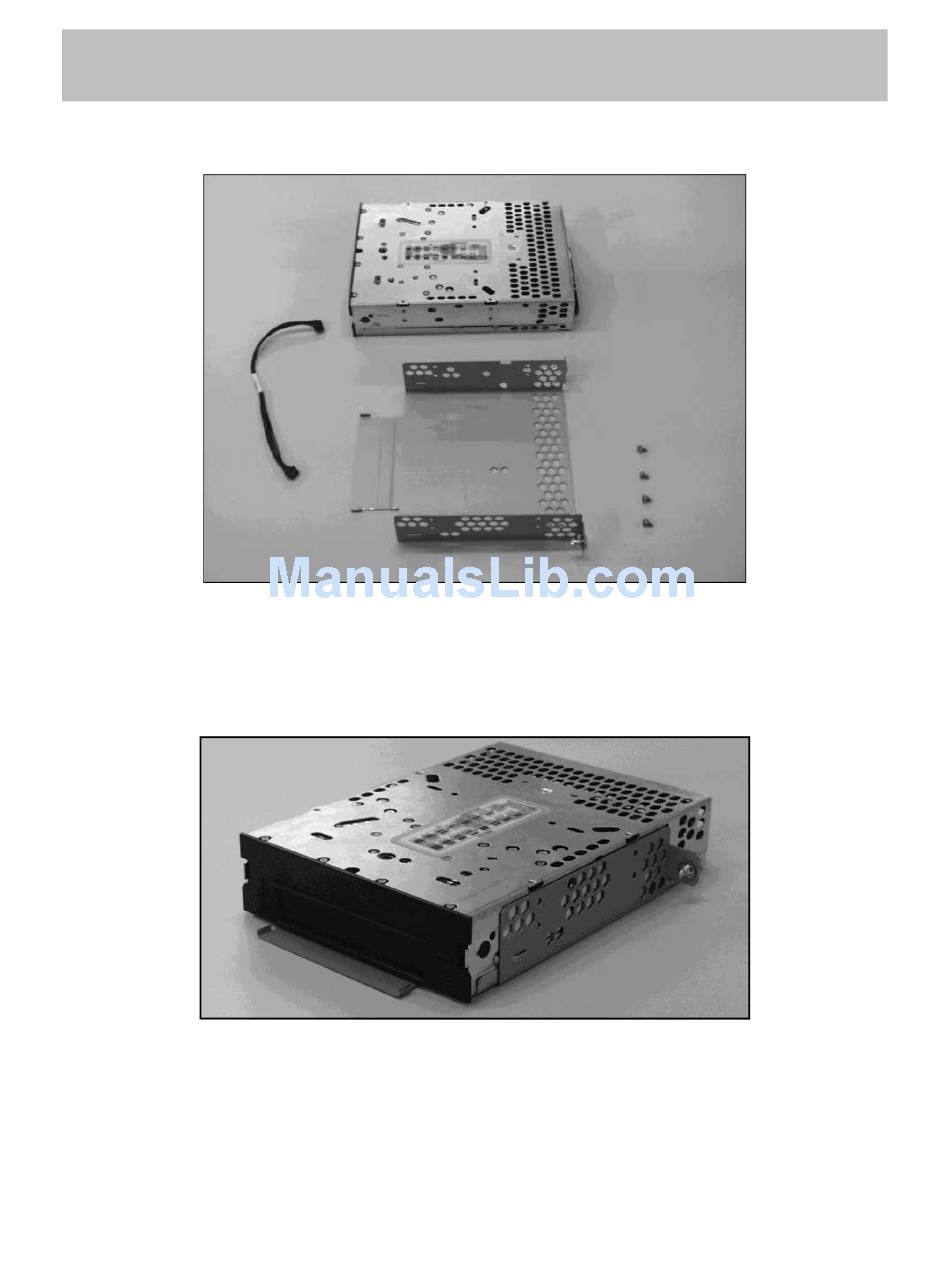

Figure 1 Drive sled assembly parts.
2. Align the Mammoth-2 drive in the drive sled so the drive door is facing the drive
sled's front lip and the SCSI ID Settings label is visible at the top of the assembly
(Figure 2).
Figure 2 Align the Mammoth-2 in the Drive Sled.
3. The drive sled has two screw holes at the top of each side. Position the drive so its
screw holes are aligned with the drive sled's screw holes.
