Perfect Prime IR0018 Instruction Manual

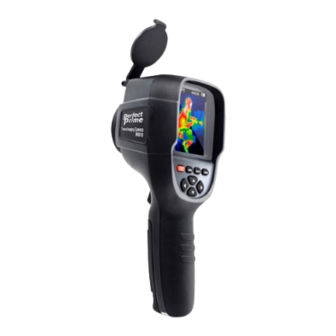

Thermal imaging camera
Hide thumbs Also See for IR0018:
Table of Contents

Advertisement

Quick Links

Download this manual
Thermal Imaging Camera
IR0018 New Version
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IR0018 and is the answer not in the manual?

Questions and answers

Related Manuals for Perfect Prime IR0018

Summary of Contents for Perfect Prime IR0018

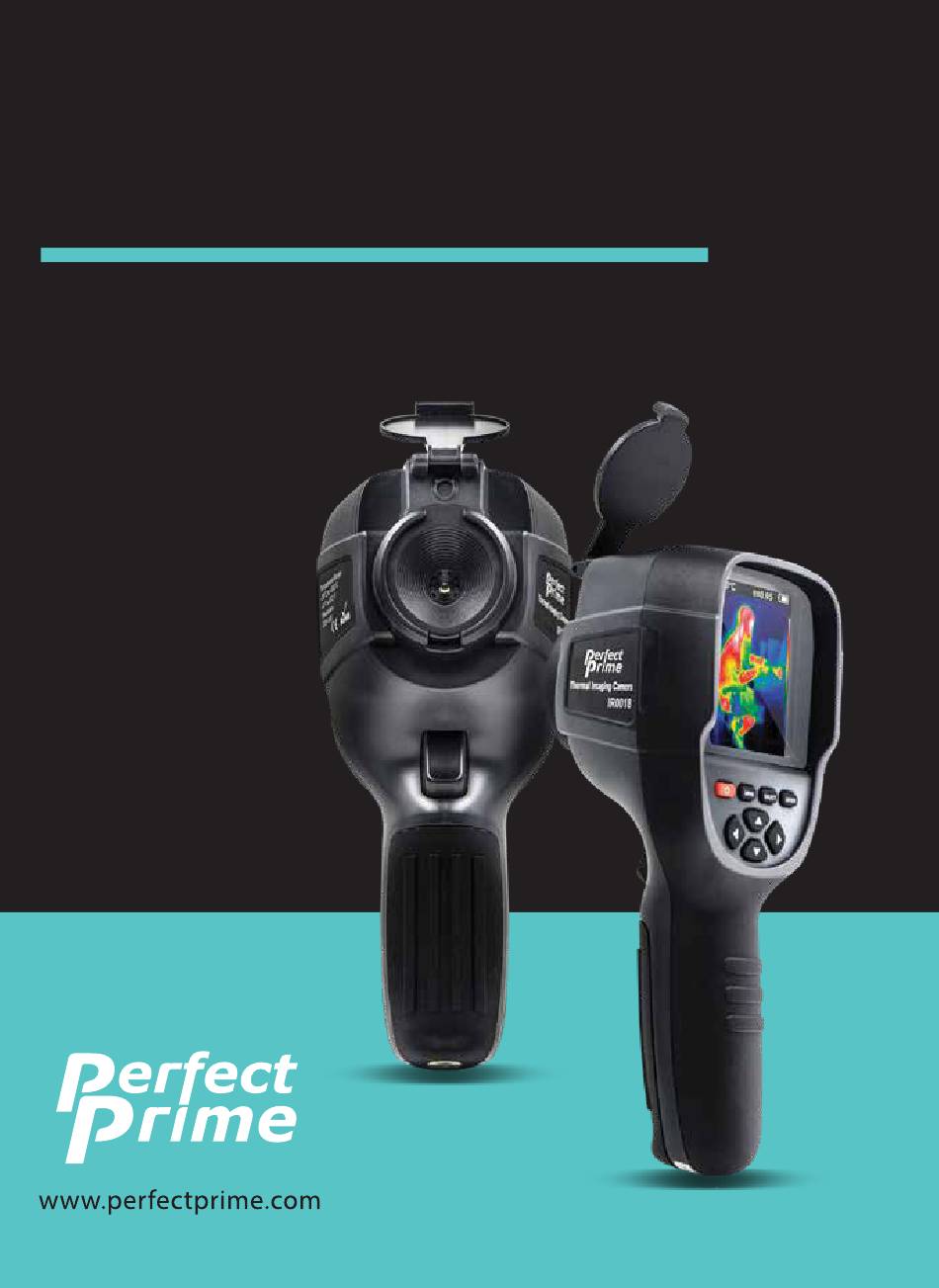

  • Page 1 Thermal Imaging Camera IR0018 New Version Instruction Manual...

  • Page 2: Table Of Contents

    Contents 1. Preface ................2 2. Safety Instruction ............2 - 5 3. Preliminary Acquaintance with Infrared ........6 Thermal Imager 4. Overview ................ 7 5. Cleaning of the Products ............. 8 6. Lens Maintenance ............. 8 7. Charging of the Battery and Description ........

  • Page 3: Preface

    1. Preface 2. Safety Instruction 1. Preface Respected users: How are you! Thank you for purchasing our instrument. In order to use it in a better manner, we remind you to read the instruction for use carefully before use and keep it properly so as to look up in the future use. 2.
  • Page 4 2. Safety Instruction Warning The warning describes the acts that may cause harm to users. Please observe the following operation in order to avoid electric shock or personal injury. If the product case is damaged, don’t use it continuously. Please contact the local distributors or agents of the company under such condition.
  • Page 5 2. Safety Instruction Please ensure that the plug of the adapter is inserted into the specified power socket. The adapter plug may be di erent due to the regions. Please make con rmation whether the speci cation of the adapter is consist with the speci cation of electric appliances in your region.
  • Page 6 2. Safety Instruction Don’t use abradant, isopropanol or solvent to clean the enclosure of the device. Such operation may cause the product case to be damaged. The product temperature may increase after a long time of charging. You may feel scorching heat when the hands touch the sensors. Problem caused by water condensation.

  • Page 7: Preliminary Acquaintance With Infrared Thermal Imager

    3. Preliminary Acquaintance with Infrared Thermal Imager For a long time, infrared thermal imaging detection technology has become an important means to ensure Industrial safety in developed countries. The application eld includes electric power, metallurgy, petro-chemistry, machinery,coal, tra c, re control and national defense, etc. It can not only carries out real-time detection at high voltage, high current and high speed operation to perform real-time detection for production and instrument but also need not power o the power supply, stop the machine or stop the...

  • Page 8: Overview

    4. Overview This product is an infrared camera that integrates surface temperature measurement and real-time thermal image. The traditional inferred thermometer needs to measure every component one by one while it is not necessary for infrared imaging camera, thus saving time. The potential problems may be displayed on color display screen clearly.

  • Page 9: Cleaning Of The Products

    5. Cleaning of the Products 6. Lens Maintenance 5. Cleaning of the Products The shell of this product is cleaned with a damp cloth or diluted soapy water. Do not use abrasives, isopropyl alcohol or solvents to clean the lens and screen.

  • Page 10: Charging Of The Battery And Description

    7. Charging of the Battery and Description 8. Battery Installation 7. Charging of the Battery and Description Use USB data line to charge: The product has built-in chargeable lithium batteries. • When the battery level is low, the top right of the screen will display •...

  • Page 11: Performance Index

    9. Performance Index IR0018 New Version Model Infrared 256×192 resolution 56°×42° Field angle Temperature -20 to +550°C measurement (-4°F to 1022°F) range Infrared Vanadium Oxide Uncooled Infrared Focal Plane detector type Thermal imaging ≤25Hz frame rate Focus mode Fixed ≤50mK @25°C,@F/1.0...
  • Page 12 9. Performance Index Built-in 8G (Actually available 6.6G) Device storage Storage Image/ JPG/MP4 Video Format Image/video USB connection to computer export export methodt Image analysis Support o ine analysis on PC function Menu language English、 Chinese、 Italian、 German Battery Type Dedicated removable rechargeable lithium battery Battery capacity 2000mAh...

  • Page 13: Product Description

    10. Product Description 1. Instruction to Structure Display screen Keypad Handheld P.12...
  • Page 14 10. Product Description Type-C USB Please open the cap in use 2. Display Description Temperature range Current emissivity Central point Battery power temperature Color code The highest temperature Temperature cursor cursor at central point The lowest temperature Maximum cursor value/minimum value of eld Time temperature...
  • Page 15 10. Product Description The range of temperature measurement. Temperature range: Used to mark the color corresponding to the relative temperature Color code: from low to high in the eld of version. Used to indicate the central position The central point temperature cursor: in the screen area.

  • Page 16: Initial Operation

    11. Initial Operation Product boot/shutdown Press and hold the “ ” button for more than 3 seconds to turn the Thermal Imaging on or o . LCD screen display After turning on the power, open the lens protection cover, as shown in the screen shows the thermal imaging status.
  • Page 17 11. Initial Operation Image output The saved images through capture may be checked and output by connecting with a computer through Type-C USB. Read images Open the USB protective cover as shown in . Use USB line to connect the USB port and then computer to read the images or save it into computers images or save it into computers.

  • Page 18: Introduction To The Menu

    12. Introduction to the Menu Press the left of “ MENU ” key and the menu bar appears. They are “Image registration”, “Images”,“Videos”, “Color palette”, “Emissivity” and “Settings” submenus. 1. “Image Registration” Submenu 1.1. Description of Image Overlapping Image overlapping makes it easier for users to understand the infrared images by using aligned visible images and infrared images.

  • Page 19: Introduction To "Image" Sub-Menu

    12. Introduction to the Menu 2. Introduction to “Images” Sub-menu 2.1. View Image Press the “ MENU ” button to enter the main menu, and select “ ” (images) in the main menu. 171229-105030 171229-105031 171229-105032 171229-105033 As shown in the gure, Then press “ ”...

  • Page 20: Introduction To "Video" Submenu

    12. Introduction to the Menu 2.2. Delete Images When viewing the images, the screen will show the prompt of “Delete photo” by pressing “ ” key. If “Yes” is selected at the moment, press “ MENU ” key to determine to delete the image. If “No” is selected, press “ SELECT ” key to determine not to delete the image.

  • Page 21: Introduction To "Color Palette" Sub-Menu

    12. Introduction to the Menu 3.2. Delete Video When viewing the video (if it is not playing), press the “ ” button, and the prompt “Delete video?” will appear on the screen. If you want to select “Yes” at this time, please press the “ MENU ” key to con rm the deletion of the video.
  • Page 22 12. Introduction to the Menu 4.2. Application of Color Palette As shown in the gure, press “ MENU ” key to enter the main menu and select “ ” (color palette) option and press “ ” key to enter the color palette list.

  • Page 23: Introduction To "Emissivity" Sub-Menu

    12. Introduction to the Menu 5. Introduction to “Emissivity” Sub-menu 5.1. Emissivity Description The emissivity of the product can be adjusted from 0.01 to 1.00 with the default value of 0.95. Many common objects and materials (such as timber, water, skin and textile fabric) can re ect the heat energy e ectively. So it is easy to obtain relatively correct measurement value.
  • Page 24 12. Introduction to the Menu The operating step is as the following: Emissivity Matt (e=0.95) Semi-matt (e=0.85) Semi-glossy (e=0.60) Glossy (e=0.30) Custom 0.01 As shown in the gure, press “ MENU ” key to enter the main menu and select “ ”...
  • Page 25 12. Introduction to the Menu 5.3. The Emissivity Value of Common Materials Substance Thermal radiation Substance Thermal radiation 0.90~0.98 Black cloth 0.98 Bitumen 0.94 0.98 Human skin Concrete 0.96 0.75~0.80 Foam Cement Charcoal 0.90 0.96 Sand dust 0.92~0.96 0.80~0.95 Earth Paint 0.92~0.96 0.97...

  • Page 26: Introduction To "Setting" Sub-Menu

    12. Introduction to the Menu 6. Introduction to “Settings” Sub-menu Press “ MENU ” key to select the “ ”(settings) option in the main menu. Press “ ” key again to enter the “setting” sub-menu. SETTINGS Auto 5min Auto shutdown shutdown 20min Intensity...
  • Page 27 12. Introduction to the Menu 6.1. Auto Shutdown Setting After entering the "Settings" sub-menu, select “ ” (auto shutdown), press navigationThe “ ” button in the button enters the auto power o setting. Can be set to not automatically shut down or 5 points The clock is turned o or turned o in 20 minutes.
  • Page 28 12. Introduction to the Menu 6.7. Time Setting As shown in the gure, after selecting “ ” (set time), press “ ” in the navigation key to enter the setting time. Set time Year 2020 Month Hour Minute Second Press “ ”/“...
  • Page 29 12. Introduction to the Menu 6.8. Enable/Disable of the Highest and Lowest Temperature Cursor As shown in the gure, after selecting “ ” (spot), press the “ ” button in the navigation key to enter the cold hotspot setting. Spot Press “...

  • Page 30: Thermal Imaging Image Analysis Software Operation Guide

    13. Thermal Imaging Image Analysis Software Operation Guide Software Installation And Operation Connect the product with a USB cable, and then connect to the computer. Open the removable disk in the computer, nd the "INSTALLATION PACKAGE" folder and open it, and click to install the software.
  • Page 31 13. Thermal Imaging Image Analysis Software Operation Guide Interface Introduction Select the language in the upper right corner of the interface, you can choose Chinese, English, and switch between the two languages. On the right are shown as: fusion rate, color palette, temperature unit, picture information Fusion rate: Moving the slider can realize the fusion of visible light image •...
  • Page 32 13. Thermal Imaging Image Analysis Software Operation Guide Icon Introduction " " icon, take the temperature of the thermal image. " " icon, select the maximum temperature and minimum temperature of the thermal image in a straight line. " " icon, select the thermal imaging map to select the maximum temperature and minimum temperature.
  • Page 33 For B2B or project-based application, please send an email: sales@perfectprime.com FOR MORE INFORMATION ABOUT PERFECT PRIME PLEASE VISIT OUR ABOUT US PAGE AND FEEL FREE TO BROWSE. 製品マニュアルページのQRコードをスキャンする （特定の製品で利用可能な多言語） Scan QR Code for the Product Manual page...
  • Page 34 Tyche Smart Limited Retailer Email cs@perfectprime.com 2nd Floor, 107 Charterhouse Street, EC1M 6HW, London, Address England UNITED KINGDOM +44 203 7695377 Telephone...
