Perfect Prime IR0005 Instruction Manual

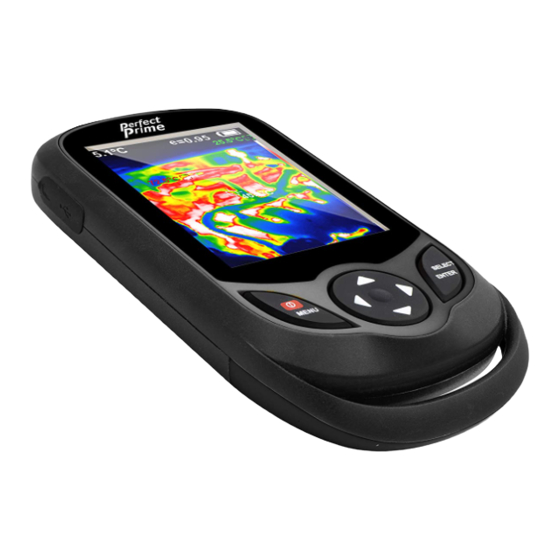

Thermal imaging camera
Hide thumbs Also See for IR0005:
Table of Contents

Advertisement

Quick Links

Download this manual

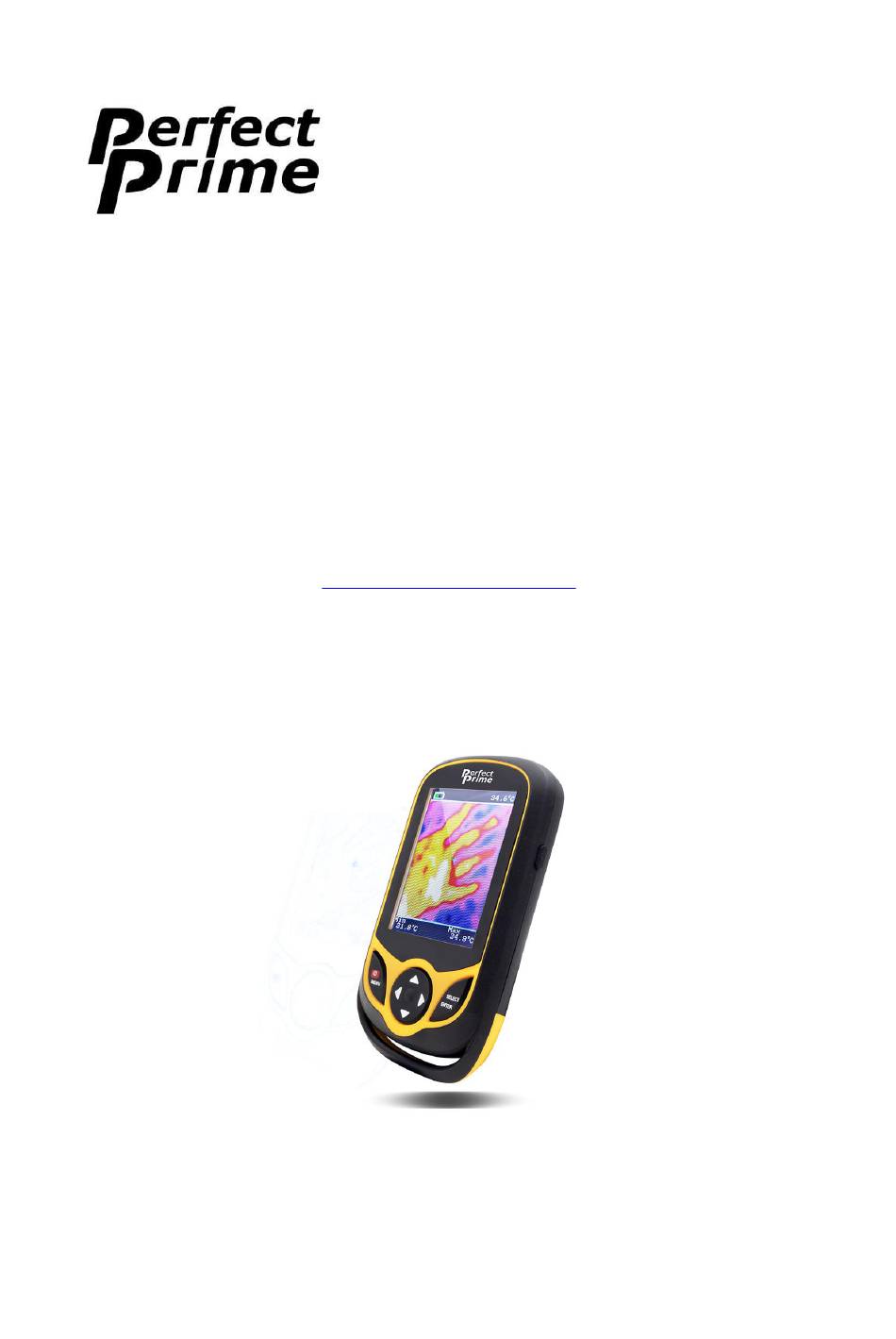

Thermal Imaging
Camera
Instruction Manual: IR0005
www.perfectprime.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IR0005 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Perfect Prime IR0005

Summary of Contents for Perfect Prime IR0005

  • Page 1 Thermal Imaging Camera Instruction Manual: IR0005 www.perfectprime.com...

  • Page 2: Table Of Contents

    Contents 1. Overview---------------------------------------------------------------------------------------3 2. Considerations and Safety Maintenance---------------------------------------------------4 3. Performance Index----------------------------------------------------------------------------5 4. Product features-------------------------------------------------------------------------------6 5. Initial Operation-------------------------------------------------------------------------------8 6. Introduction to “Setting” Sub-menu--------------------------------------------------------9 7. Color Palette----------------------------------------------------------------------------------10 8. Application of Color Palette and Image Check/Deletion-------------------------------11 9. Time Setting----------------------------------------------------------------------------------12 10. Capture Thermal Points-------------------------------------------------------------------12 11.

  • Page 3: Overview

    7. Night vision: Measuring the electromagnetic energies given off when objects emit heat, the IR0005 translates those energies into visible light for users to see them in the dark. 8. Building inspection: Check that heat is retained uniformly in a building.

  • Page 4: Considerations And Safety Maintenance

    2. Considerations and Safety Maintenance Please read the instructions carefully so as to ensure accurate measurement results and safety:  Do not use the device in explosive, flammable or corrosive environments.  Since the product is a precision electronic and sensitive optical device. Do not drop it or allow impacts to occur to prevent damage.

  • Page 5: Performance Index

    Product size (length × width × height) 140 mm× 80 mm× 28 mm Product Weight 208g Work temperature 0°C - 45°C Storage temperature -20°C - 60°C Relative humidity < 85％RH LWIR: thermal infrared radiation Wavelength coverage of thermal infrared radiation of IR0005...

  • Page 6: Product Features

    4. Product Description 4.1. Instruction to structure Infrared imaging sensor LED lighting lamp Visible light camera Image capture key Micro USB Back...
  • Page 7 4.2. Key description Battery power Central point temperature Current emissivity Cold point temperature cursor Color code Temperature cursor at central point Hot point temperature cursor Maximum /minimum value Time of field temperature Central point temperature cursor This pointer will always remain at the centre of the screen and allow the user to move the camera to identify the temperature of where they point.

  • Page 8: Initial Operation

    ” to hide the bottom bar of the screen which shows the maximum /minimum value and time of the field temperature. Press “ ” again to display the bottom bar. Image export: use the Micro USB cable to connect the IR0005 to a computer to transfer the files.

  • Page 9: Introduction To "Setting" Sub-Menu

    6. Introduction to “Setting” Sub-menu Auto shutdown Display intensity Language Unit Time format Set time Spot...

  • Page 10: Color Palette

    7. Color Palette The menu of color palette can change the false color on the display screen or capture infrared image. There are five types of color palettes provided: rainbow, iron oxide red, cold color, black & white and white & black. Suitable selection of color palette displays the details of the target objective better: 1.

  • Page 11: Application Of Color Palette And Image Check/Deletion

    8. Application of Color Palette and Image Check/Deletion 8.1. Application of color palette . Press “ /MENU” key to enter the main menu. . Select “color palette”and press “ ” to enter the color palette list. . Press “ ” and “ ”...

  • Page 12: Time Setting

    4. Press “ ”/“ ” to check the previous/next image. 5. Press “SELECT/ENTER” key to return. Press “ /MENU” key to exit. 6. Image deletion: during image checking, press “ ” key and the deletion mode appears. Press “ /MENU” key to delete images or press “SELECT/ENTER” key to cancel deletion.

  • Page 13: Measure Objects

    11. Measure Objects According to the characteristics of the objects and surfaces to be measured, users may select corresponding measurement modes or enter “advanced” option to adjust the value of emissivity (please refer to the table of “emissivity of common materials”). The operating step is as the following: 1.

  • Page 14: Emissivity

    12. Emissivity The emissivity of the surface of a material is its effectiveness in emitting energy as thermal radiation. The emissivity of the product can be adjusted from 0.10 to 1.00 with the default value of 0.95. Many common objects and materials (such as timber, water, skin and textile fabric) can reflect the heat energy effectively, so it is easy to obtain high accuracy.
