Perfect Prime IR0280H Instruction Manual

Thermal imaging camera for human body temperature
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

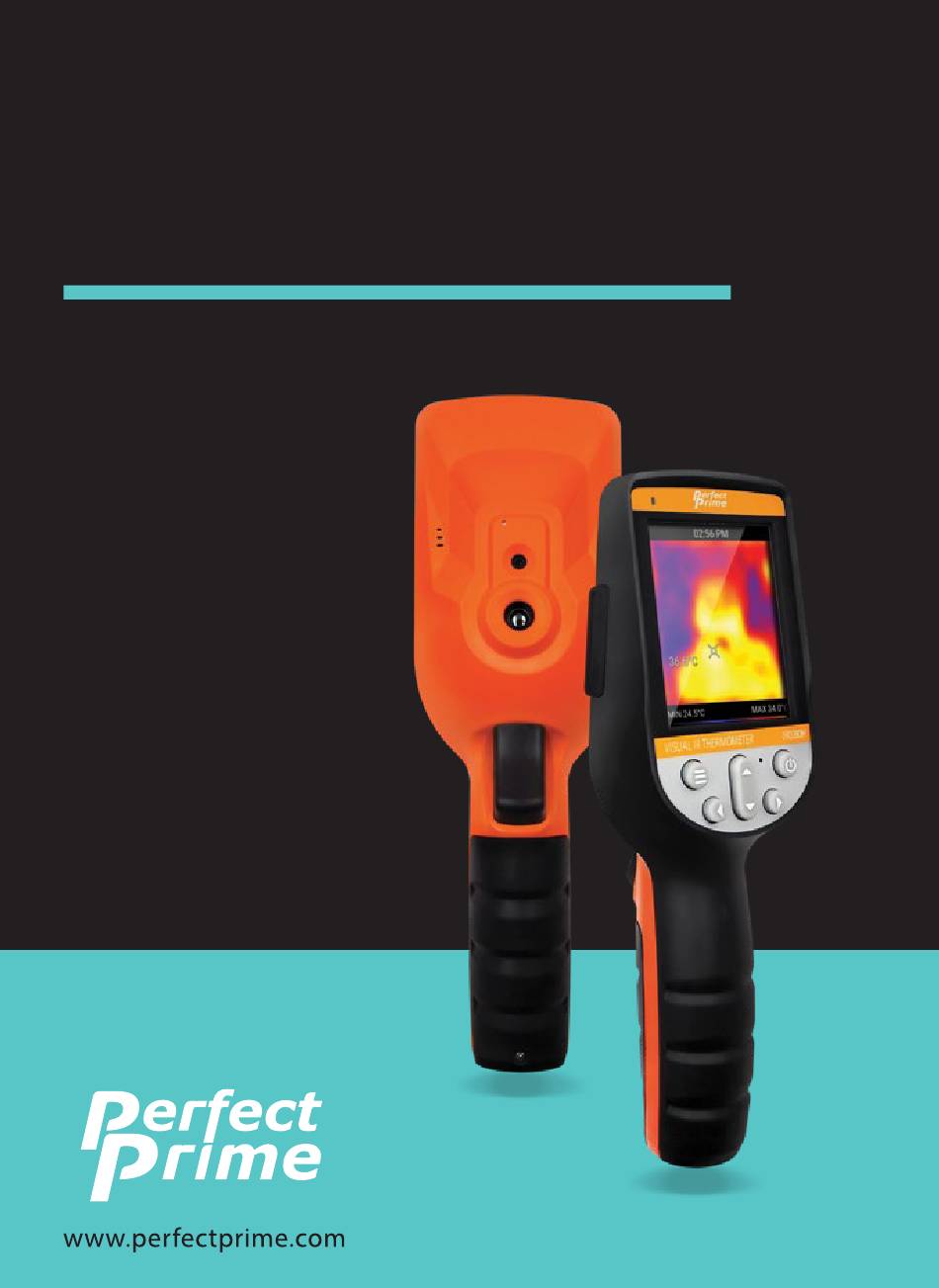

Thermal Imaging Camera
IR0280H
(for Human Body Temperature)
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IR0280H and is the answer not in the manual?

Questions and answers

Related Manuals for Perfect Prime IR0280H

Summary of Contents for Perfect Prime IR0280H

  • Page 1 Thermal Imaging Camera IR0280H (for Human Body Temperature) Instruction Manual...

  • Page 2: Table Of Contents

    Contents 1. Overview ............2 - 4 2.

  • Page 3: Overview

    1. Overview IR0280H Thermal Camera is a body temperature thermometer with thermal imaging, which have two types of measurement modes: Human body temperature measurement, and object surface temperature measurement. Object surface temperature measure- ment mode: It can e ectively detect the temperature changes and perform accurate temperature measurement on the target surface.
  • Page 4 1. Overview Turn on the device and start measuring 3. Easy to use: temperature right away. The IR0280H has the capabilities to take both 4. Image & Video: images and videos, making it easier for users to analyze the situation.
  • Page 5 1. Overview 7. Night vision: Measuring the electromagnetic energies given o when objects emit heat, the IR0280H translates those energies into visible light for users to see them in the dark. 8. Building inspection: Check that heat is retained uniformly in a building.

  • Page 6: Safety & Considerations

    2. Safety & Considerations Please read the instructions carefully so as to ensure accurate measurement results and safety: DANGER Do not use device in explosive, Do not dismantle the product, ammable or corrosive doing so can damage it and environment. revoke the warranty.

  • Page 7: Product Features

    3. Product Features VISUAL IR THERMOMETER IR0280H Menu Button Visible Light Camera Up, Down, Left and Thermal Camera Right Keys Measure Button Power Button USB Port & SD Card Slot...

  • Page 8: Product Specifications

    4. Product Speci cations Display Screen 2.8" LCD Color Display Infrared Image Resolution 32 x 32 (1,024 Pixels) Visible Image Resolution 0.2 Mega Pixels Field Angle / Shortest Focus 33° x 33°/0.1m Length Body Temperature Range 32°C~42°C (89.6°F~107.6°F) Measuring Accuracy ±...
  • Page 9 4. Product Speci cations Mini USB Auto-Power off Time Selectable from 0 to 30 mins Product Size (Length x Width 215 x 55 x 62 mm x Height) Product Weight 230g Work Temperature -10 to 50°C Storage Temperature -20 to 60°C...

  • Page 10: Operation Flow

    5. Operation Flow Power ON: Press & Hold Power button for 2 sec. 5.1. Opening Screen Measurement (wait for Screen initialization) Power OFF: Press & Hold Power button for 2 sec. 5.2. • A pop-up • Use Up/down menu button to appears for select, and Power O or...
  • Page 11 5. Operation Flow The summary of Menu icons: Display Brightness: To set the brightness of display Date and Time: To set time and date Auto-Off Timer: To set the auto-o timer for the Display Fever Alarm: To set the fever temperature alarm Auto-monitor Alarm: To capture the thermal image when over the Temperature Alarm over a period of time Temperature Unit: To set temperature unit degree C°...
  • Page 12 5. Operation Flow 5.5. Measurement Screen Time & Emissivity Image View Area Object Temperature mark Palette guide bar included min/max object temperature - Press Menu button to enter Menu mode. - Press Up/Down to select image mode: Thermal Image, Visual Image, Overlay Image.
  • Page 13 5. Operation Flow - Press Right button to select zoom in or zoom out. - Press Measure button to capture image; Press & Hold Measure button to take video. If external SD card is not present, the image will be saved to the internal memory.

  • Page 14: Display Brightness

    5. Operation Flow 5.6. Display Brightness - Press Left/Right button to increase/ decrease the % of display brightness. - Press Measure to con rm. - Press Menu to return to the previous screen. 5.7. Date and time - Press Up/Down button to increase/decrease the selected item.

  • Page 15: Hi-Low Temperature Alarm

    5. Operation Flow 5.9. Hi-Low Temperature Alarm - Press Left/Right button to increase/ decrease the selected item. - Press Up/Down button to select the High or Low Temperature setting. - Press Measure to con rm - Press Menu to return to the previous screen.

  • Page 16: Temperature Unit

    5. Operation Flow 5.11. Temperature Unit - Press Left/Right button to select degree °C or degree °F. - Press Measure to con rm. - Press Menu to return to the previous screen. 5.12. Image Format - Press Left/Right to select BMP or JPG image format. - Press Measure to con rm.

  • Page 17: Color Palette

    5. Operation Flow Remark: a. When ON, exact maximum and minimum points and temperatures will both show on the measurement screen. b. When OFF (default), maximum and minimum temperatures will only show at the bottom of the measurement screen. 5.15. Color Palette - Press Up/Down button to select the color palette.

  • Page 18: View Images/Videos

    5. Operation Flow 5.17. View Images/Videos - Press Up/Down/Left/Right button to select Image Icon. - Press Measure to open image/video; Press and Hold Measure to delete selected item. - Press Menu to return to the previous screen. a) View Image or Video - For the video, press Measure.

  • Page 19: Image Overlay Adjusting

    5. Operation Flow 5.18. Deleted Images/Videos - Press Up/Down/Left/Right button to select Image Icon. - Press Measure to open the image or video; Press and Hold Measure to pop-up the recover or permanent delete menu. - Press Menu to return to the previous screen. a) Recover Image - Press and Hold Measure to pop-up the recover or permanent delete menu.

  • Page 20: Csv Files

    5. Operation Flow 5.20. CSV Files For every image you take, CSV Files of each image would be saved for you to analyze and generate reports. The le shows the temperature point of each 32 x 32 pixel. You can view these les in Internal Storage/SD Card -> DCIM ->...
  • Page 21 5. Operation Flow There are four types of object measurement mode: Coarse object (easy to give out energy)(0.95); Semi-matte object (0.80); Semi-shiny object (0.60); Shiny object (0.30); The table of Emissivity Table: Substance Thermal Substance Thermal radiation radiation Bitumen 0.90-0.98 Black cloth 0.98 Concrete...

  • Page 22: Body Temperature Mode

    5. Operation Flow 5.22. Body Temperature Mode - Press Menu button to enter the Menu Mode. - Select the Body temperature lter icon, and press measure to enter. - Press Measure to con rm and back to Menu mode. - Press Left/Right to Select ON or OFF for body temperature lter.

  • Page 23: Fever Image Capture

    5. Operation Flow - Press Left or Right to adjust the fever temperature alarm. - Select ON/OFF, and press measure to enter. - Press measure to con rm the fever alarm setting and back to menu mode. 5.24. Fever Image Capture - Press Left or Right to ON/OFF the Fever Image Capture.

  • Page 24: Thermal View

    5. Operation Flow 5.25. Thermal View Body Fever Alarm temperature Enabled lter ON 5.26. Body Temperature Filters Selections Press the Right button to switch between the following two lters: Mode 1 : White Box Mode - A rectangle shown on the screen is indicating the target measurement area which pointing to the forehead area is recommended.
  • Page 25 5. Operation Flow Remark : Precautions for body temperature measurement The best distance from the thermometer when measuring the • forehead temperature with a white box is between 30cm – 50cm. The best distance from the thermometer when measuring body •...
