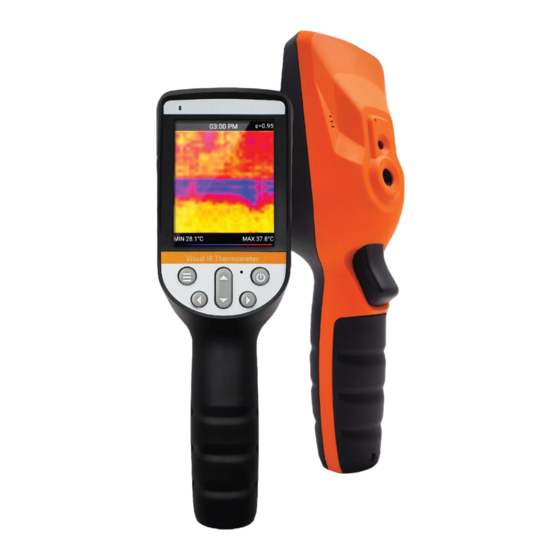

Summary of Contents for Perfect Prime IR0280
-
Page 2: Table Of Contents
Table of Contents: Overview………………………………………………………………….…. 2-3 Safety & Considerations…………………………………………….………….. 3 Product Features………………………………………….…………………….. 4 Product Specifications 1. Product Specifications………………………………….…….…………. 5 2. Thermal Image Specifications……………………………….……….…. 5 3. Software Features…………………………………………….…………. 5 Operation Flow 1. Power On………………………………………………..………………. 6 2. Power Off……………………………………………….………………. 6 3. Display Off (Sleep Mode)……………………………….……………..6 4. -
Page 3: Overview
IR0280. 3. Easy to use: Turn on the device and start measuring temperature right away. 4. Image & Video: The IR0280 has the capabilities to take both images and videos, making it easier for users to analyze the situation. -
Page 4: Safety & Considerations
Night vision: Measuring the electromagnetic energies given off when objects emit heat, the IR0280 translates those energies into visible light for users to see them in the dark. Building inspection: Check that heat is retained uniformly in a building. -
Page 5: Product Features
Product Features... -
Page 6: Product Specifications
Product Specifications Model no.: IR0280 Product Specifications Power Supply 3.7V Li-ion rechargeable battery, 2500mAh, Size 18650 Panel 2.8” color LCD display Touch Panel Resistive type Touch Panel Keys 7 keys (Power, Up/Down/Left/Right, Menu, Measure) Sensors 32 x 32 Thermal Array, Humidity Sensor, CMOS sensor... -
Page 7: Operation Flow
Operation Flow 1) Power ON: Press & Hold Power button for 2 sec Opening Screen (wait for initialization) Measurement Screen 2) POWER OFF: Press & Hold Power button for 2sec. A pop-up menu appears for Power Off or Reboot selection Use Up/down button to select, and press Measure button to confirm. -
Page 8: Menu Screen
4) Menu Screen: Press the Menu button to enter Menu mode The default selection is first icon (i.e. Display brightness) Use Up/Down/Left/Right button to select the icon. Then, press Measure button to open the selected item. Press Menu button to back to Measurement Screen The summary of Menu icons: Display Brightness To set the brightness of display... - Page 9 5) Measurement Screen Time & Emissivity Image View Area Object Temperature mark Palette guide bar included min/max object temperature Press Menu button to enter Menu mode. Press Up/Down to select image mode: Thermal Image, Visual Image, Overlay Image Thermal Image Visual Image Overlay Image Press Left button to select filter mode: Temporal filter, Wide Gaussian filter, No filter...
- Page 10 Press Measure button to capture image; Press & Hold Measure button to take video. If external SD card is not present, the image will be saved to the internal memory. If external SD card is present, the image will be saved to the SD card. The recording icon appear to indicate the video recording.
-
Page 11: Display Brightness
6) Display Brightness Press Left/Right button to increase/decrease the % of display brightness. Press Measure to confirm Press Menu to return to the previous screen. 7) Date and time Press Up/Down button to increase/decrease the selected item Press Left/Right button to select the item for change Press Measure to confirm Press Menu to return to the previous screen. -
Page 12: Auto-Monitor Alarm
Low Temperature Alarm High Temperature Alarm Palette guide (Blue color) Palette guide (Red color) Remark: a. The Hi-Low Temperature Alarm is OFF by default b. Press and Hold Measure button to turn ON or OFF the Hi-Low Temperature Alarm 10) Auto-Monitor Alarm Press Left/Right button to increase/decrease the selected item Press Up/Down button to select the Temperature or Duration. -
Page 13: Image Format
12) Image Format Press Left/Right to select BMP or JPG image format Press Measure to confirm Press Menu to return to the previous screen. 13) Factory Reset Press Left/Right button to select YES or NO Press Measure to confirm Press Menu to return to the previous screen. 14) Min/Max Crosshairs Min/Max ON Min/Max OFF... -
Page 14: Color Palette
15) Color palette Press Up/Down button to select the color palette Press Measure to confirm Press Menu to return to the previous screen. 16) Color palette guide Press Left/Right button to select ON or OFF Press Measure to confirm and back to the previous screen Press Menu to back to the previous screen. - Page 15 a) View Image or Video For the video, press Measure button to start the video Press Left/Right button for Previous/Next Image or Video Press Menu button to return to the previous screen Image Video b) View Image with touchable object temperature mark Original Image New movable temperature mark Touch the screen to show the temperature of that location.
-
Page 16: Delete Images/Videos
18) Deleted Images/Videos Press Up/Down/Left/Right button to select Image Icon Press Measure to open the image or video; Press and Hold Measure to pop-up the recover or permanent delete menu. Press Menu to return to the previous screen. a) Recover Image Press and Hold Measure to pop-up the recover or permanent delete menu. -
Page 17: Emmisivity
19) Emissivity Press Up/Down button to adjust the emissivity. Press Measure to confirm Press Menu to return to the previous screen. There are four types of object measurement mode: 1. Coarse object (easy to give out energy) (0.95); 2. Semi-matte object (0.80); 3. - Page 18 For more information about our products and services, please send us an email: cs@perfectprime.com For B2B or project-based application, please send an email: sales@perfectprime.com FOR MORE INFORMATION ABOUT PERFECT PRIME PLEASE VISIT OUR ABOUT US PAGE AND FEEL FREE TO BROWSE. 製品マニュアルページの QR コードをスキャンする （特定の製品で利用可能な多言語）...
