- Page 1 IR203 Thermal Camera For Apple iOS Devices Instruction Manual...
-
Page 2: Table Of Contents
Contents Overview App Download Product Specifications Symbol Definition Getting Temperature of a Point Choose Color Palette Enable Filters for Better Picture Quality Contour Detection (Beta, Experimental) Menu Settings 10. Recording Functions... -
Page 3: Overview

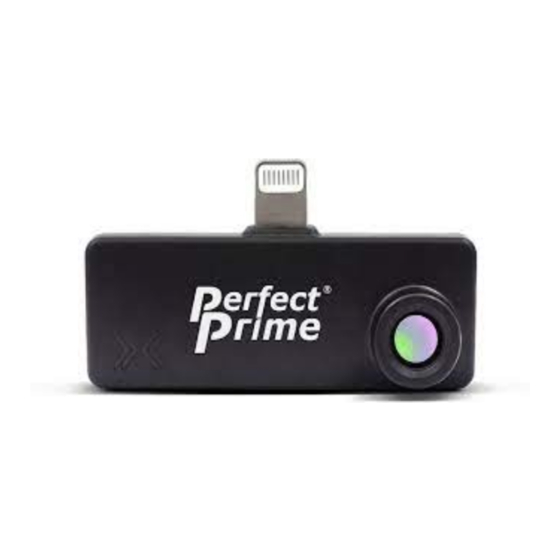

This Guide provides you all the information you will need to operate the IR203. Lightning Connector Thermal Camera The IR203 is powered by the host device, no charging or battery is needed... -
Page 4: App Download
2. App Download Scan the QR code below or enter the URL (https://apps.apple.com/t- n/app/senxorproviewer/id1541291250) to download the "SenXorPro- Viewer" application and install it (only supports iOS Phone system). QR Code... -
Page 5: Product Specifications
3. Product Speci cations 3.1. General 80 × 62 Resolution 44.2° (H), 34.5° (V) FOV (angles in degrees) 15 FPS Maximum frame rate -40°C to 1000°C Max scene temperature range 150mK NETD up to +/-1°C Accuracy 3.2. Environmental -20 - 85°C Operating temperature -40 - 85°C Storage temperature... -
Page 6: Symbol Definition
4. Symbol De nition You can download and install the Meridian SenXorProViewer App on Apple App Store. You need to install the App before you use the IR203. Settings Start/Stop Capture Contour Detector Image adjustments Mean temperature FPS Up/Down Contour Detector... -
Page 7: Getting Temperature Of A Point
5. Getting Temperature of a Point CrossHair The SenXorProViewer App allows the user to get the temperature of a particular point by touching the location on the thermal picture. The crosshair on the thermal picture indicates the selected X Y coordinates and the corresponding temperature is shown on the screen Point X Y and temperature... -
Page 8: Choose Color Palette
6. Choose Color Palette The SenXorProViewer App allows the user to choose preset color palettes to map temperature values to di erent colors, include grayscale, colors and combinations. 16 preset color palettes are provided for image visualization, temperature data is not a ected. Tap the palette list, select one of the palettes on the drop-down list and result will be applied to the new thermal image. -
Page 9: Enable Filters For Better Picture Quality
7. Enable Filters for Better Picture Quality The SenXorProViewer App supports the following types of image ltering that serve to improve the intrinsic noise of the detector: Temporal lters -- these work in reducing the temporal uctuation of individual detector pixels from one thermal frame to the next: •... -
Page 10: Contour Detection (Beta, Experimental)
8. Contour Detection (Beta, Experimental) The Contour Detection feature is for DEMO purpose only, not for medical advice or usage. The SenXorProViewer App supports an indicative contour detection as an experimental feature. The function is based on the detection of the hottest region within the captured image-- then display the mean of the hottest region. -
Page 11: Menu Settings
It quanti es the ability of an objects surface to emit long-wave infrared radiation and strongly a ects the temperature readout from the IR203. By default, the emissivity is set to 0.95 which is a representative value for many common objects with matt surface, as well as the human skin (in the range of 0.95 - 0.97). -
Page 12: Recording Functions
10. Recording Functions Save Video Button Thermal video can be stored to the camera roll by pressing the save button on the video streaming screen. To capture thermal photos, switch to photo mode and press the camera button. The photos captured are stored in the camera roll. - Page 13 CUSTOMER SERVICE INQUIRIES Your emails are important to us so we strive to reply all hours. In exceptional cases, inquiries and emails within we may require more time to respond. Thank you for your understanding. For more information about our products and services, please send us an email: cs@perfectprime.com For B2B or project-based application, please send an email:...
