Summary of Contents for Perfect Prime IR202

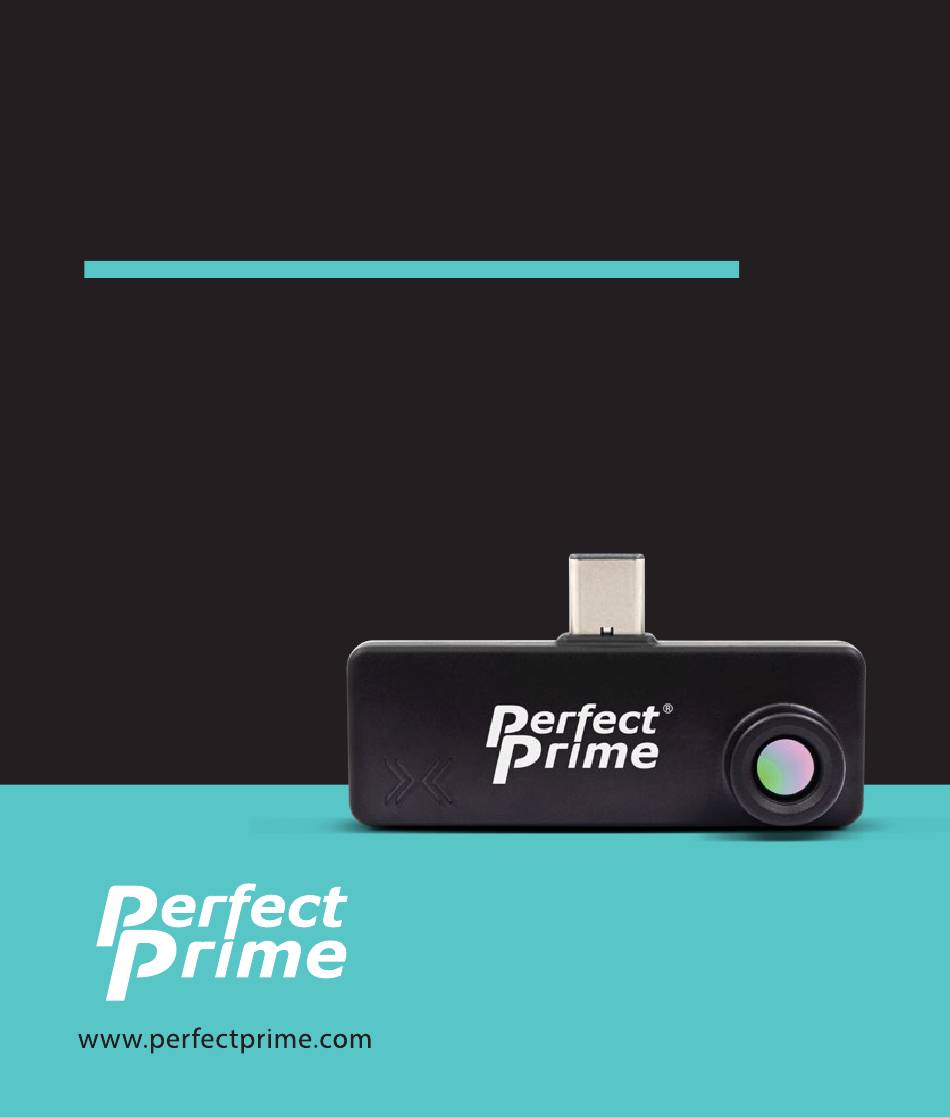

- Page 1 IR202 Thermal Camera For Android Devices Instruction Manual...
-
Page 2: Table Of Contents
Contents 1. Overview 2. App Download 3. Phone Connection 4. Product Specifications 5. Product Operation 5 - 6 6. Settings 7. Color Palette 8. Emissivity 9. Temperature Display Unit 10. Over and Under Temperature Alarms... -
Page 3: Overview
This guide provides you all the information you need to operate the IR202 Thermal Camera for Android devices. USB-C Connector Thermal Camera The IR202 is powered by the host device, no charging or battery is needed. -
Page 4: App Download
Android Phone system). QR Code 3. PHONE CONNECTION After installation, make sure host device supports USB OTG in your phone’s settings. Once plugged in, the application will automatically open within 10 seconds. Select the IR202 Thermal Camera Viewer App to start. -
Page 5: Product Specifications
4. Product Speci cations 4.1. General 80 × 62 Resolution 44.2° (H), 34.5° (V) FOV (angles in degrees) 15 FPS Maximum frame rate -40°C to 1000°C Max scene temperature range 150mK NETD up to +/-1°C Accuracy 4.2. Environmental -20 - 85°C Operating temperature -40 - 85°C Storage temperature... -
Page 6: Product Operation
5. Product Operation Mirroring: Tap on this button to ip the image horizontally Software Version: This shows the current version of software. Settings: Adjust settings such as color palette, temperature display unit, emissivity, over temperature alarm and under temperature alarm. Dynamic Range:Tap to turn on or o the dynamic range Filter: Tap to turn on or o the lter. - Page 7 5. Product Operation Min & Max Temperature: The minimum and maximum temperature of the detected area will be shown. Center Point Temperature: This shows the temperature of the center point. Thermal Image Visible Camera Image Check Images and Videos: Tap to view images and videos taken previously Take Photo: Tap on this to take a photo.
-
Page 8: Settings
6. Settings Within the settings, you can adjust variables including the color palette, temperature display unit, emissivity, over temperature alarm and under temperature alarm. -
Page 9: Color Palette
7. Color Palette 16 preset color palettes are provided for visualization purpose, temperature data is not a ected. Tap the palette list, select one of the palettes on the drop-down list and result will be applied on the new thermal image. -
Page 10: Emissivity
It quanti es the ability of an objects surface to emit long-wave infrared radiation and strongly a ects the temperature readout from the IR202. Most of the objects with matt surface is about 0.95 as well as human skin (0.95 – 0.97). Metals tend to have dramatically lower emissivity, sometimes as low as 0.1... -
Page 11: Temperature Display Unit
9. Temperature Display Unit There are 3 temperature display units to choose from: Kelvin, Celsius and Fahrenheit. P.10... -
Page 12: Over And Under Temperature Alarms
10. Over and Under Temperature Alarms You can set an alarm for over or under temperature. For the over temperature alarm, you can change the settings so when a certain temperature is reached, the alarm will trigger and there will be an alert at the bottom right of the screen. The same can be done for the under temperature alarm so that there would be an alert when the temperature goes below the temperature you set. - Page 13 CUSTOMER SERVICE INQUIRIES Your emails are important to us so we strive to reply all hours. In exceptional cases, inquiries and emails within we may require more time to respond. Thank you for your understanding. For more information about our products and services, please send us an email: cs@perfectprime.com For B2B or project-based application, please send an email:...
- Page 14 Tyche Smart Limited Retailer Email cs@perfectprime.com 2nd Floor, 107 Charterhouse Street, EC1M 6HW, London, Address England UNITED KINGDOM +44 203 7695377 Telephone...
