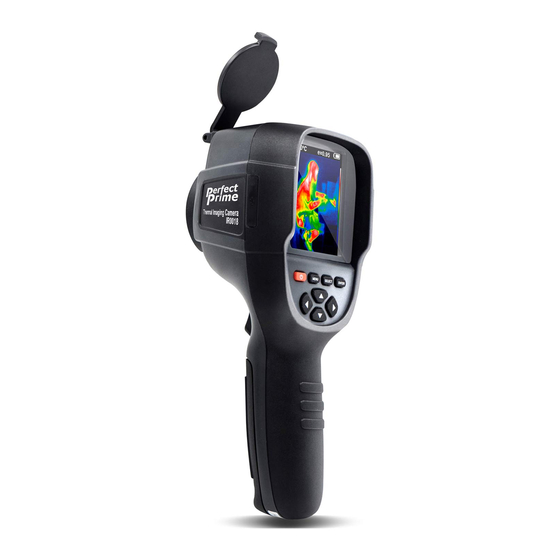

Infrared Camera
Instruction Manual: IR0018
www.perfectprime.com
for product register and warranty
Customer Service:
cs@perfectprime.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IR0018 and is the answer not in the manual?

Questions and answers

Related Manuals for Perfect Prime IR0018

Summary of Contents for Perfect Prime IR0018

  • Page 1 Infrared Camera Instruction Manual: IR0018 www.perfectprime.com for product register and warranty Customer Service: cs@perfectprime.com...

  • Page 2: Table Of Contents

    Contents 1. Overview---------------------------------------------------------------------------------------3 2. Considerations and Safety Maintenance---------------------------------------------------4 3. Performance Index----------------------------------------------------------------------------5 4. Product Description---------------------------------------------------------------------------6 5. Initial Operation-------------------------------------------------------------------------------8 6. Introduction to “Setting” Sub-menu--------------------------------------------------------9 7. Color Palette----------------------------------------------------------------------------------10 8. Application of Color Palette and Image Check------------------------------------------11 9. Time Setting----------------------------------------------------------------------------------12 10. Capture Thermal Points-------------------------------------------------------------------12 11.

  • Page 3: Overview

    4. Allow drug-enforcement units to find where Marijuana is planted, 5. Moisture detection in walls and roofs, 6. Measure body temperatures, 7. Night vision, 8. Building inspection and etc. IR0018 is the ideal selection for electrician, maintenance personnel, technicians and even the emergency.

  • Page 4: Considerations And Safety Maintenance

    2. Considerations and Safety Maintenance Please read the instructions carefully so as to ensure accurate measurement results and safety:  Do not use the device under explosive, flammable or corrosive environment.  Since the product is a precision electronic and sensitive optical device. Do not impact and drop it to avoid damage.

  • Page 5: Performance Index

    Product size (length × width × height) 90 mm×105 mm×223 mm Product Weight 389g Work temperature 0°C- 50°C Storage temperature -40°C- +80°C Relative humidity < 85％RH LWIR: thermal infrared radiation Wavelength coverage of thermal infrared radiation of IR0018...

  • Page 6: Product Description

    4. Product Description 4.1. Instruction to structure Visible light camera Infrared imaging sensor Image capture key Micro USB...
  • Page 7 4.2. Key description Battery power Central point temperature Current emissivity Cold point temperature cursor Color code Temperature cursor at central point Hot point temperature cursor Maximum /minimum value Time of field temperature 1. Central point temperature cursor The central position temperature at the screen area. 2.

  • Page 8: Initial Operation

    4.3. Key description On/off key Menu/Yes key Select/No key Enter key Navigation key: Up, down, left and right 5. Initial Operation 1. Charging: When the battery power is not sufficient, please charge it through Micro USB interface in time. 2. Power on/off the instrument: hold down “ ” key for several seconds. 3.

  • Page 9: Introduction To "Setting" Sub-Menu

    6. Introduction to “Setting” Sub-menu Auto shutdown Display intensity Language Unit Time format Set time Spot...

  • Page 10: Color Palette

    7. Color Palette The menu of color palette can change the false color on the display screen or capture infrared image. There five types of color palettes provided: rainbow, iron oxide red, cold color, black white and white black. Suitable selection of color palette displays the details of the target objective better: 1.

  • Page 11: Application Of Color Palette And Image Check

    8. Application of Color Palette and Image Check 8.1. Application of color palette 1. Press “SELECT ” to select; 2. Press “ ” to return. 3. Press “ ”/“ ” to adjust the selected items. 8.2. Check images 1. Press the menu key to select the image menu; press “ ” to enter the image menu. 2.

  • Page 12: Time Setting

    9. Time Setting 1. Press “ ”/“ ” to select year/month/day/hour/minute. 2. Press “SELECT” to enter edit 3. Press “ ” /“ ” to adjust the selected items. 4. After editing, press “ENTER” again to confirm and return. 5. Press left key or “MENU” key to return and complete the setting.

  • Page 13: Measure Objects

    11. Measure Objects According to the characteristics of the measured objects, users may select corresponding measurement mode and enter “advanced” option to adjust the value of emissivity (please refer to the table of “emissivity of common materials”). The operating step is as the following: 1.

  • Page 14: Emissivity

    12. Emissivity The emissivity of the surface of a material is its effectiveness in emitting energy as thermal radiation. The emissivity of the product can be adjusted from 0.10 to 1.00 with the default value of 0.95. Many common objects and materials (such as timber, water, skin and textile fabric) can reflect the heat energy effectively, so it is easy to obtain relatively correct measurement value.
