Tektronix Keithley CS-633 Quick Start Manual

Triaxial to bnc adapter

Keithley Instruments

28775 Aurora Road

Cleveland, Ohio 44139

1-800-935-5595

tek.com/keithley

Description

The Model CS-633 is a three-slot triaxial to female BNC adapter.

Voltage: 500 V

RMS

Material: Brass with nontarnish finish and Teflon

Environment: 0° C to 35° C up to 70% relative humidity

Operating: –25° C to 65° C storage

Dimensions and shielding

077155500 / May 2019

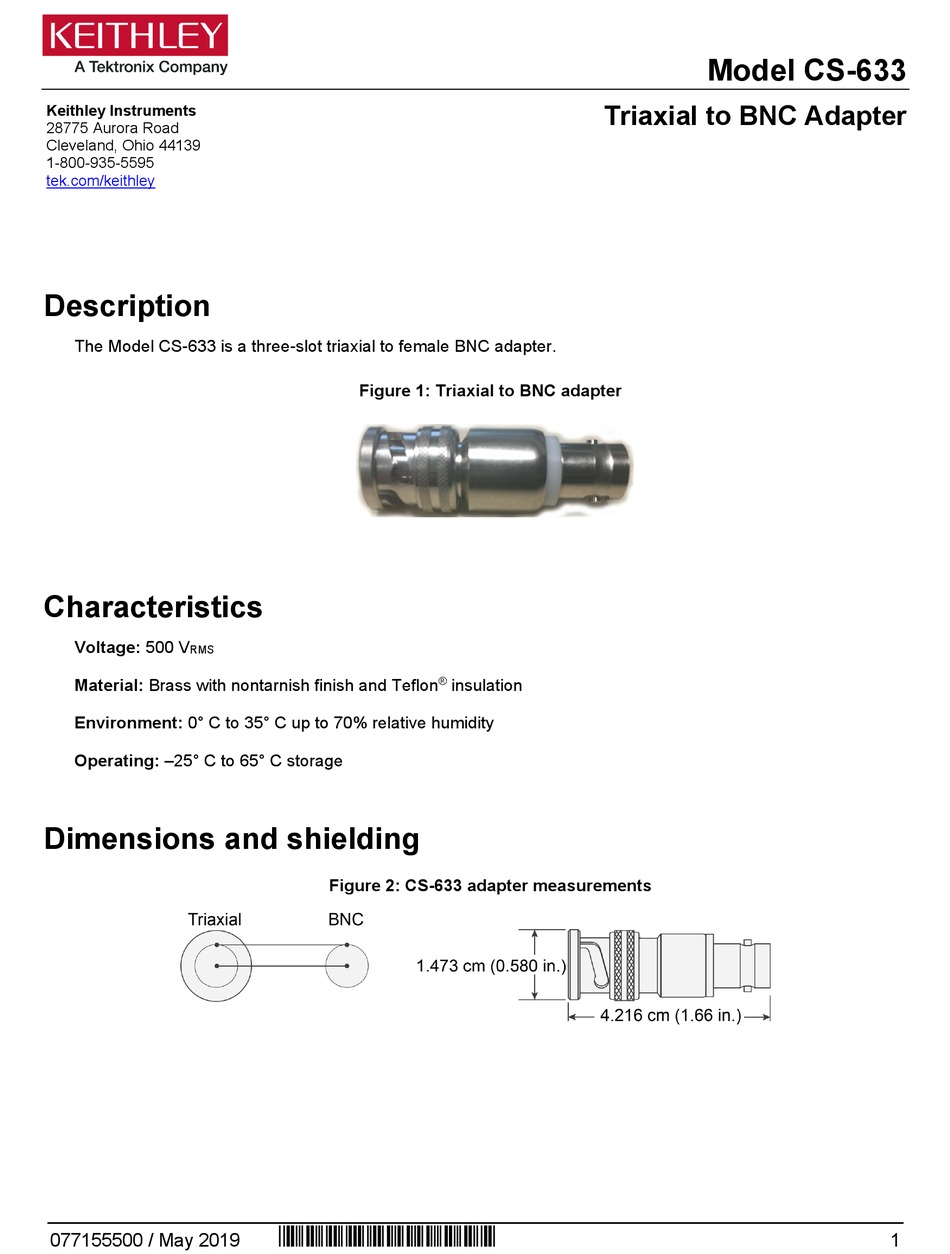

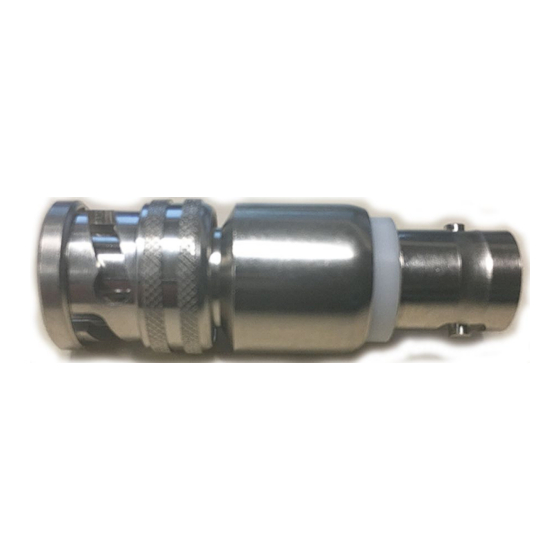

Figure 1: Triaxial to BNC adapter

insulation

Figure 2: CS-633 adapter measurements

*077155500*

Model CS-633

Triaxial to BNC Adapter
