Keithley Instruments
28775 Aurora Road
Cleveland, Ohio 44139
1-800-935-5595
tek.com/keithley
Description
The Model CS-1247 is an SMA female to BNC male adapter. It contains a gold-plated beryllium copper contact,
polytetrafluoroethylene (PTFE) insulation, and a nickel-plated brass material outer conductor. It provides a
voltage standing wave ratio (VSWR) of 1.3:1 with a frequency rance of 4 GHz. Also, it performs at 500 V
to 50 ohms.
077161600 / July 2019

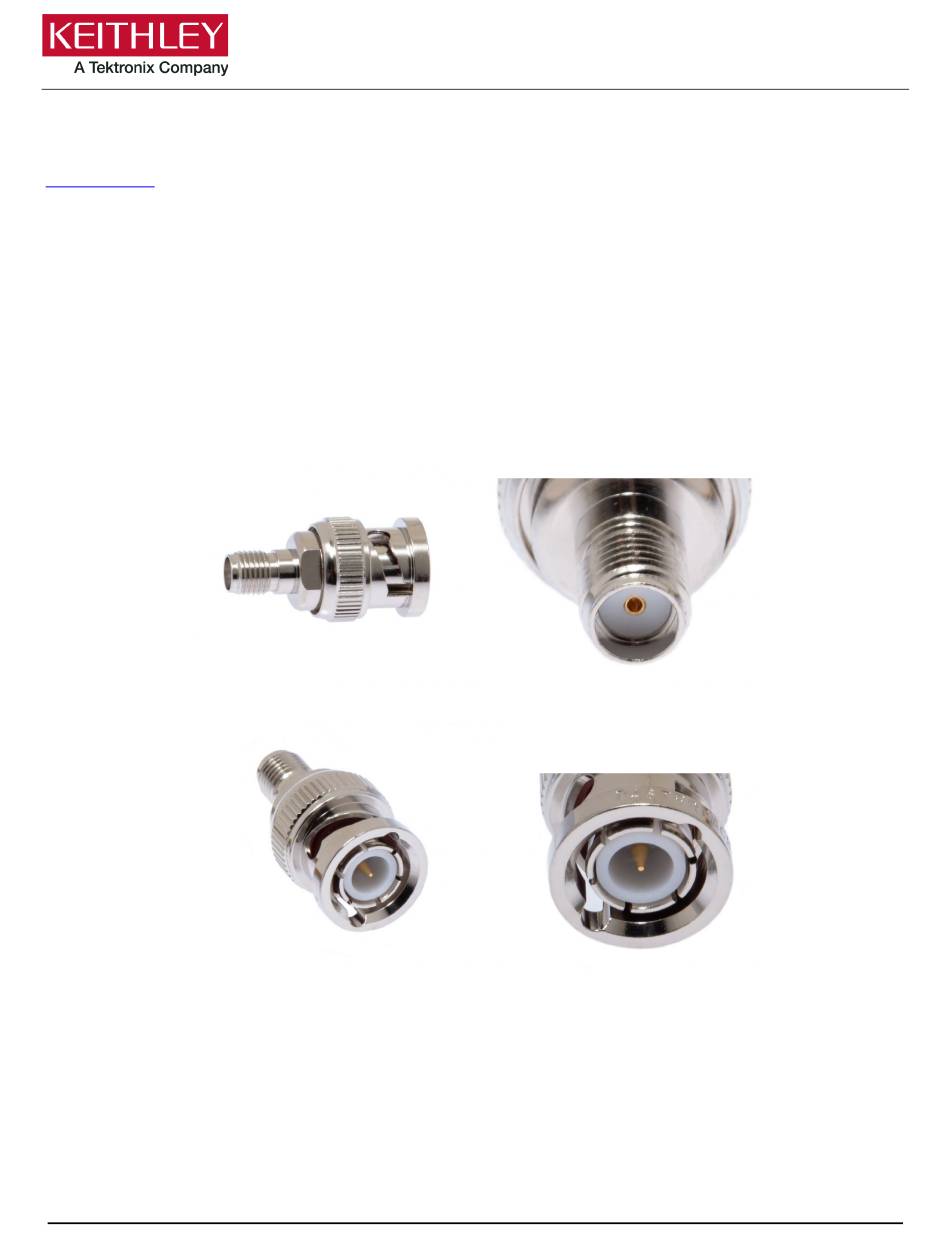

Figure 1: Model CS-1247 SMA female to BNC male adapter
Model CS-1247
BNC Adapter
rms
up
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tektronix Keithley CS-1247
Summary of Contents for Tektronix Keithley CS-1247
- Page 1 Model CS-1247 BNC Adapter Keithley Instruments 28775 Aurora Road Cleveland, Ohio 44139 1-800-935-5595 tek.com/keithley Description The Model CS-1247 is an SMA female to BNC male adapter. It contains a gold-plated beryllium copper contact, polytetrafluoroethylene (PTFE) insulation, and a nickel-plated brass material outer conductor. It provides a voltage standing wave ratio (VSWR) of 1.3:1 with a frequency rance of 4 GHz.
- Page 2 Model CS-1247 BNC Adapter Characteristics Voltage: 500 V Impedance: 50 Ω Frequency range: Voltage standing wave ratio (VSWR) of 1.3:1 4 GHz Material: Gold-plated beryllium copper contact Operating environment: 0° C to 35° C up to 70% relative humidity ...
- Page 3 Safety precautions The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with nonhazardous voltages, there are situations where hazardous conditions may be present. This product is intended for use by personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury.
- Page 4 For safety, instruments and accessories must be used in accordance with the operating instructions. If the instruments or accessories are used in a manner not specified in the operating instructions, the protection provided by the equipment may be impaired. Do not exceed the maximum signal levels of the instruments and accessories. Maximum signal levels are defined in the specifications and operating information and shown on the instrument panels, test fixture panels, and switching cards.
