Summary of Contents for SCIFIT STANDARD

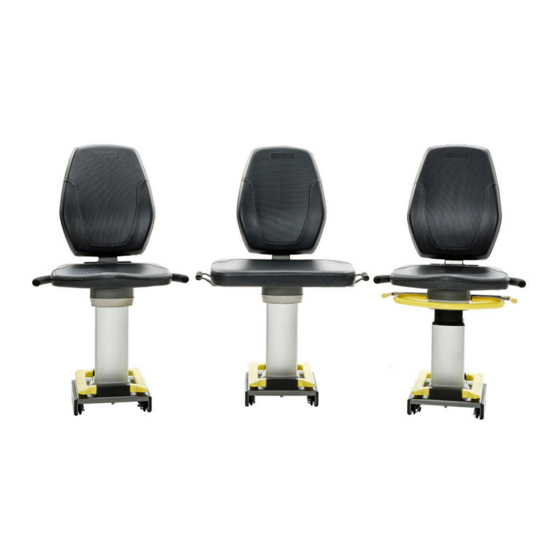

- Page 1 Models: PREM-SEAT-01 STND-SEAT-01 BARI-SEAT-01 SCIFIT Seat System Assembly Manual PREMIUM STANDARD BARIATRIC Before using this product, read this manual and follow all safety rules and operating instructions.
- Page 2 Operating Hours: 9.00h - 17.00h (CET) Telephone: (+852) 2575.6262 Fax: (+852) 2575.6894 Service Email: HongKongEnquiry@lifefitness.com Sales/Marketing Email: * Also check www.lifefitness.com for local representation or distributor/dealer Marketing.HK.Asia@lifefitness.com * Order online 24/7 at www.SCIFIT.com Operating Hours: 9.00h - 17.00h Service Operating Hours: 9.00h - 18.00h...
- Page 3 Operation Manuals and other Product Information available at http://www.scifit.com/resources/specifications-manuals/ عقوملا ىلع ةحاتم زاهجلا نع ىرخأ تامولعمو ليغشتلا ةلدأ http://www.scifit.com/resources/specifications-manuals/ 操作マニュアルおよびその他の製品情報については、 をご覧く ださい。 http://www.scifit.com/resources/specifications-manuals/ http://www.scifit.com/resources/specifications-manuals/ 如需操作手册和其他产品信息，请登录： http://www.scifit.com/resources/specifications-manuals/ 操作手冊和其他產品資訊請見 작동 설명서 및 기타 제품 정보는 에서 찾을 수 있습니다. http://www.scifit.com/resources/specifications-manuals/ http://www.scifit.com/resources/specifications-manuals/ Trobareu el manual de funcionament i altra informació de producte a Mae Llawlyfrau Gweithredu a Gwybodaeth Arall am Beiriannau ar gael yn http://www.scifit.com/resources/specifications-manuals/...
-
Page 4: Table Of Contents
TABLE OF CONTENTS MAINTENANCE SAFETY INFORMATION SPECIFICATIONS PREMIUM SEAT ASSEMBLY STANDARD SEAT ASSEMBLY BARIATRIC SEAT ASSEMBLY 9-11 PLACING THE SEAT ASSEMBLY ONTO THE MACHINE WARRANTY INTRODUCTION MAINTENANCE COMPONENT ACTION WHEN Upholstery Clean With Mild Soap and Water Daily Base Wheel Rollers... -
Page 5: Safety Information
SCIFIT is not responsible for missing or damaged warning labels. • Use the SCIFIT seat system only for its intended purposes as described in this manual. Do not use attachments not recommended by the manufacturer. •... -
Page 6: Specifications
Premium Seat Max User Weight: 450 lbs (204kg) Length: 24 in. (61cm) Height: 42 in. (107cm) Width: 25 in. (64cm) Standard Seat Max User Weight: 500 lbs (227kg) Length: 24 in. (61cm) Height: 42 in. (107cm) Width: 25 in. (64cm) -
Page 7: Premium Seat Assembly
PREMIUM SEAT ASSEMBLY Components Upper Seat Back Bottom Seat Pad Premium SeatPost Tilt/Height Adjust Assy. Assembly Hardware Bag and Hardware Content 5/16-18 x 3/4” 5/16-18 x 1/2” Spring (Qty. 1) Hardware Bag Flange Bolt (Qty. 8) Flange Bolt (Qty. 4) SEAT HARDWARE 3/4”... - Page 8 PREMIUM SEAT ASSEMBLY 100 % ATTENTION He upper seat section is unbalanced tabilize tHe seat section by Holding tHe upper rear pad Handle wHen securing to tHe seatpost 1st Front Screw...
- Page 9 PREMIUM SEAT ASSEMBLY 2nd Front Screw Rear Screws 100 % Right User Side Left User Side 100 % 100 % Refer to the seat system user’s manual to test the height, tilt and swivel functions of the seat assembly.
-
Page 10: Standard Seat Assembly
STANDARD SEAT ASSEMBLY Components Hardware Bag and Hardware Content 5/16-18 x 3/4” Standard Upper Seat Back Assembly Flange Bolt (Qty. 8) Hardware Bag Standard SeatPost Bottom Seat Pad SEAT HARDWARE Required Tools: 1/2” (13mm) Socket 3” (76mm) Rachet Extension Ratchet •... - Page 11 STANDARD SEAT ASSEMBLY Rear Screws 100 % Right User Side 100 % Left User Side 100 %...
-
Page 12: Bariatric Seat Assembly
BARIATRIC SEAT ASSEMBLY Components Bariatric Upper Barciatric SeatPost Barciatric Seat Pad Weldment Seat Back Assembly Bariatric Bottom Seat Pad Hardware Bag and Hardware Content 5/16-18 x 3/4” Flange Bolt (Qty. 8) Hardware Bag SEAT HARDWARE Required Tools: 1/2” (13mm) Socket 3”... - Page 13 BARIATRIC SEAT ASSEMBLY 2nd Front Screw 1st Front Screw Rear Screws 100 %...
-
Page 14: Placing The Seat Assembly Onto The Machine
BARIATRIC SEAT ASSEMBLY Right User Side Left User Side 100 % 100 % PLACING THE SEAT ASSEMBLY ONTO THE MACHINE... -
Page 15: Warranty
Operation Manual (“Manual”). above limitations or exclusions may not apply to you. Warranty coverages and terms may differ outside the United States. Please contact the SCIFIT One type RJ45 interchangeable Network ready and Fitness office servicing your country (contact information found at the front of this Entertainment port is supplied with the Product. - Page 16 A6756A 9/2016...
