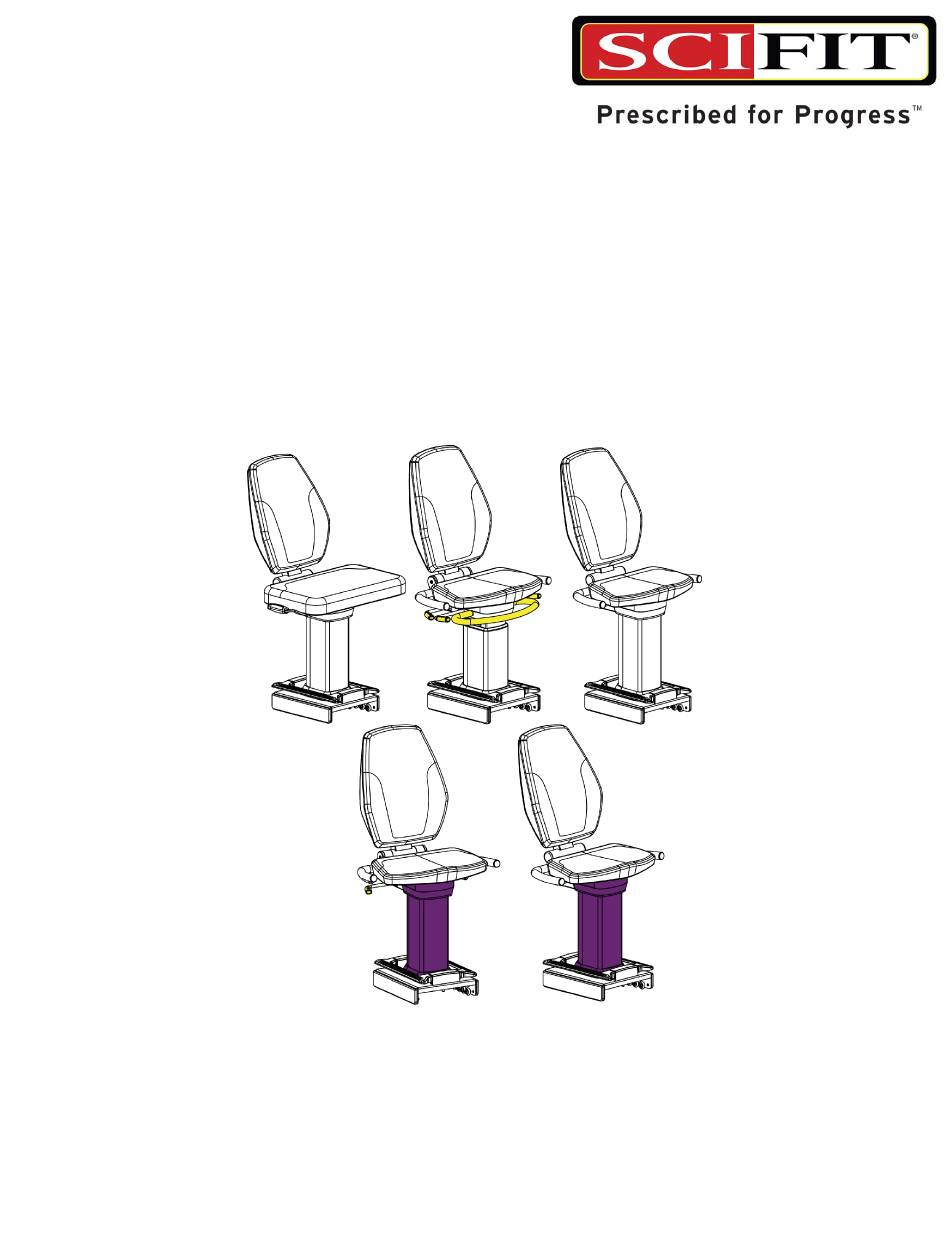

- Page 1 SCIFIT Seat System User's Manual Seat System Models: PREM-SEAT-01, STND-SEAT-01, BARI-SEAT-01, STND-SEAT-PF, RCLN-SEAT-PF...
- Page 3 United Kingdom All Other EMEA Countries and Distributor Business EMEA* North America Life Fitness UK LTD Bijdorpplein 25-31 SCIFIT Queen Adelaide 2992 LB Barendrecht Ely, Cambs, CB7 4UB 5151 S. 110th E. Avenue THE NETHERLANDS Telephone: General Office (+44) 1353.666017 Tulsa, OK, 74146 U.S.A...
- Page 4 User and Service Documents Link https://lfworld.lifefitness.com Additional information is available online using the link above. أعلاه الرابط باستخدام الإنترنت على إضافية معلومات تتوفر 点击上面的链接可在线获取更多信息。 Flere oplysninger er tilgængelige online gennem linket ovenfor. Bijkomende informatie is online beschikbaar via bovenstaande link. Vous trouverez plus d'informations en ligne à...
-
Page 5: Table Of Contents
© Copyright 2020, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life Fitness, LLC and its affiliated companies and subsidiaries. Brunswick and related trademarks used under license from Brunswick Corporation. Disclaimer: Images and specifications are current as of the date of publication and are subject to change. -
Page 6: Introduction
If warnings are missing or damaged, please contact customer service immediately for replacement warning labels. Warning labels are shipped with every product and should be installed before the product is used. SCIFIT is not responsible for missing or damaged warning labels. - Page 7 • This machine is not intended for use by persons with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety.
-
Page 8: Service And Technical Data
Service and Technical Data MAINTENANCE COMPONENT ACTION WHEN Upholstery Clean with mild soap and water Daily Base Wheel Rollers Clean with damp cloth Every 6 months Seat Post and Handles Clean with damp cloth Daily Page 6 of 20... -
Page 9: Specifications

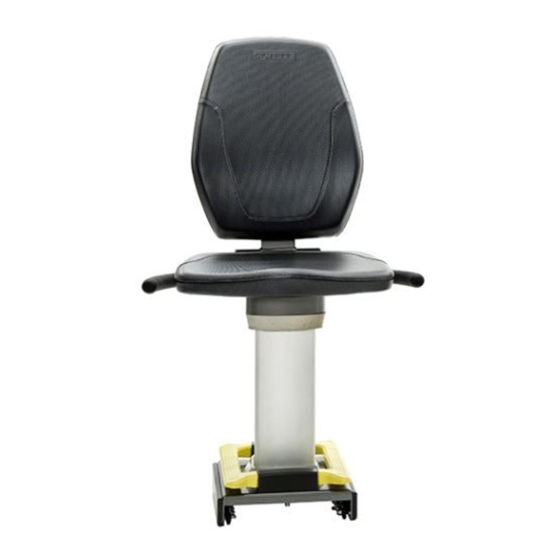

Specifications Specifications PREMIUM SEAT Max User Weight: 450 lbs. (204 Kg) Length: 24 in. (61 cm) Height: 42 in. (107 cm) Width: 25 in. (64 cm) Accessory: Seat Belt Cushioned Upper Seat Pad Cushioned Seat Bottom Seat Height Handle Adjustment Adjustable Seat Post Forward/Backward Foot Lever Adjustment Right/Left Swivel Handle Adjustment... - Page 10 STANDARD SEAT Max User Weight: 500 lbs. (227 Kg) Length: 24 in. (61 cm) Height: 42 in. (107 cm) Width: 25 in. (64 cm) Accessory: Seat Belt (For seats built after 6/2017) Cushioned Upper Seat Pad Cushioned Seat Bottom Fixed Seat Post Forward/Backward Foot Lever Adjustment Page 8 of 20...
- Page 11 BARIATRIC SEAT Max User Weight: 600 lbs. (272 Kg) Length: 24 in. (61 cm) Height: 42 in. (107 cm) Width: 28 in> (71 cm) Accessory: Seat Belt (For seats built after 6/2017) Cushioned Upper Seat Pad Cushioned Seat Bottom Fixed Seat Post Forward/Backward Foot Lever Adjustment Page 9 of 20...
- Page 12 STANDARD SEAT (PURPLE SEAT POST) Max User Weight: 500 lbs. (227 Kg) Length: 24 in. (61 cm) Height: 42 in. (107 cm) Width: 25 in. (64 cm) Accessory: Seat Belt (For seats built after 6/2017) Cushioned Upper Seat Pad Cushioned Seat Bottom Fixed Purple Seat Post Forward/Backward Foot Lever Adjustment Page 10 of 20...
- Page 13 STANDARD SEAT (PURPLE RECLINING SEAT POST) Max User Weight: 500 lbs. (227 Kg) Length: 24 in. (61 cm) Height: 42 in. (107 cm) Width: 25 in. (64 cm) Accessory: Seat Belt (For seats built after 6/2017) Cushioned Upper Seat Pad Cushioned Seat Bottom Fixed Purple Seat Post Forward/Backward Foot Lever Adjustment...
-
Page 14: Seat Installation
Seat Installation Seat mounting (All Models) 1. Place the wheels of the seat base front end onto the base frame. 2. Grab the seat handle on the back of the upper seat pad. 3. Lift the back end of the seat base. 4. -
Page 15: Forward-Backward Adjustment
Forward-Backward Adjustment Forward/Backward Adjustment (All Models) ATTENTION: Position the seat allowing a slight bend of the arms and knees at their furthest extension during a workout. Push down on either yellow foot lever, then move the seat forward or backward to the desired position. Page 13 of 20... -
Page 16: Premium Height Adjustment
Premium Height Adjustment Height Adjustment (Premium Seat Only) RAISING ATTENTION: When raising the seat do not sit on it. Lift the yellow handlebar located in the front and hold, then release when the desired height is reached. LOWERING Sit on the seat, then lift the yellow handlebar in front and hold, then release when the desired height is reached. Page 14 of 20... -
Page 17: Premium Swivel Adjustment
Premium Swivel Adjustment Swivel Adjustment (Premium Seat Only) Swivel Handle Location: 1st handle on either left or right side of the bottom seat. Sit on the seat, then lift the handle upward. Still holding the handle up, swivel the seat to the right or left. Page 15 of 20... -
Page 18: Recline Adjustment
Recline Adjustment Recline Adjustment (Premium and StepOne Purple Seats) Recline Handle Location: (Premium) Behind the swivel handle, (StepOne Purple Seat) Rear of the seat bottom. Sit on the seat, then lift the recline handle and hold. Still lifting on the handle, push back on the upper seat pad to the desired position. Page 16 of 20... -
Page 19: Warranty
Who Pays Transportation and Insurance For Service If the Product or any covered part must be returned to a service facility for repairs, We, SCIFIT, will pay all transportation and insurance charges for the first year. You are responsible for transportation and insurance charge after the first year. -
Page 20: How To Get Replacement Parts And Service
Warranty coverages and terms may differ outside the United States. Please contact the SCIFIT office servicing your country (contact information found at the front of this manual) or visit the applicable local SCIFIT website to receive the specific warranty information for your country. - Page 21 NOTES Page 19 of 20...
- Page 22 A6813C 2020 www.scifit.com...
