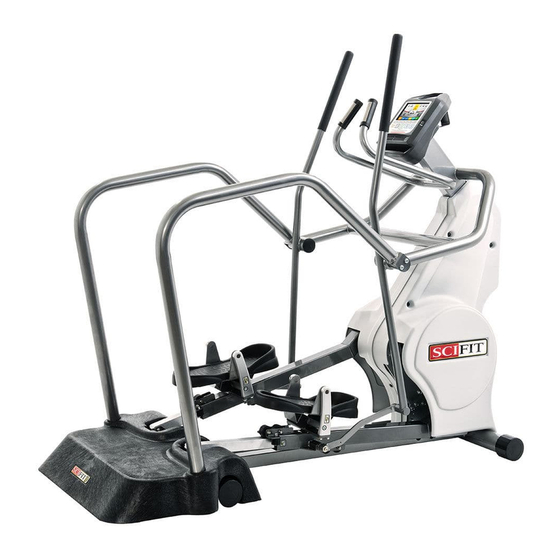

Wireless Heart Rate PCB Replacement
(Use this procedure for all
SX500's, SX1004's thru serial number 905-005170, SX7000's thru 911-
005227, and SXT7000's thru 970-005361.)

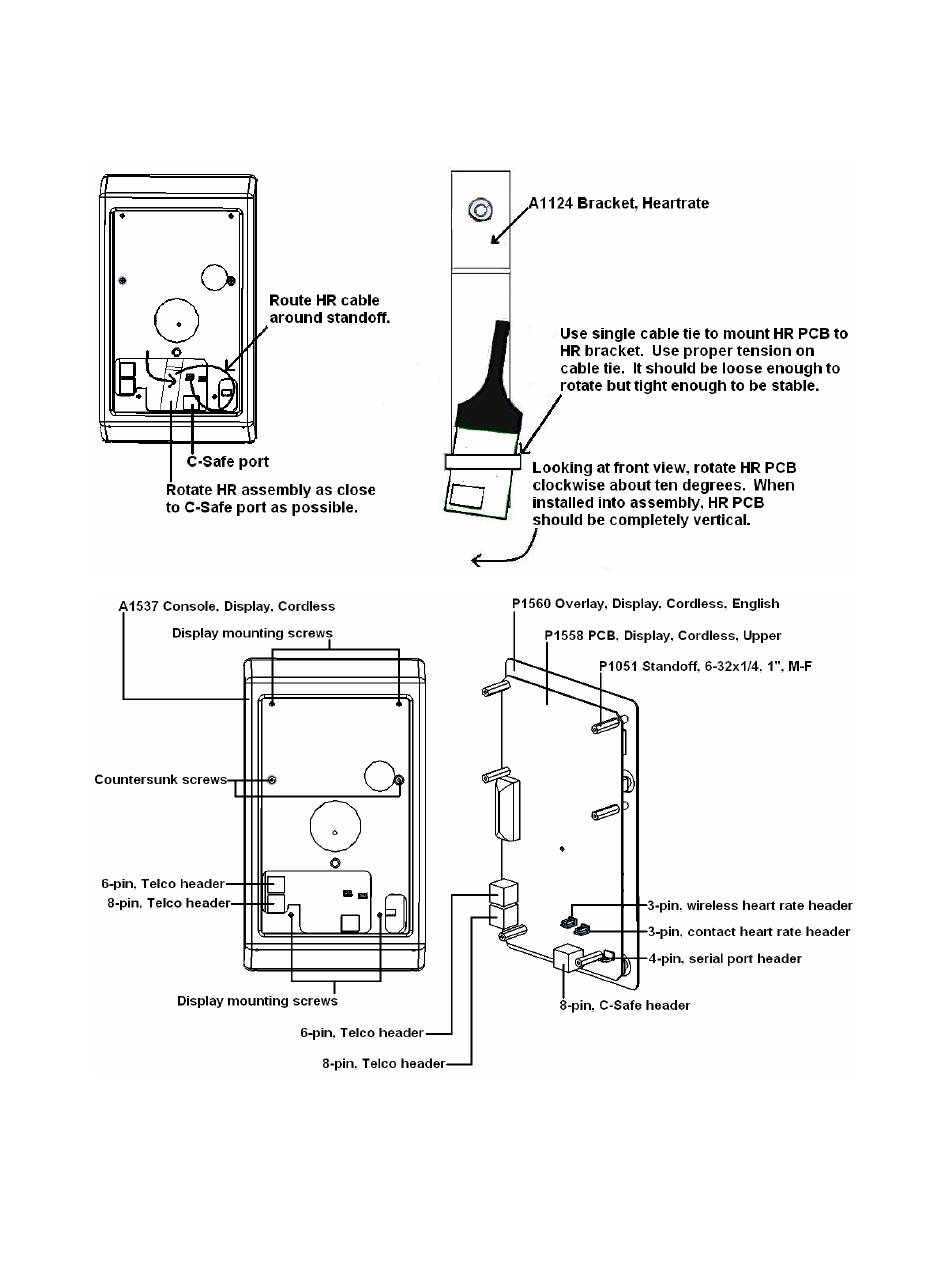

1. Using a Philips screwdriver, remove the four (4) display mounting screws
on the back of the display mounting plate.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SCIFIT SX500
Summary of Contents for SCIFIT SX500
- Page 1 Wireless Heart Rate PCB Replacement (Use this procedure for all SX500’s, SX1004’s thru serial number 905-005170, SX7000’s thru 911- 005227, and SXT7000’s thru 970-005361.) 1. Using a Philips screwdriver, remove the four (4) display mounting screws on the back of the display mounting plate.
- Page 2 2. Disconnect all cables running to the upper PCB and remove the upper console assembly from the unit. Make sure the cables do not fall into the neck of the unit. 3. Remove the two (2) outer countersunk screws in the back of the plastic console using a Philips screwdriver.
