SCIFIT PRO2 Series Owner's Manual

Total body exerciser
Hide thumbs Also See for PRO2 Series:

Advertisement

Quick Links

Download this manual
Total Body Exerciser
Machine Owner's Manual
ALL PRO2 SERIES MODELS
A6780 REV CB

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRO2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SCIFIT PRO2 Series

Summary of Contents for SCIFIT PRO2 Series

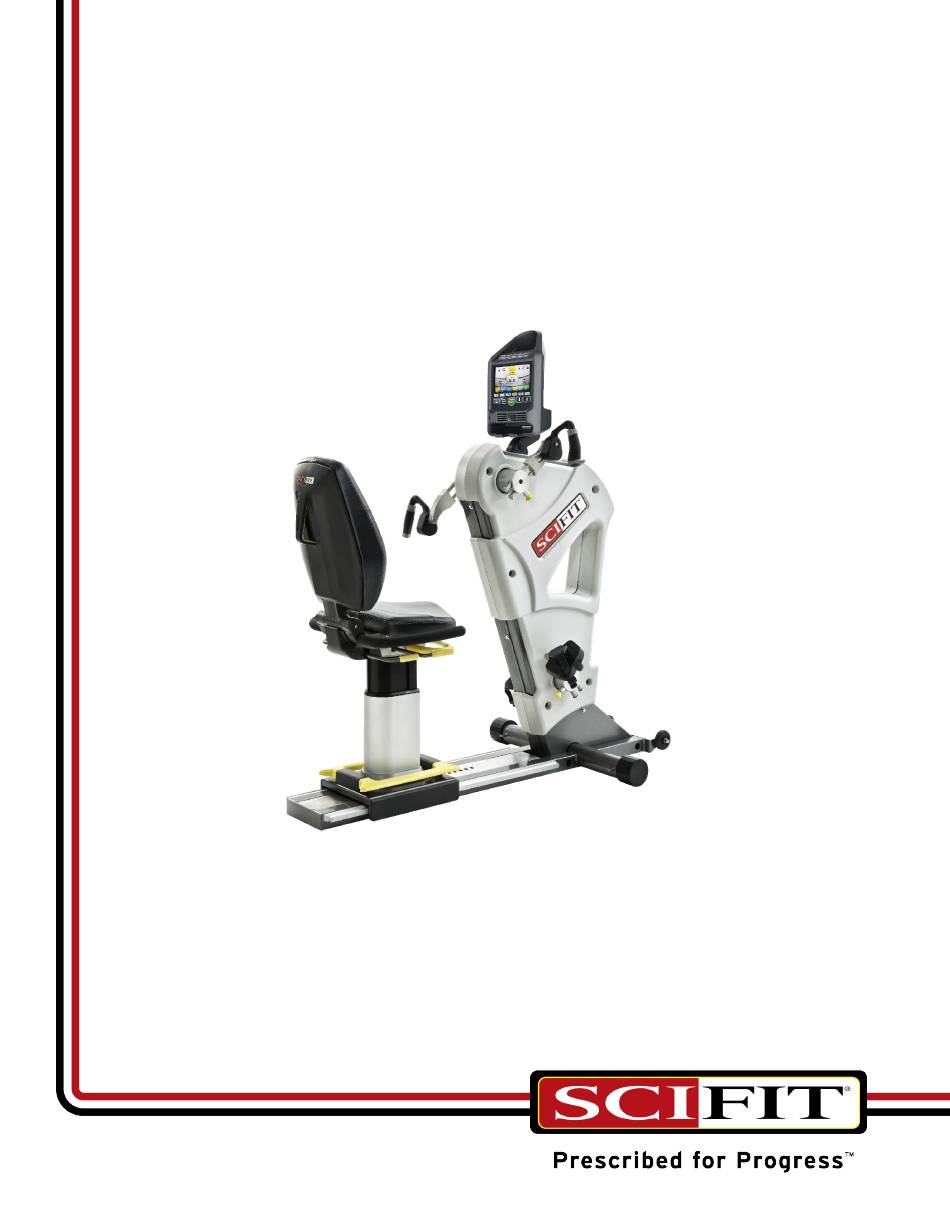

  • Page 1 Total Body Exerciser Machine Owner's Manual ALL PRO2 SERIES MODELS A6780 REV CB...
  • Page 3 EUROPE, MIDDLE EAST, and AFRICA (EMEA) All Other EMEA Countries and Distributor Business EMEA* North America Belgium, Netherlands, and Luxemburg Life Fitness Atlantic BV SCIFIT Life Fitness Atlantic BV Bijdorpplein 25-31 Columbia Centre III Bijdorpplein 25-31 2992 LB Barendrecht 9525 Bryn Mawr Avenue...
  • Page 4 User and Service Documents Link https://lfn.fit/KnowledgeBase https://lfn.fit/SupportDocuments Additional information is available online using the links above. ‫أ علاه‬ ‫إل ر إبط‬ ‫باستخدإم‬ ‫إ لإ ن تر نت‬ ‫على‬ ‫إضافية‬ ‫معلومات‬ ‫تتوفر‬ 点击上面的链接可在线获取更多信息。 Flere oplysninger er tilgængelige online gennem linket ovenfor. Bijkomende informatie is online beschikbaar via bovenstaande link.
  • Page 5 © Copyright 2024, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life Fitness, LLC and its affiliated companies and subsidiaries. Disclaimer: Images and specifications are current as of the date of publication and are subject to change.
  • Page 6 • If warnings are missing or damaged, please contact customer service immediately for replacement warning labels. Warning labels are shipped with every product and should be installed before the product is used. SCIFIT is not responsible for missing or damaged warning labels.
  • Page 7 • Do not allow other people to interfere in any way with the user or equipment during a workout. • When the product is not in use, SCIFIT recommends unplugging the product. Disconnect from the electrical outlet when not in use, and before putting on or taking off parts.
  • Page 8 2. Product Overview Product Overview PRO2 GEN4 Console Adjustable Upper Cranks with Ergonomic Grips Ergonomic Seat Assembly (Premium Seat Shown) Forward/Backward Seat Adjustment Foot Lever Leveling Endcaps Adjustable Lower Foot Pedal Cranks Page 6 of 23...
  • Page 9 3. Service and Technical Data Maintenance Component Action When Upholstery Clean With a Damp Cloth Daily Base Roller Track Clean With a Damp Cloth Weekly Battery Refer to “Rotary CNSL Prog. Manual” For battery Check Instruct. Monthly Chain General Purpose Chain Lubricant Every 6 Mo.
  • Page 10 4. Assembly and Relocation PRO2 Assembly Short assembly steps will be required when the machine arrives at the customer location. The following steps will show these steps for the PRO2 machine models. Tools Required: • Torque wrench set 48 ft-lbs (65 Nm) •...
  • Page 11 2. Starting on the right side, take the 12" center punch and insert it into the second hole from the front (nearest to the round tube). 3. Take the 12" extension with 5/16" hex bit, screw, split washer and flat washer, then loosely insert the hardware into the front hole of the base frame closest to the transport wheels as shown.
  • Page 12 4. Remove the center punch , then take the 12" extension with 5/16" hex bit, screw, split washer and flat washer, then loosely insert the hardware into the hole where the center punch was located. 5. Go to the left side, then take the 12" center punch and insert it into the second hole from the front (nearest to the round tube).
  • Page 13 6. Take the 12" extension with 5/16" hex bit, screw, split washer and flat washer, then loosely insert the hardware into the front hole of the base frame closest to the transport wheels as shown. 7. Remove the center punch , then take the 12" extension with 5/16" hex bit, screw, split washer and flat washer, then loosely insert the hardware into the hole where the center punch was located.
  • Page 14 8. Starting on the left side take the torque wrench set at 48 ft-lbs (65 Nm), then attach the 12" extension and 5/16" hex bit. Tighten the main body to base frame hardware in the three holes. 9. Repeat step 8 on the right side. ASSEMBLY COMPLETE Page 12 of 23...
  • Page 15 PRO2 Relocate 1. Remove the seat by pressing down on either left or right yellow foot levers, then slide the seat assembly off the base frame and place to the side. 2. Grab the lift handle at the back of the base frame and lift until the front transport wheels touch the floor, then move the machine to the preferred location.
  • Page 16 3. Once at the location, if needed adjust the left and right end caps to make the machine level with the floor. 4. Remount the seat assembly by pressing either the left or right yellow foot levers, then slide the seat assembly onto the base frame and release the foot lever at the preferred position.
  • Page 17 5. Adjustments Machine Start-up There are two ways to activate the console screen to begin a workout. Turn either the upper or lower cranks to activate the console. Connect the wallpack to the machine. Page 15 of 23...
  • Page 18 In facilities where the lowest possible starting resistance is desired, please use the enclosed, UL Approved, 18 volt adapter (#P4861) to plug your SCIFIT product into an electrical outlet. While all SCIFIT products provide low starting resistance, the use of the 18 volt adapter makes a noticeable difference in lowering the starting resistance.
  • Page 19 Console Adjustment Page 17 of 23...
  • Page 20 Upper Crank Adjustment WARNING: Ensure that the adjustment knob is fully engaged into the hole of the crank rod when adjusting. 8" (20cm) Radius, 1st hole position 7" (18 cm) Radius, 2nd hole position 6" (15 cm) Radius, 3rd hole position Page 18 of 23...
  • Page 21 Lower Crank Adjustment WARNING: Ensure that the adjustment knob is fully engaged into the hole of the crank rod when adjusting. 6.85" (17 cm) Radius, 1st hole position 5.60" (14 cm) Radius, 2nd hole position 4.35" (11 cm) Radius, 3rd hole position Page 19 of 23...
  • Page 22 6. Biomechanical Positioning Machine Entry 1. Choose one of the following to position seat for entry. • Press and hold the yellow foot lever located on either side of the seat base (see Seat System manual), then move the seat back to allow sufficient entry space and release the foot lever. You may grab the handles on either side of the console to stabilize yourself and sit on the seat.
  • Page 23 7. Specifications Specifications PRO2 Max User Weight Standard Seat - 500 lbs (227 kg) Bariatric Seat- 600 lbs (272 kg) Premium Seat - 450 lbs (204 Power Self generating w/auto recharge battery back-up. Standard 18V AC Adapter Resistance System Electromagnetic Self Generating Bi-Directional Resistance Programs Quick Start, Manual, Constant Workout, ISO-Strength, Hills, Heart Rate, Fit-Quik, Random, Stress Test, Heart Fit Test, Heart Fit Training, Power Fit Test and Power Fit Training...
  • Page 24 SCIFIT representative. What You Must Do Register your Product online at http://www.scifit.com/warranty-registration-2/. Retain proof of purchase; use, operate and maintain the Product as specified in the Manual; notify Customer Support Services of any defect within 10 days after discovery of the defect; if instructed, return any defective part for replacement or, if necessary, the entire Product for repair.
  • Page 25 servicing your country (contact information found at the front of this manual) or visit the applicable local Life Fitness website to receive the specific warranty information for your country. Changes in Warranty Not Authorized No one is authorized to change, modify or extend the terms of this limited warranty. Effects of State Laws This warranty gives you specific legal rights, and you may have other rights which vary from state to state and country by country.
