OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE

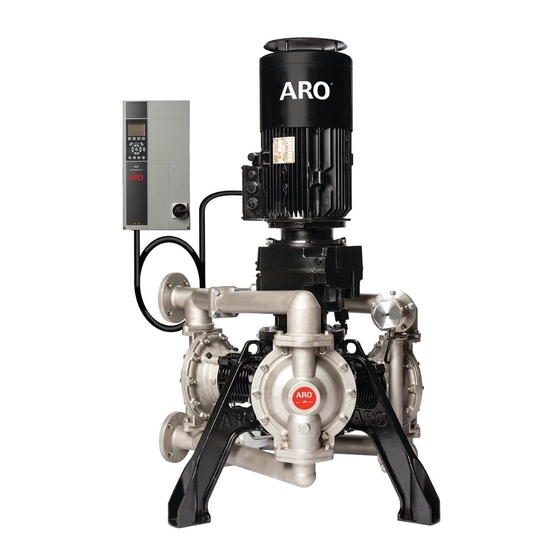

2" EVO SERIES  ELECTRIC DIAPHRAGM PUMP
INGERSOLL RAND COMPANY INC
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276
FAX (800) 892-6276
arozone.com
(METALLIC FLUID SECTIONS)
© 2022
EP20-XXXXX-XXX-XXX
RELEASED:
1-28-22
REVISED:
9-30-22
(REV: B)
