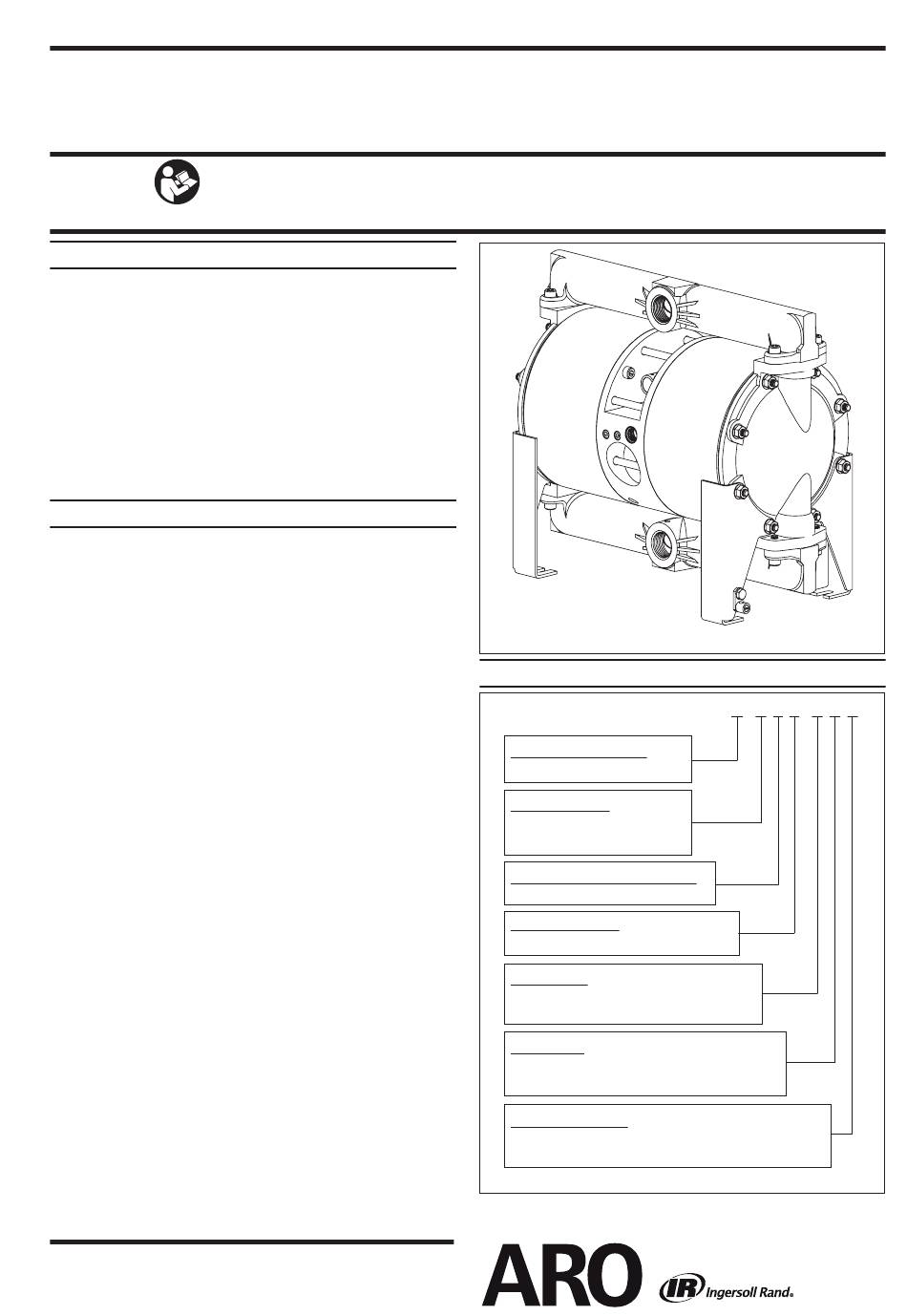

Ingersoll-Rand ARO PH10A Series Operator's Manual

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION AND SERVICE

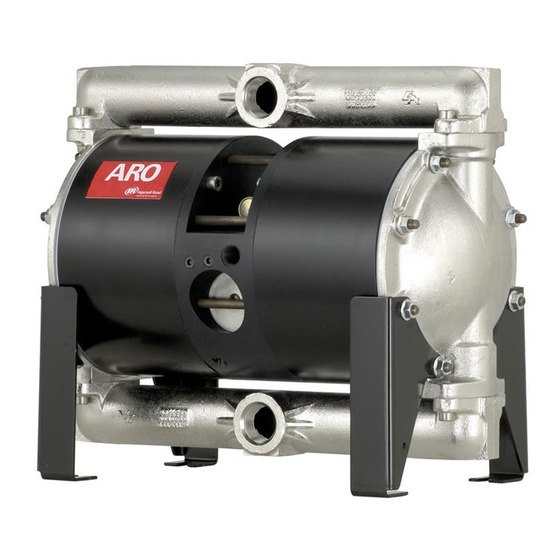

1" HIGH PRESSURE DIAPHRAGM PUMP
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to "Model Description Chart" to match the pump mate-
rial options.
637338 for air section repair (see page 6).
637339 for fluid section repair (models PH10A-XXX-XSX) (see
page 4).
637339-1 for fluid section repair (models PH10A-XXX-XHX)
(see page 4).
637339-2 for fluid section repair (models PH10A-XXX-SXL)
(see page 4).
637339-3 for fluid section repair (models PH10A-XXX-HXL)
(see page 4).
PUMP DATA
Models . . . . . . . . . . . .see Model Description Chart for "-XXX".
Pump Type . . . . . . . .Metallic Air Operated, High Pressure,
Double Diaphragm.
Material . . . . . . . . . . .see "Model Description Chart".
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94.73 lbs (42.97 kgs)
Maximum Air Inlet Pressure . . . . . . . . 100 psig (6.9 bar)
Maximum Outlet Pressure . . . . . . . . . . 300 psig (20.4 bar)
Maximum Flow Rate
(Flooded inlet) . . . . .
Maximum Particle Size . . . . . . . . . . . . . 1/8" dia. (3.2 mm)
Maximum Temperature Limits
Nitrile . . . . . . . . . . . . . . . . . . . . 10
PTFE. . . . . . . . . . . . . . . . . . . . . . 40
Displacement / Cycle @ 100 psig . . . . . 0.06 gal. (0.23 lit.)
Dimensional Data . . . . . . . . . . . . . . . . . . . see page 8
Noise Level @ 70 psig, 60 cpm . . . . . . . 84.5 dB(A)
 The pump sound pressure levels published here have been updated to
an Equivalent Continuous Sound Level (LA
S1.13-1971, CAGI-PNEUROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart, however, certain
combinations may not be recommended . Consult a representative or
the factory if you have questions concerning availability .
INGERSOLL RAND COMPANY INC
209 NORTH MAIN STREET – BRYAN, OHIO 43506

(800) 495-0276  FAX (800) 892-6276
arozone.com
3:1 RATIO (METALLIC)
OPERATING OR SERVICING THIS EQUIPMENT.
26 gpm (98.4 lpm)
(Diaphragm / Ball / Seat materials)
   
to 180 F (-12 to 82 C)
   
to 225 F (4 to 107 C)

) to meet the intent of ANSI
eq
© 2023 CCN 99755480
PH10A-XXX-XXX
Figure 1
MODEL DESCRIPTION CHART
Centre Section Material
A - Aluminum
Fluid Connection
A - 1 - 11-1/2 NPTF-1
B - Rp 1 (1 - 11 BSP parallel)
Fluid Cap and Manifold Material
S - Stainless Steel
Hardware Material
S - Stainless Steel
Seat Material
H - Hard 440 Stainless Steel
S - 316 Stainless Steel
Ball Material
H - Hard 440 Stainless Steel
S - 316 Stainless Steel
Diaphragm Material
L - Long Life PTFE
T - PTFE
RELEASED: 7-7-00
REVISED: 1-27-23
(REV: T)
PH10A - X S S - X X X
