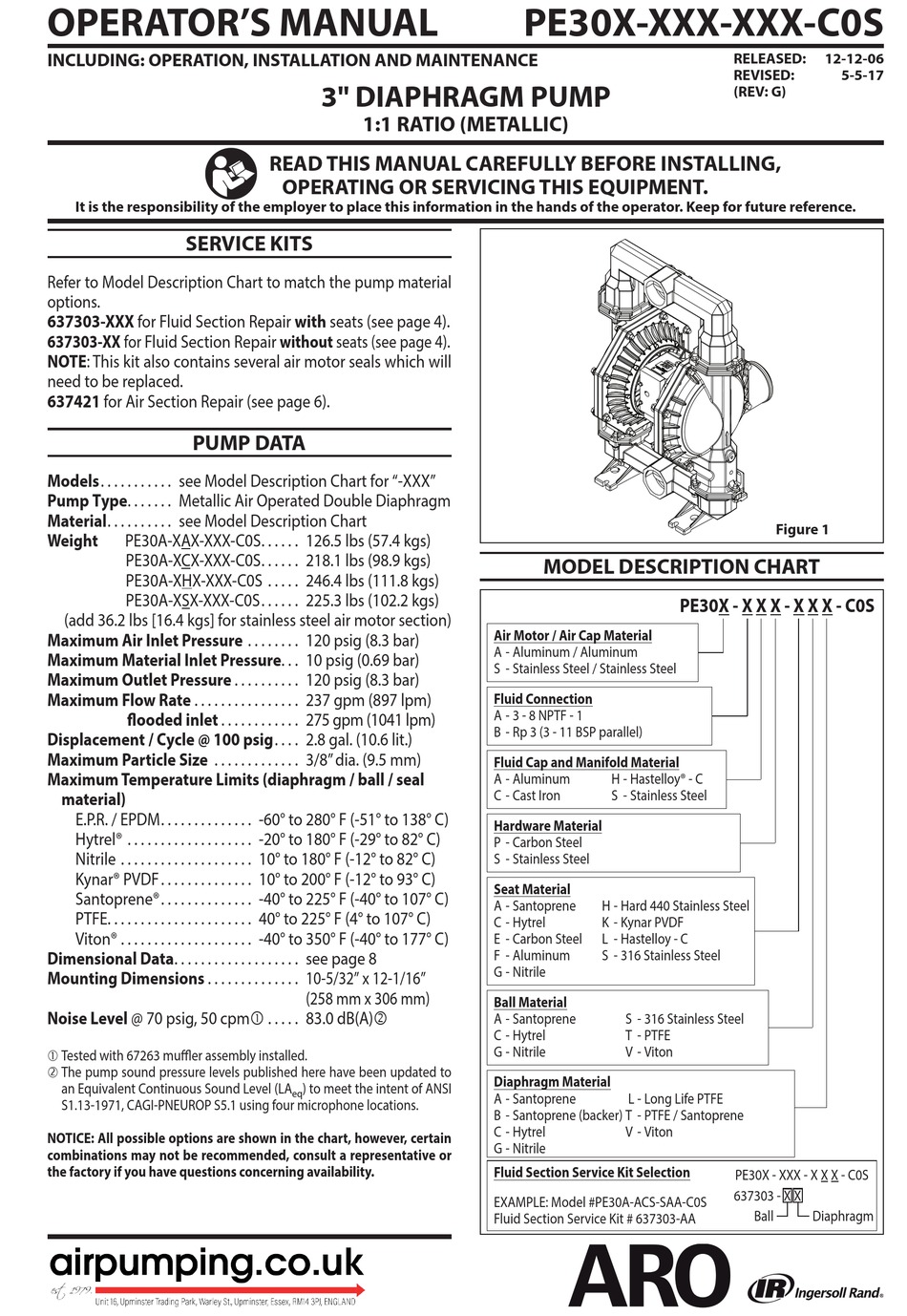

Ingersoll-Rand ARO PE30 C0S Series Operator's Manual

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump material
options.
637303-XXX for Fluid Section Repair with seats (see page 4).
637303-XX for Fluid Section Repair without seats (see page 4).
NOTE: This kit also contains several air motor seals which will
need to be replaced.
637421 for Air Section Repair (see page 6).
PUMP DATA
Models . . . . . . . . . . . see Model Description Chart for "-XXX"
Pump Type . . . . . . . Metallic Air Operated Double Diaphragm
Material . . . . . . . . . . see Model Description Chart
Weight
PE30A-XAX-XXX-C0S . . . . . . 126.5 lbs (57.4 kgs)
PE30A-XCX-XXX-C0S . . . . . . 218.1 lbs (98.9 kgs)
PE30A-XHX-XXX-C0S . . . . . 246.4 lbs (111.8 kgs)
PE30A-XSX-XXX-C0S . . . . . . 225.3 lbs (102.2 kgs)
(add 36.2 lbs [16.4 kgs] for stainless steel air motor section)
Maximum Air Inlet Pressure . . . . . . . . 120 psig (8.3 bar)
Maximum Material Inlet Pressure . . . 10 psig (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . . 120 psig (8.3 bar)
Maximum Flow Rate . . . . . . . . . . . . . . . . 237 gpm (897 lpm)
flooded inlet . . . . . . . . . . . . 275 gpm (1041 lpm)
Displacement / Cycle @ 100 psig . . . . 2.8 gal. (10.6 lit.)
Maximum Particle Size . . . . . . . . . . . . . 3/8" dia. (9.5 mm)
Maximum Temperature Limits (diaphragm / ball / seal
material)
E.P.R. / EPDM . . . . . . . . . . . . . . -60° to 280° F (-51° to 138° C)
Hytrel® . . . . . . . . . . . . . . . . . . . -20° to 180° F (-29° to 82° C)
Nitrile . . . . . . . . . . . . . . . . . . . . 10° to 180° F (-12° to 82° C)
Kynar® PVDF . . . . . . . . . . . . . . 10° to 200° F (-12° to 93° C)
Santoprene® . . . . . . . . . . . . . . -40° to 225° F (-40° to 107° C)
PTFE. . . . . . . . . . . . . . . . . . . . . . 40° to 225° F (4° to 107° C)
Viton® . . . . . . . . . . . . . . . . . . . . -40° to 350° F (-40° to 177° C)
Dimensional Data . . . . . . . . . . . . . . . . . . . see page 8
Mounting Dimensions . . . . . . . . . . . . . . 10-5/32" x 12-1/16"
Noise Level @ 70 psig, 50 cpm  . . . . . 83.0 dB(A) 
 Tested with 67263 muffler assembly installed.
 The pump sound pressure levels published here have been updated to
an Equivalent Continuous Sound Level (LA
S1.13-1971, CAGI-PNEUROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart, however, certain
combinations may not be recommended, consult a representative or
the factory if you have questions concerning availability.
3" DIAPHRAGM PUMP
1:1 RATIO (METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
(258 mm x 306 mm)
) to meet the intent of ANSI
eq
PE30X-XXX-XXX-C0S
MODEL DESCRIPTION CHART
Air Motor / Air Cap Material
A - Aluminum / Aluminum
S - Stainless Steel / Stainless Steel
Fluid Connection
A - 3 - 8 NPTF - 1
B - Rp 3 (3 - 11 BSP parallel)
Fluid Cap and Manifold Material
A - Aluminum H - Hastelloy® - C
C - Cast Iron S - Stainless Steel
Hardware Material
P - Carbon Steel
S - Stainless Steel
Seat Material
A - Santoprene H - Hard 440 Stainless Steel
C - Hytrel K - Kynar PVDF
E - Carbon Steel L - Hastelloy - C
F - Aluminum S - 316 Stainless Steel
G - Nitrile
Ball Material
A - Santoprene S - 316 Stainless Steel
C - Hytrel T - PTFE
G - Nitrile V - Viton
Diaphragm Material
A - Santoprene L - Long Life PTFE
B - Santoprene (backer) T - PTFE / Santoprene
C - Hytrel V - Viton
G - Nitrile
Fluid Section Service Kit Selection
EXAMPLE: Model #PE30A-ACS-SAA-C0S
Fluid Section Service Kit # 637303-AA
RELEASED: 12-12-06
REVISED: 5-5-17
(REV: G)

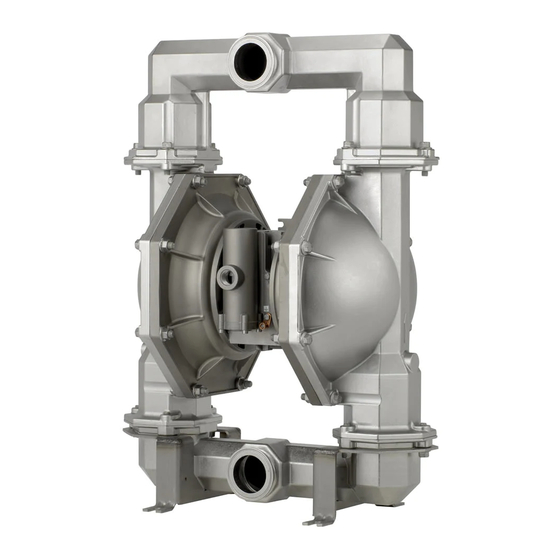

Figure 1
PE30X - X X X - X X X - C0S
PE30X - XXX - X X X - C0S
637303 - X X
Ball Diaphragm
