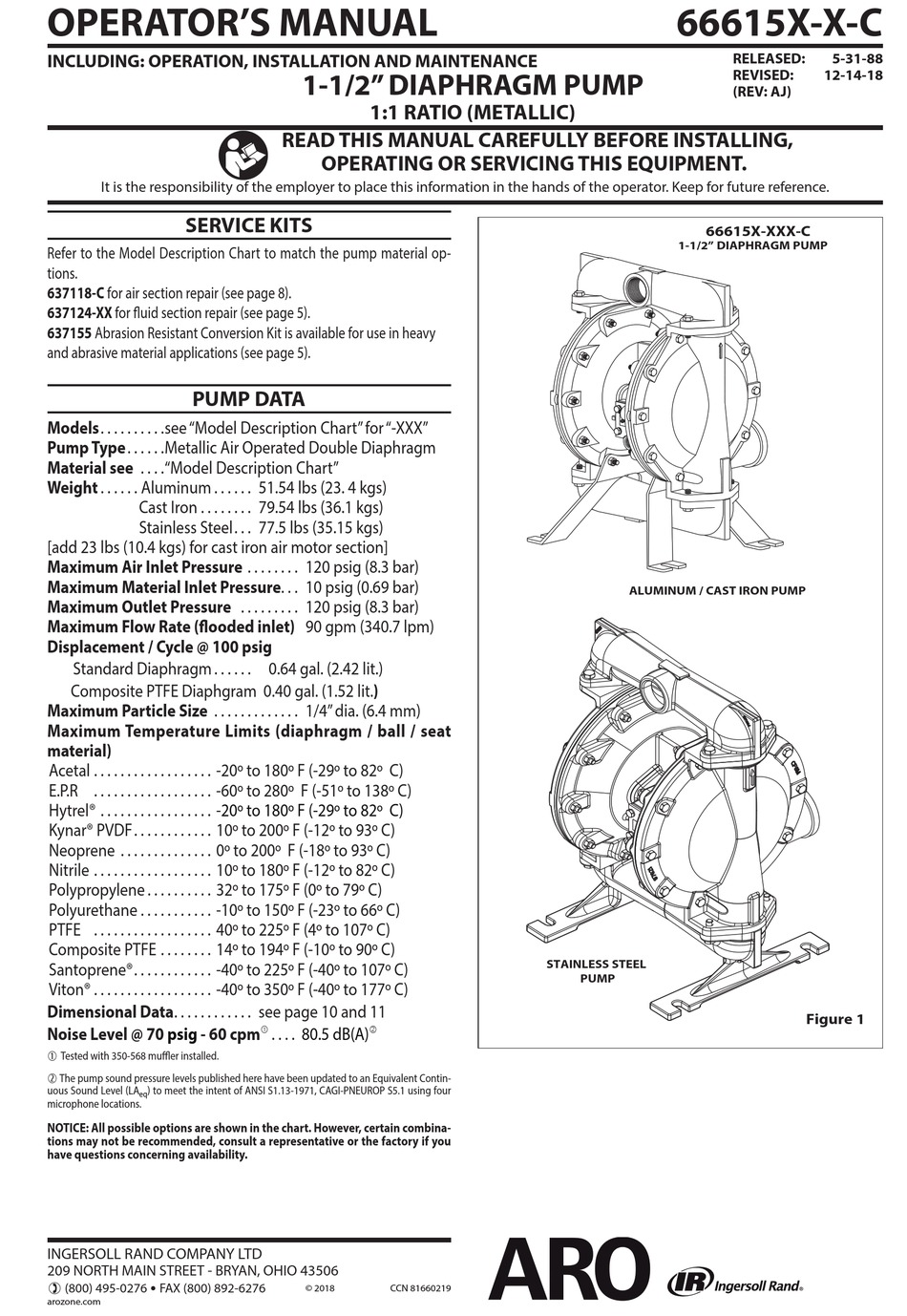

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to the Model Description Chart to match the pump material op-
tions.
637118-C for air section repair (see page 8).
637124-XX for fluid section repair (see page 5).
637155 Abrasion Resistant Conversion Kit is available for use in heavy
and abrasive material applications (see page 5).
PUMP DATA
Models . . . . . . . . . .see "Model Description Chart" for "-XXX"
Pump Type . . . . . .Metallic Air Operated Double Diaphragm
Material see . . . ."Model Description Chart"
Weight . . . . . . Aluminum . . . . . . 51.54 lbs (23. 4 kgs)
Cast Iron . . . . . . . . 79.54 lbs (36.1 kgs)
Stainless Steel . . . 77.5 lbs (35.15 kgs)
[add 23 lbs (10.4 kgs) for cast iron air motor section]
Maximum Air Inlet Pressure . . . . . . . . 120 psig (8.3 bar)
Maximum Material Inlet Pressure . . . 10 psig (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . 120 psig (8.3 bar)
Maximum Flow Rate (flooded inlet) 90 gpm (340.7 lpm)
Displacement / Cycle @ 100 psig
Standard Diaphragm . . . . . . 0.64 gal. (2.42 lit.)
Composite PTFE Diaphgram 0.40 gal. (1.52 lit.)
Maximum Particle Size . . . . . . . . . . . . . 1/4" dia. (6.4 mm)
Maximum Temperature Limits (diaphragm / ball / seat
material)
Acetal . . . . . . . . . . . . . . . . . . -20º to 180º F (-29º to 82º C)
E.P.R . . . . . . . . . . . . . . . . . . -60º to 280º F (-51º to 138º C)
Hytrel® . . . . . . . . . . . . . . . . .
-20º to 180º F (-29º to 82º C)
Kynar® PVDF . . . . . . . . . . . . 10º to 200º F (-12º to 93º C)
Neoprene . . . . . . . . . . . . . . 0º to 200º F (-18º to 93º C)
Nitrile . . . . . . . . . . . . . . . . . . 10º to 180º F (-12º to 82º C)
Polypropylene . . . . . . . . . . 32º to 175º F (0º to 79º C)
Polyurethane . . . . . . . . . . . -10º to 150º F (-23º to 66º C)
PTFE . . . . . . . . . . . . . . . . . . 40º to 225º F (4º to 107º C)
Composite PTFE . . . . . . . . 14º to 194º F (-10º to 90º C)
Santoprene® . . . . . . . . . . . . -40º to 225º F (-40º to 107º C)
Viton® . . . . . . . . . . . . . . . . . . -40º to 350º F (-40º to 177º C)
Dimensional Data . . . . . . . . . . . . see page 10 and 11
Noise Level @ 70
psig
- 60 cpm
Tested with 350-568 muffler installed.
The pump sound pressure levels published here have been updated to an Equivalent Contin-
uous Sound Level (LA
) to meet the intent of ANSI S1.13-1971, CAGI-PNEUROP S5.1 using four
eq
microphone locations.
NOTICE: All possible options are shown in the chart. However, certain combina-
tions may not be recommended, consult a representative or the factory if you
have questions concerning availability.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET - BRYAN, OHIO 43506
(800) 495-0276
FAX (800) 892-6276
arozone.com

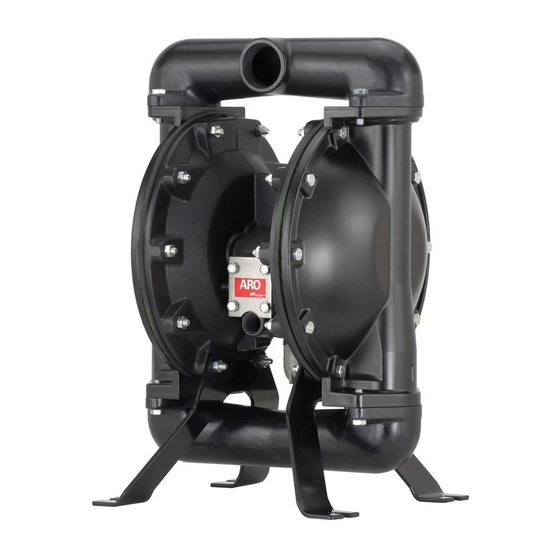

1-1/2" DIAPHRAGM PUMP
1:1 RATIO (METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
. . . .
80.5 dB(A)
© 2018
CCN 81660219
66615X-X-C
66615X-XXX-C
1-1/2" DIAPHRAGM PUMP
ALUMINUM / CAST IRON PUMP
STAINLESS STEEL
PUMP
RELEASED:
5-31-88
REVISED:
12-14-18
(REV: AJ)
Figure 1
