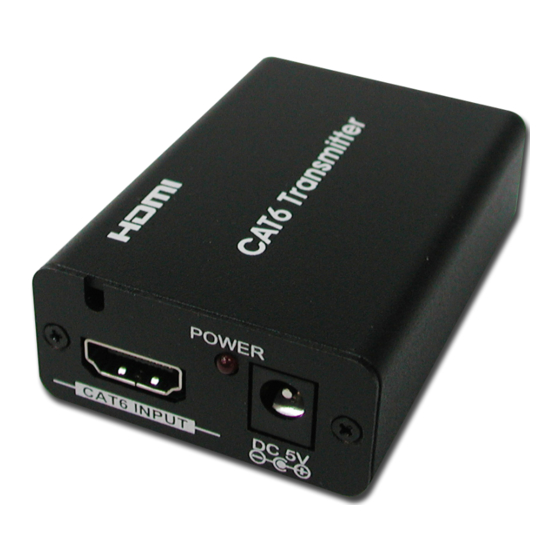

- Page 1 CH-103TX HDMI v1.3 to CAT6 Transmitter Operation Manual CH-103TX...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. Introduction................. 1 2. Main Features................1 3. Package Contents..............1 4. Hardware Description..............1 4.1 Front Panel................1 4.2 Rear Panel................1 5. Connection and Installation............2 6. Specifications................3... -
Page 4: Introduction
1. Introduction This is the transmitter (Tx) unit of HDMI to CAT6 Solution that can extend HDMI digital signal through CAT-6 cables for a distance up to 35 meters at 1080p/10bits. This is compatible to HDMI v1.3 specifications, a cutting-age technology which defines the new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio, with a bandwidth up to 225MHz. -
Page 5: Connection And Installation
CAT-5/CAT-5E/CAT-6 cable. 5. Connection and Installation DVD PLAYER HDMI Cable POWER HDMI INPUT VIDEO DC 5V CAT6 INPUT CAT6 OUTPUT CH-103TX Front CH-103TX Rear VIDEO POWER HDMI OUTPUT DC 5V CAT6 OUTPUT CH-103RX Rear HDMI Cable HDMI LCD TV... -
Page 6: Specifications
6. Specifications Input port 1 x HDMI Output ports 1 x CAT-6 for Video, 1 x CAT6 for DDC Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 50(W) x 62(D) x 23(H) Weight(g) Chassis Material Aluminum Silk Skin Color Black Operating Temperature Operating from 0°C ~ 48°C... - Page 7 2008.1.14 MPM-CH103TX...
- Page 8 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw...
- Page 9 CH-103RX HDMI v1.3 to CAT6 Receiver Operation Manual CH-103RX...
- Page 11 TABLE OF CONTENTS 1. Introduction................. 1 2. Main Features................1 3. Package Contents..............1 4. Hardware Description..............1 4.1 Front Panel................1 4.2 Rear Panel................1 5. Connection and Installation............2 6. Specifications................3...
-
Page 12: Introduction
1. Introduction This is the Receiver (Rx) unit of CAT6 to HDMI Solution that can receive the digital signal through CAT-6 cables for a distance up to 35 meters at 1080p/10bits. This is compatible to HDMI v1.3 specifications, a cutting-age technology which defines the new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio, with a bandwidth up to 225MHz. -
Page 13: Connection And Installation
AC wall outlet. 5. Connection and Installation DVD PLAYER HDMI Cable POWER HDMI INPUT VIDEO DC 5V CAT6 INPUT CAT6 OUTPUT CH-103TX Front CH-103TX Rear VIDEO POWER HDMI OUTPUT DC 5V CAT6 OUTPUT CH-103RX Rear HDMI Cable HDMI LCD TV... -
Page 14: Specifications
6. Specifications Input ports 1 x CAT-6 for Video, 1 x CAT6 for DDC Output port 1 x HDMI Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 50(W) x 62(D) x 23(H) Weight(g) Chassis Material Aluminum Silk Skin Color Black Operating Temperature Operating from 0°C ~ 48°C... - Page 15 2008.1.14 MPM-CH103RX...
- Page 16 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw...
