Intellijel Tangrams Manual page 8

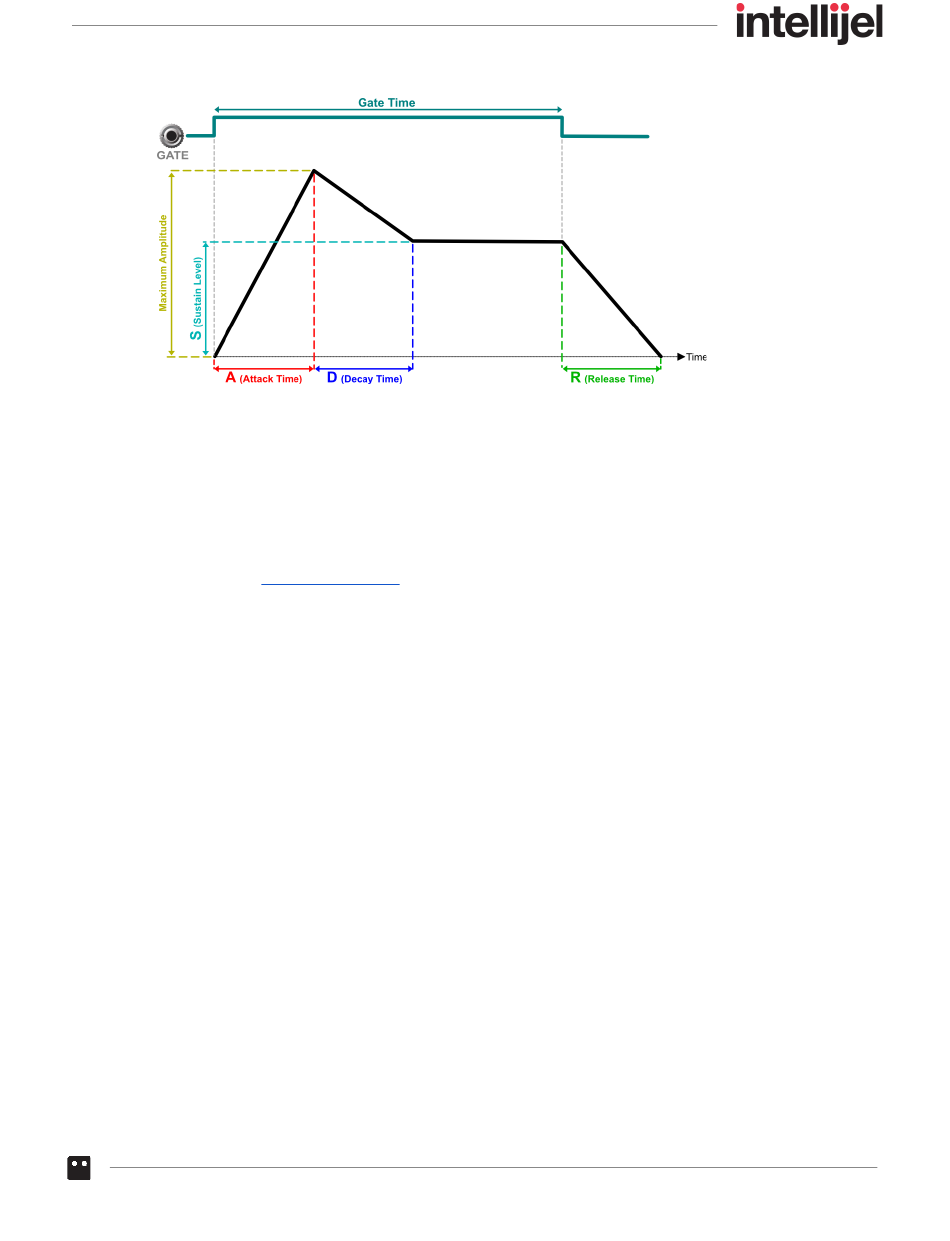

[1.5] ENV 1 MANUAL GATE button - Press this button to gate the envelope (just as if you had
patched a gate signal into the ENV 1 GATE IN
down, the gate is high (+5V), as indicated by the ENV 1 LEVEL Indicator
IMPORTANT : The envelope's MANUAL GATE is OR'd with the GATE IN
meaning the envelope is gated if either is high. It will also be OR'd with the PULSER when
you set the ENV 1 PULSE SOURCE
position. The PULSER controls
[1.6] ENV 1 LEVEL indicator - The brightness of this LED varies with the level of Envelope 1. The
brighter the LED, the higher the envelope's amplitude.
[1.7] ENV 1 SPEED switch - Selects the overall scaling of the Envelope 1 times, with LOW
speeds at the bottom, HI speeds in the middle, and MED speeds on top. Specifically:
● F(AST)
● MED
● SLOW
[3.9]
are discussed fully, later in this manual.
Fastest overall envelope, good for percussive sounds.
Approximate maximum times are:
A : ~1.5 to 2.0 s
D/R : ~4 to 5 s
Medium speed envelope, good for most sound design duties.
Approximate maximum times are:
A : ~10 to 12 s
D/R : ~22 to 24 s
Long, slow envelope good for pads, drones, and evolving sounds.
Approximate maximum times are:
A : ~20 to 27 s
D/R : ~45 to 50 s
Tangrams Manual
[1.A] jack. As long as the button is held
switch to something other than the middle "X"
[1.6] LED.
[1.A] signal,
8
