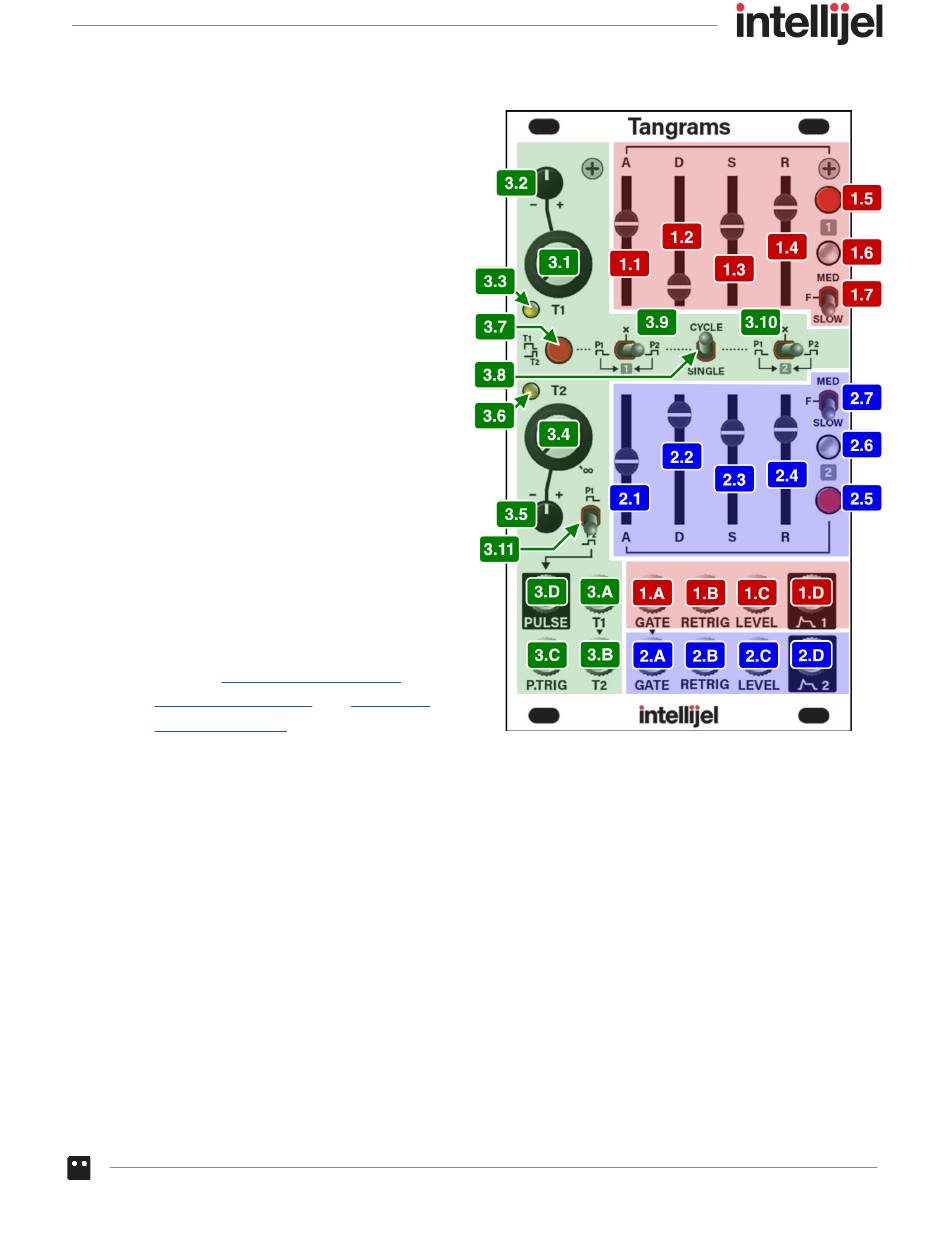

[3.4] T2 knob - T2 sets the length of
PULSE 2.
In SINGLE mode, this ranges from 1ms
(counterclockwise) to ∞ (clockwise)
with 2 seconds at the "noon" position.
In CYCLE mode, the maximum pulse
length changes to 16 sec (clockwise).
You can modulate T2 via the
T2 CV IN [3.B]
T2 CV attenuverter
When PULSE 1 (whose length is set
by T1 [3.1] ) ends, PULSE 2
immediately. The CYCLE
determines whether this PULSE 1 >
PULSE 2 sequence plays a single
time, or if it cycles repeatedly.
The two PULSE SELECT
switches determine whether the
PULSER is OR'd with an envelope's
GATE source (and how); while the
PULSE OUT POLARITY
sets whether PULSE 1 or PULSE 2
generates a HIGH gate via the PULSE
OUT [3.D] jack.
See the SINGLE-SHOT Pulse /
Envelope Examples
Pulse Examples
manual.
[3.5] T2 CV Attenuverter - Scales the amount (and polarity) of the voltage sent into the
T2 CV IN [3.B]
clockwise, and the voltage is attenuated as you rotate the knob counter-clockwise toward
noon (straight up). At the noon (straight up) position, the incoming CV is fully attenuated,
meaning it has no effect on T2. Turning the knob counterclockwise from the noon position
inverts the incoming T2 control voltage (positive voltages become negative, and vice-versa),
with the voltage level steadily increasing until the full (but inverted) range is reached when
the knob is fully counter-clockwise.
[3.6] PULSE 2 INDICATOR LED - Lights when PULSE 2 is playing, and is off when it's not.
[3.7] PULSER MANUAL TRIGGER - Press this button to start a stopped single-shot PULSER, or
to reset a running PULSER to the beginning of PULSE 1. It's OR'd with the P.TRIG IN
jack, which performs the same triggering function.
and its corresponding
[3.5] .
follows it
[3.8] switch
[3.9][3.10]
[3.11] switch
and CYCLING
sections, later in this
jack. The full range of the T2 control voltage is used when the knob is fully
