Intellijel Tangrams Manual page 15

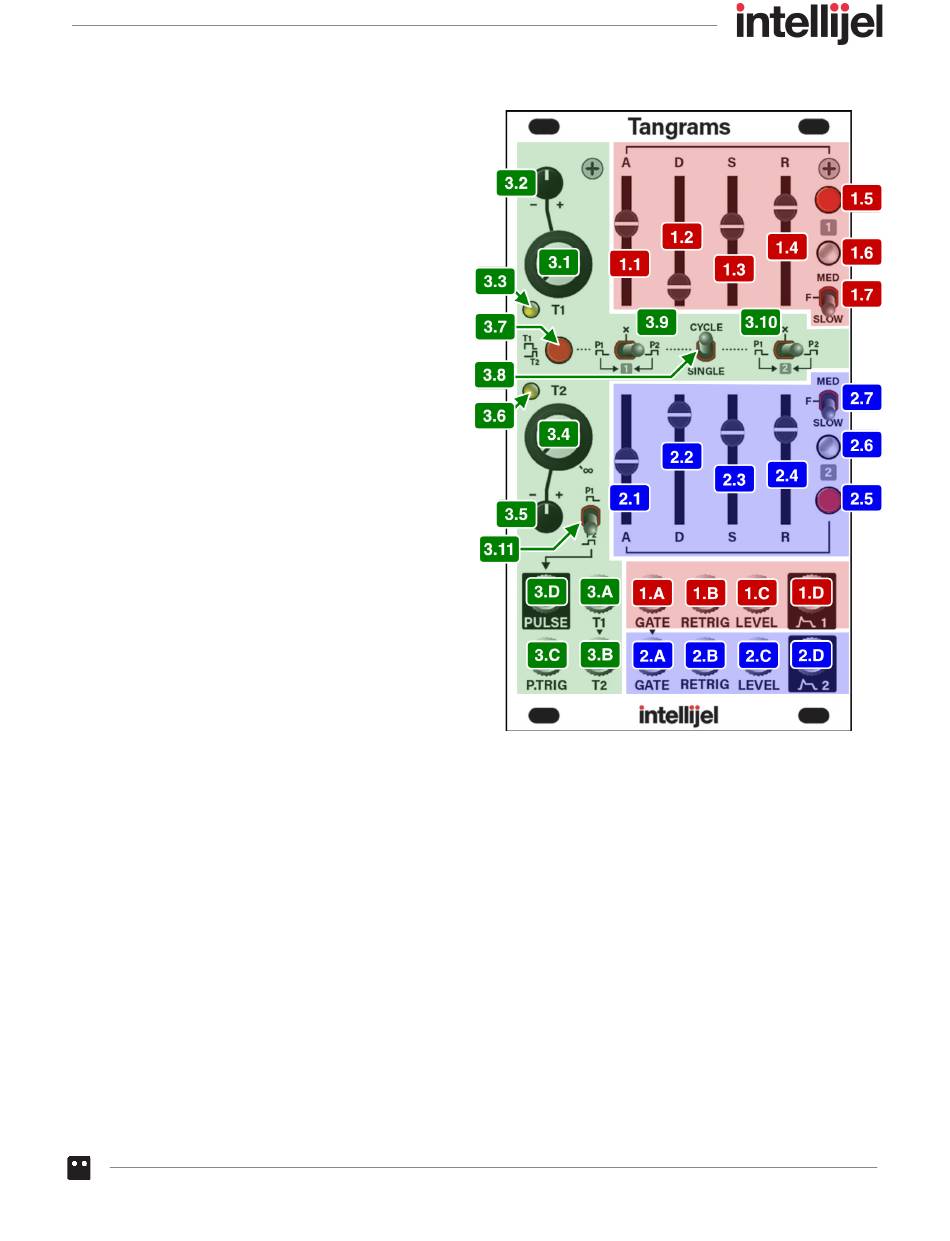

[3.9] ENV 1 PULSE SOURCE switch - Sets
the Pulse source for Envelope 1.
● LEFT (PULSE 1) : In this position,
PULSE 1 generates the HIGH
GATE, which lasts for the length of
T1 [3.1] . It's OR'd with the
ENV 1 GATE IN
ENV 1 MANUAL GATE
button.
● MID (PULSER = OFF): In this
position, the PULSER is ignored
by Envelope 1, and the envelope
is gated only with its own GATE
inputs.
● RIGHT (PULSE 2) : In this
position, PULSE 2 generates a
HIGH GATE, which lasts for the
length of T2
the completion of PULSE 1. It's
OR'd with the
ENV 1 GATE IN
ENV 1 MANUAL GATE
button.
[3.10] ENV 2 PULSE SOURCE switch - Sets
the Pulse source for Envelope 2.
● LEFT (PULSE 1) : In this position, PULSE 1 generates the HIGH GATE, which lasts for
the length of T1
ENV 2 MANUAL GATE
● MID (PULSER = OFF): In this position, the PULSER is ignored by Envelope 2, and the
envelope is gated only with its own GATE inputs.
● RIGHT (PULSE 2) : In this position, PULSE 2 generates a HIGH GATE, which lasts for
the length of T2
ENV 2 GATE IN
[1.A] jack and the
[1.5]
[3.4] , and begins after
[1.A] jack and the
[1.5]
[3.1] . It's OR'd with the ENV 2 GATE IN
[2.5] button.
[3.4] , and begins after the completion of PULSE 1. It's OR'd with the
[2.A] jack and the ENV 2 MANUAL GATE
Tangrams Manual
[2.A] jack and the
[2.5] button.
