Silhouette
Lo-Carbon SELV RANGE
Installation and Wiring Instructions
FAN UNITS 12V DC SELV (CLASS III)
CONTROLLER 220-240V 50Hz MAINS SUPPLY (CLASS II)
WITH 12V DC SELV OUTPUT
PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH ILLUSTRATIONS.
PLEASE SAVE THESE INSTRUCTIONS.
Stock Ref. N°
441511A
(100SVB)
441512A
(100SVT)
441513A
(100SVH)
IPX7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vent-Axia 441511A

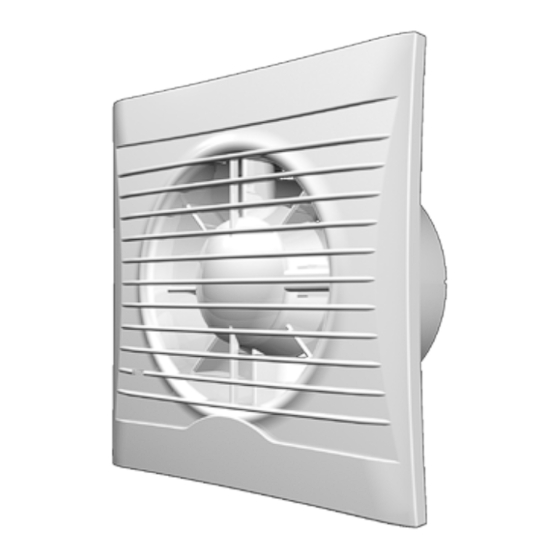

Summary of Contents for Vent-Axia 441511A
- Page 1 Silhouette Lo-Carbon SELV RANGE Installation and Wiring Instructions Stock Ref. N° 441511A (100SVB) 441512A (100SVT) 441513A (100SVH) FAN UNITS 12V DC SELV (CLASS III) CONTROLLER 220-240V 50Hz MAINS SUPPLY (CLASS II) WITH 12V DC SELV OUTPUT IPX7 PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH ILLUSTRATIONS.
- Page 2 K. The exterior grille should be at least 2.3m above the ground to prevent people from being able to access moving parts. If the external grille is positioned between 0-2.3m from the ground, Please use the Vent-Axia wall kit as detailed below to ensure people cannot access the fans impeller from the outside.
- Page 3 Ducted Applications. These fans can be used with short lengths of rigid ducting, but check details first with your Vent-Axia sales centre. Where an excessive amount of moisture is present in the air, a condensation trap will need to be installed in the exhaust duct.
- Page 4 B. WIRING. WARNING: THE FAN AND ANCILLARY CONTROL EQUIPMENT MUST BE ISOLATED FROM THE POWER SUPPLY DURING THE INSTALLATION / OR MAINTENANCE. IMPORTANT • The Controller MUST be surface mounted to allow air to freely circulate around the unit. When installed in a loft void it MUST NOT be enclosed or covered with insulation. •...
- Page 5 Fig. 1 Siting fan. Fig. 2. Lo-Carbon Silhouette 100SVB 1 Phase Supply (220-240V 50Hz). FUSE 12V D.C SELV Supply Switched Fused Spur (3A) Controller Fig. 3. Lo-carbon Silhouette 100SVT & 100SVH 12V D.C SELV Supply Controller...
- Page 6 TIMER ADJUSTMENT (100SVT AND 100SVH MODELS) BEFORE ADJUSTING THE TIMER, SWITCH OFF THE MAINS SUPPLY. TIMER SHOULD ONLY BE ADJUSTED BEFORE OR DURING INSTALLATION. Remove the fan grille. The overrun timer is factory set to approximately 15 minutes. This timer period can be adjusted between approximately 3-30 minutes by altering the adjuster on the control PCB.
- Page 7 LED Operation The LED will be on whenever the fan is running. C. SERVICING AND MAINTENANCE. WARNING: THE FAN AND ANCILLARY CONTROL EQUIPMENT MUST BE ISOLATED FROM THE POWER SUPPLY DURING MAINTENANCE. 1. At intervals appropriate to the installation, the fan should be inspected and cleaned to ensure there is no build up of dirt or other deposits.
- Page 8 Vent-Axia guarantees its products for two years from date of purchase against faulty material or workmanship. In the event of any part being found to be defective, the product will be repaired, or at the Company’s option replaced, without charge, provided that the product:- •...
