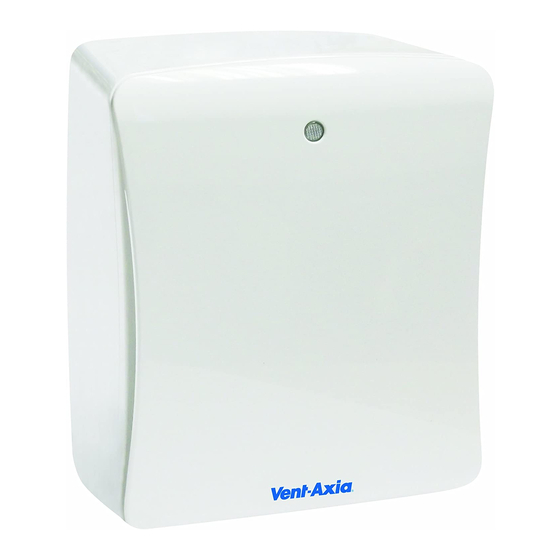

- Page 1 SOLO Plus Centrifugal Bathroom/Toilet Fan Installation and Wiring Instructions Stock Ref. N° 427477B (P) 427478B (T) 427479B (HT) 427480B (TM) 220-240V~50Hz PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH THE ILLUSTRATIONS. PLEASE SAVE THESE INSTRUCTIONS IPX4...
-
Page 3: Safety And Guidance Notes
For wall installations a Wall Kit (25 41 02 White / 25 41 00 Brown) can be used. An optional filter is also available (449265). Please see our catalogue or web site (www.vent-axia.com) for more information on System 25/50 and for alternative ducting and termination options. -
Page 4: Panel Mounting (Flush)
3. Remove the Spigot Ring from inside the carton and clip over the Spigot Adaptor making sure the lip on the Spigot Ring locates firmly inside the groove on the Spigot Adaptor (Fig 2). Ensure that the Spigot Adaptor is firmly located onto the Base Housing and the shutter is still securely fastened and fully functional. -
Page 5: Servicing And Maintenance
IMPORTANT: Do not link across terminals 1 and 2. The SOLO Plus P models do not have the ability to switch from ‘constant trickle’ to Normal or High speed Boost. The fan can switch from Off to either Trickle, Normal or High speed (Fig 9). For Constant Trickle, Normal or High speed (with no boost option), switch the Pull-cord (P model only) into the On position and cut the string. - Page 6 2. If a filter is fitted, remove the filter and wash in warm soapy water. 3. Wipe the inlets and front face with a damp cloth until clean. 4. Once the filter is dry it can be replaced. The fan has sealed for life bearings, which do not require lubrication. Fig.
- Page 7 Fig. 8. Settings - T/HT/TM model Fig. 9. Settings – P model IMPORTANT: Do not link across terminals 1 and 2 The SOLO Plus P models Low speed Normal do not have the ability to Link terminals 2 and 3 speed boost switch from ‘constant...
- Page 8 Fig. 10. P/TM wiring diagram Pullcord on P model only Fig. 11. T/HT wiring diagram...
-
Page 9: Product Fiche
For Residential Ventilation Units (Complying Commission Delegated Regulation (EU) No 1254/2014) Name: Vent-Axia Vent-Axia Vent-Axia Vent-Axia Solo Plus HT - Solo Plus TM - Model ID (Stock Ref.) : Solo Plus P - 427477 Solo Plus T - 427478 427479 427480 SEC Class SEC Value ('Average') 13.97 15.72 26.23 26.23... - Page 10 Notes:-...
- Page 12 Vent-Axia guarantees its products for two years from date of purchase against faulty material or workmanship. In the event of any part being found to be defective, the product will be repaired, or at the Company’s option replaced, without charge, provided that the product:- •...
