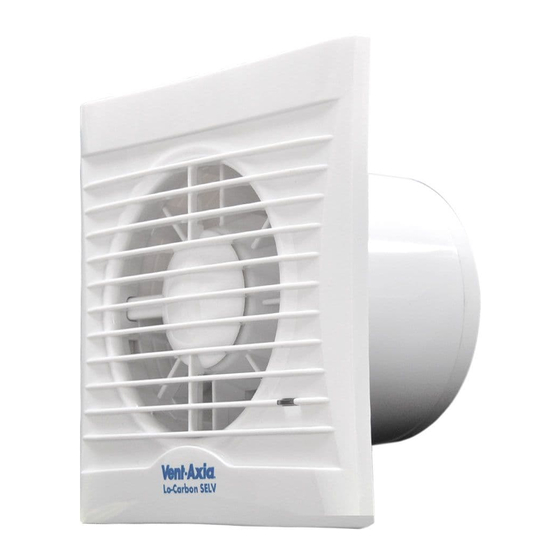

Silhouette
Lo-Carbon SELV RANGE
Installation and Wiring Instructions
FAN UNITS 12V DC SELV (CLASS III)
CONTROLLERS 220-240V 50Hz MAINS SUPPLY (CLASS II)
WITH 12V DC SELV OUTPUT
PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH ILLUSTRATIONS.
PLEASE SAVE THESE INSTRUCTIONS.
(H Model only)
Stock Ref. N°
441511
(100SV)
441512
(100SVT)
441513
(100SVH)
IPX7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vent-Axia Lo-Carbon Silhouette SELV Series
Summary of Contents for Vent-Axia Lo-Carbon Silhouette SELV Series
- Page 1 Silhouette Lo-Carbon SELV RANGE Installation and Wiring Instructions Stock Ref. N° 441511 (100SV) 441512 (100SVT) 441513 (100SVH) (H Model only) FAN UNITS 12V DC SELV (CLASS III) CONTROLLERS 220-240V 50Hz MAINS SUPPLY (CLASS II) WITH 12V DC SELV OUTPUT IPX7 PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH ILLUSTRATIONS.
- Page 2 C. Ensure that the mains supply (Voltage, Frequency, and Phase) complies with the rating label. D. The fan should only be used in conjunction with the appropriate Vent-Axia products. E. It is recommended that the connection to the fan connector terminals is made with flexible cable.
- Page 3 Ducted Applications. These fans can be used with short lengths of rigid ducting, but check details first with your Vent-Axia sales centre. Where an excessive amount of moisture is present in the air, a condensation trap will need to be installed in the exhaust duct.
- Page 4 AFTER INSTALLATION ENSURE IMPELLER ROTATES FREELY B. WIRING. WARNING: THE FAN AND ANCILLARY CONTROL EQUIPMENT MUST BE ISOLATED FROM THE POWER SUPPLY DURING THE INSTALLATION / OR MAINTENANCE. NOTE: The Controller MUST be surface mounted to allow air to freely circulate around the unit.
- Page 5 Timer Adjustment. The overrun time period is factory set to 15 minutes. The overrun time period may be adjusted from 5-25 minutes, by altering the adjuster on the back of the Control Timer. Before adjusting the timer, switch off the Mains Supply. 1.
- Page 6 SALES ENQUIRIES: Tel: 0844 8560590 Fax: 01293 565169 TECHNICAL SUPPORT: Tel: 0844 8560595 Fax: 01293 539209 For details of the warranty and returns procedure please refer to www.vent-axia.com or write to Vent-Axia Ltd, Fleming Way, Crawley, RH10 9YX 441516A 0509...
