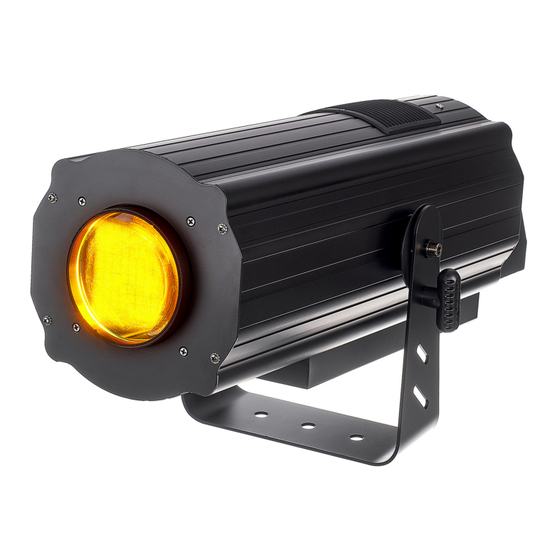

- Page 1 FS-x350 LED Follow Spot, FS-x150 LED Follow Spot Follow Spot...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 19.10.2023, ID: 478626, 537967 (V3)
-
Page 3: Table Of Contents
Table of contents Table of contents General information......................5 1.1 Symbols and signal words................... 5 Safety instructions......................... 6 Features............................8 Installation..........................9 Starting up..........................11 Connections and controls....................12 Operating..........................14 7.1 Main menu........................14 7.2 Functions in DMX mode..................... 17 Technical specifications.................... - Page 4 FS-x350 LED Follow Spot, FS-x150 LED Follow Spot Follow Spot...
-
Page 5: General Information
General information General information This document contains important instructions for the safe operation of the product. Read and follow the safety instructions and all other instructions. Keep the document for future reference. Make sure that it is available to all those using the product. If you sell the product to another user, be sure that they also receive this document. -
Page 6: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended for use as an electronic lighting effect by means of LED tech‐ nology. The device is designed for professional use only and is not suitable for use in households. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 7 Safety instructions NOTICE! Damage to the device if operated in unsuitable ambient conditions! The device can be damaged if it is operated in unsuitable ambient conditions. Only operate the device indoors within the ambient conditions specified in the “Technical specifications” chapter of this user manual. Avoid operating it in environments with direct sunlight, heavy dirt and strong vibrations.
-
Page 8: Features
Features Features The follow spot is particularly suitable for professional lighting tasks and is recom‐ mended for distances of up to 30 meters. Special features of the device: Control via DMX (6 channels) and via buttons and display on the unit Control of iris, dimmer and strobe via fader on the device Adjustable fade time, (0.5 s to 30 s) Master / Slave function... -
Page 9: Installation
Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. You can install the unit on a follow spot stand, on the ceiling or a crossbeam. - Page 10 Installation Please note that this device must not be connected to a dimmer. FS-x350 LED Follow Spot, FS-x150 LED Follow Spot Follow Spot...
-
Page 11: Starting Up
Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. -
Page 12: Connections And Controls
Connections and controls Connections and controls Righthand view ö & 1 Operating panel on the rear side of the unit 2 Ventilation opening 3 Locking screw for the mounting bracket 4 Mounting bracket Steplessly adjustable mounting bracket for installing the unit on a follow spot stand stand. The bracket can be mounted rotated by 180 degrees to attach the device to the ceiling or a crossbeam. - Page 13 Connections and controls 8 Display [MENU] | Opens the main menu. Exits a submenu. [ENTER] | Confirms a selected value. [UP] | Increases the displayed value by one. [DOWN] | Decreases the displayed value by one. 9 Controller for setting the lighting effects [IRIS] | Control for adjusting the iris diaphragm.
-
Page 14: Operating
Operating Operating 7.1 Main menu Starting the device Connect the device to the power grid. The display indicates a system reset. The device is then ready for use. The device is controlled using the buttons and faders. Navigating the menu Press [MENU] to activate the main menu. - Page 15 Operating Press [UP] or [DOWN] to select the desired value and confirm the selection with [ENTER]. Submenu Value Function ‘Power On ‘Total’ Shows the total number of hours that the Time’ device was connected to the power supply. ‘Resetable’ Shows the hours that the device has been connected to the power supply since the last reset.
- Page 16 Operating Setting the dimmer curve Press [MENU] to activate the main menu. Press [UP] or [DOWN] until the display shows ‘Dimmer Curve’ and confirm the selection with [ENTER]. Press [UP] or [DOWN] to select the desired submenu and confirm the selection with [ENTER].
-
Page 17: Functions In Dmx Mode
Operating Firmware version Press [MENU] to activate the main menu. Press [UP] or [DOWN] until the display shows ‘Firmware’ and confirm the selec‐ tion with [ENTER]. ð The current firmware version is displayed. Reset Press [MENU] to activate the main menu. Press [UP] or [DOWN] until the display shows ‘Reset’... - Page 18 Operating Channel Value Function Iris 000…255 Iris: adjusts the diameter of the light beam, from closed to open Dimmer 000…255 Dimmer, increasing intensity Strobe effect 000…255 Strobe effect, increasing speed from 0…20 Hz Reset 000…199 No function 200…239 Reset. The device is reset to factory default settings. 240…255 No function FS-x350 LED Follow Spot, FS-x150 LED Follow Spot...
-
Page 19: Technical Specifications
Technical specifications Technical specifications FS-x350 LED Follow Spot (item no. 478626) Light source 1 × LED, 300 W 770 mm Light source properties Colour temperature 8000 K Optical properties Beam angle 10 ° FOCUS Control Buttons, faders and display on the unit Number of DMX channels 270 mm Input connections... - Page 20 Technical specifications FS-x150 LED Follow Spot (item no. 537967) Light source 1 × LED, 150 W 560 mm Light source properties Colour temperature 8000 K Optical properties Beam angle 10 ° FOCUS Control Buttons, faders and display on the unit Number of DMX channels 270 mm Input connections...
-
Page 21: Plug And Connection Assignments
Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equipment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’... -
Page 22: Fehlerbehebung
Fehlerbehebung Fehlerbehebung NOTICE! Data transfer errors due to improper wiring! If the DMX connections are wired incorrectly, this can cause errors during the data transfer. Do not connect the DMX input and output to audio devices, e.g. mixers or amplifiers. Use special DMX cables for the wiring instead of normal microphone cables. -
Page 23: Cleaning
Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating envi‐ ronment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device. -
Page 24: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging material For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 25 Notes FS-x350 LED Follow Spot, FS-x150 LED Follow Spot Follow Spot...
- Page 26 Notes FS-x350 LED Follow Spot, FS-x150 LED Follow Spot Follow Spot...
- Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
