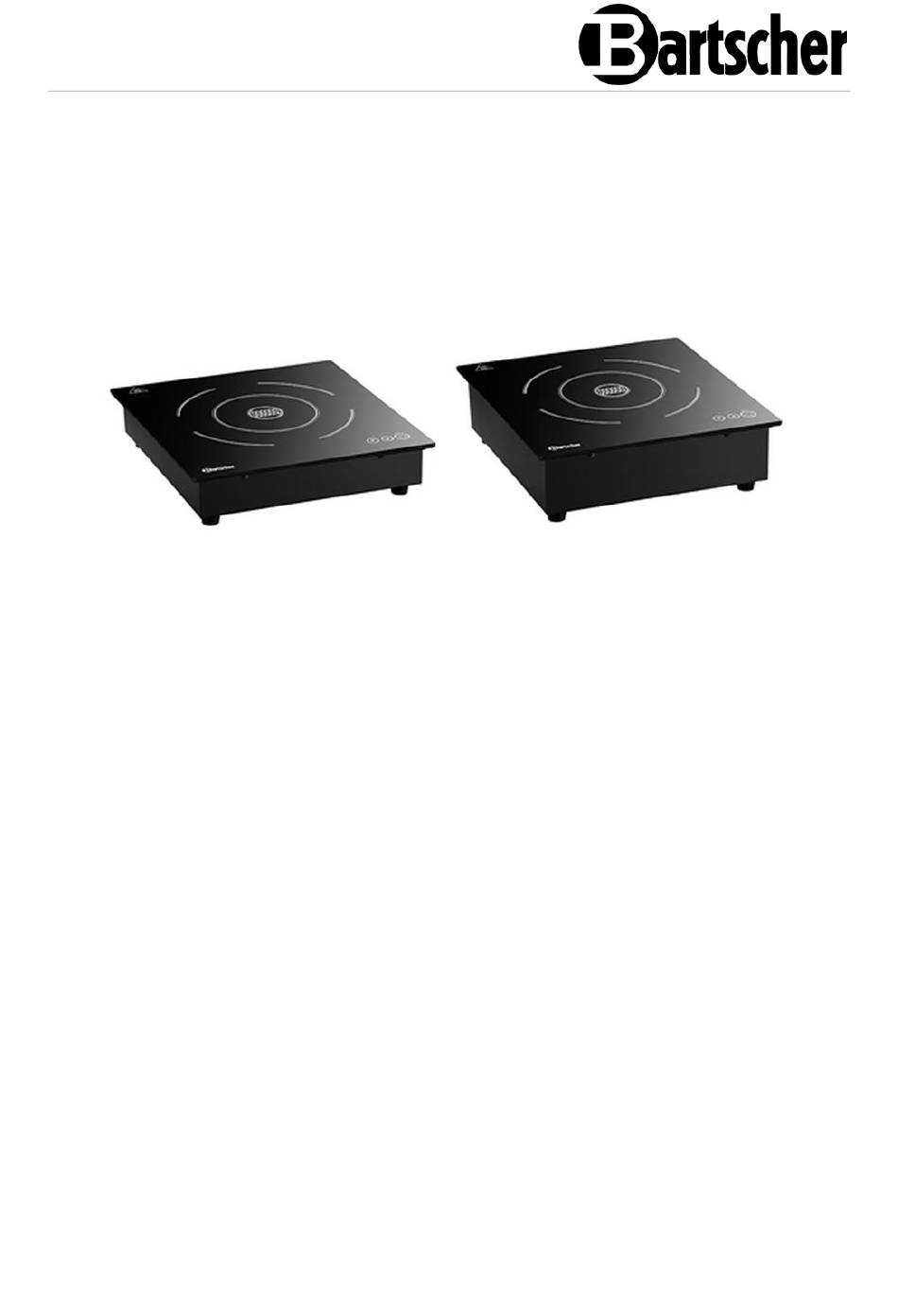

- Page 1 201TC - 351TC 105827 - 105860...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2023-05-31...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 7 Unintended Use ..................7 General information ..................8 Liability and Warranty ................8 Copyright Protection ................8 Declaration of Conformity ................ 8 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety • Do not heat up sealed containers, e.g. canned food, on the heating area of the induction cooker. Resulting overpressure may cause explosion (rupture) of a container or a can. The canned food is best to open it, put it in a pot filled with water and place the pot on a heating area in order to heat it up.
- Page 8 Safety Supervised Usage only • Only supervised appliance may be used. • Always remain in an immediate vicinity of the appliance. Operating personnel • This appliance is not intended to be used by persons (including children) with limited physical, sensory or mental capabilities, nor by persons with limited experience and/or limited knowledge.
-
Page 9: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Preparing and heating-up foods with the use of suitable cookware. This appliance is intended for use in households and similar places, e.g.: –... -
Page 10: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 11: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 12: Technical Data
• Digital display • ON/OFF switch • Indicator lights: ON/OFF • Can be flush-mounted Name: Built-in induction cooker 201TC 105827 Art. No.: Material: steel Heating plate material: glass Number of hobs: Glass hob dimensions (W x D), in mm: 320 x 340... -
Page 13: Functions Of The Appliance
Technical Data Name: Built-in induction cooker 351TC 105860 Art. No.: Material: steel Heating plate material: glass Number of hobs: Glass hob dimensions (W x D), in mm: 320 x 340 Hob diameter, in mm: 120 - 230 Number of power output levels: Max. -
Page 14: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 1. Hob 2. Control panel 3. Feet (4 pcs) 4. Ventilation openings 5. Housing 6. Glass heating plate 12 / 22 105827... -
Page 15: Installation And Operation
Installation and operation Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it. - Page 16 Installation and operation Flush-Mounted Installation The appliance is designed to be installed in a worktop board. During installation, follow these indications: 1. Select a worktop board that is heat resistant to avoid deformation due to the heat radiation of the appliance. 2.
- Page 17 Installation and operation NOTE! As an alternative to the method described above, the appliance can be flush-mounted if the adjacent surface is made of stainless steel or other heat-resistant material. 4. Provide sufficient ventilation around the built-in appliance and make sure that the ventilation holes are not obstructed.
-
Page 18: Operation
Installation and operation Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. • Connect the appliance to a single, properly grounded mains socket with protective contact. Do not connect the appliance to a multi-socket. •... - Page 19 To obtain better results, use only pans/pots with a diameter of 12–22 cm. Example: Induction cooker cookware, Bartscher 9-piece set of cookware Chrome-nickel steel, anti-drip edges, non-heating handles 4 pots with lids 2.0 litre, 16 cm diameter, H 10.0 cm 2.7 litre, 18 cm diameter, H 11.0 cm...
- Page 20 Installation and operation Not Suitable Cookware • Containers with bulged bottoms • Aluminium, brass, copper cookware unless they are clearly indicated as suitable for induction • Pots/pans with a diameter below 12 cm • Cookware with feet • Ceramic cookware •...
- Page 21 Installation and operation Control Elements / Displayed Messages Fig. 4 7. Digital display 8. ON/OFF LED indicator light 9. ON/OFF key 10. Setting value increase key (power output) 11. Setting value decrease key (power output) Appliance Start-Up / Setting 1. Plug the appliance into a suitable single socket. ON/OFF LED indicator light flashes.
- Page 22 Installation and operation The following tables show the power of appliances according to power output levels set: 105827 / 201TC Level Power 1000 1200 1400 1500 2300 1600 1700 1900 2000 output 105860 / 351TC Level Power 1000 1400 1700 2000 2300 2600 2900 3100 3500...
-
Page 23: Cleaning
Cleaning Cleaning Safety Instructions for Cleaning • Before cleaning, disconnect the appliance from the power supply. • Leave the appliance to cool down completely. • Make sure water does not enter the appliance. Do not immerse the appliance in water or other liquids during cleaning. Do not clean the appliance with a pressurized water jet. -
Page 24: Disposal
Disposal Error code Cause Solution No cookware on a hob or Use only suitable cookware. inappropriate cookware. Appliance is getting too Open the passage through hot (e.g. due to ventilation openings. Leave the obstructed ventilation appliance to cool down and re-start. openings).
