Summary of Contents for Bartscher IK 30TC-1

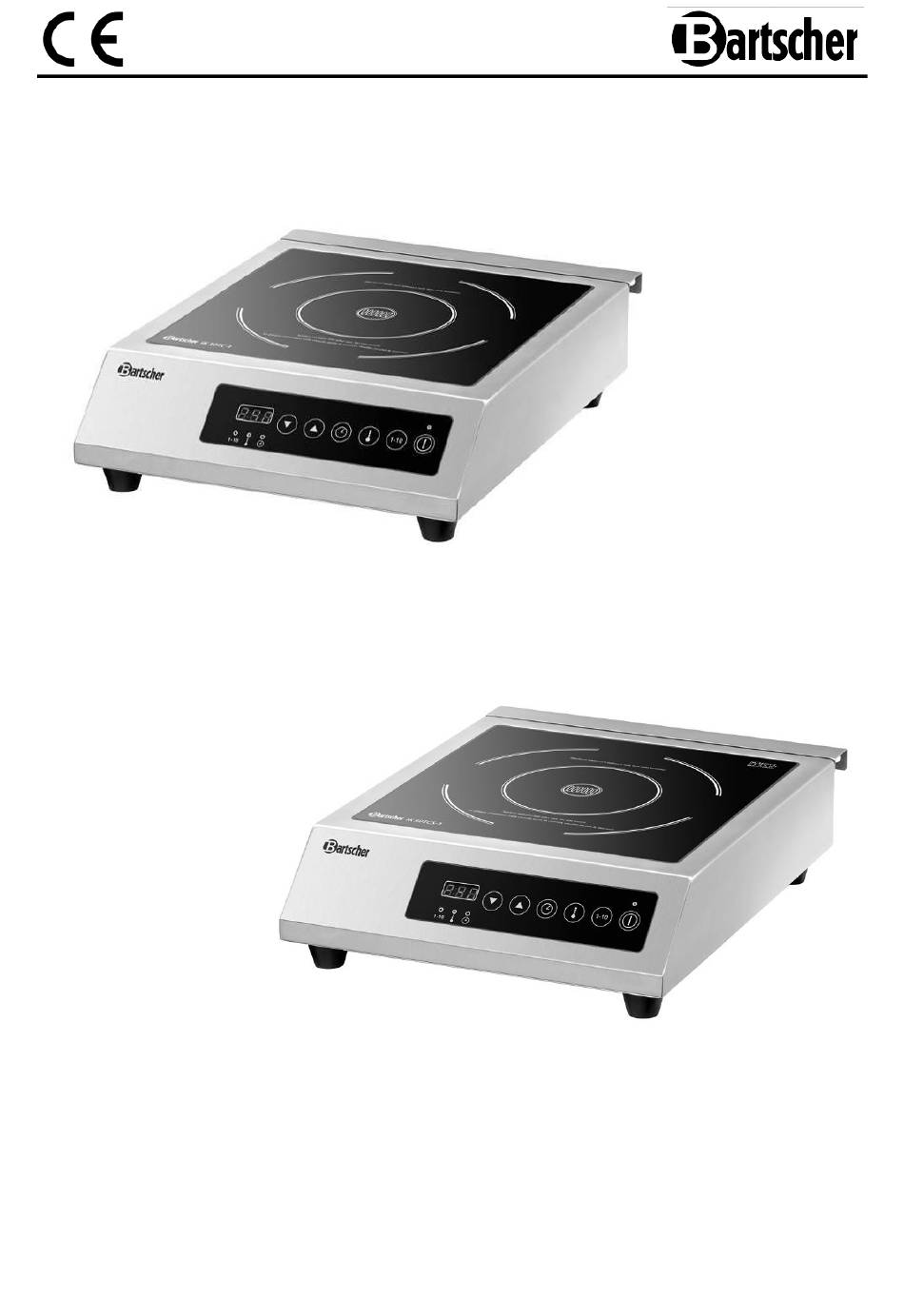

- Page 1 IK 30TC-1 / 105991 IK 30TCS-1 / 105991S Original-Gebrauchsanleitung V1/0718...
-
Page 2: Table Of Contents
6.1 Functionality of induction cookers ................ 36 6.2 Suitable and unsuitable cookware ................ 37 6.3 Operation ......................38 7. Cleaning ........................42 8. Possible malfunctions .................... 43 9. Waste disposal ......................44 Bartscher GmbH phone: +49 5258 971-0 Franz-Kleine-Str. 28 fax: +49 5258 971-120 33154 Salzkotten... -
Page 3: Safety
Read these instructions before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 4: Safety Instructions
HOT SURFACE! This symbol is a warning that the device surface is hot when in use. Ignoring this warning may result in burns! CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. CAUTION! Magnetic field! This symbol informs that the magnetic fields occurring during the device operation may cause interference. - Page 5 The device must be operated in correct and safe technical condition only. In case of operational problems disconnect the device from the power supply and contact the service company. Prevent access of children to the package materials like plastic bags and foamed polystyrene elements.
- Page 6 Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged. If this cable is damaged, it must be replaced by customer service or a qualified electrician in order to avoid dangers. ...
- Page 7 Do not place any metal kitchen utensils, pot covers, frying pans, knives, or other metal objects on the cooking field. After the device activation they may become very hot. Keep in mind that the objects like rings, watches, etc. may become hot in the vicinity of the cooking surface.
- Page 8 Do not heat closed containers, e.g. canned food, on the induction cooking field. The containers or cans may explode (crack) due to overpressure. Open the can and place it in the pot with some water heated on the cooking field. CAUTION! Electromagnetic field hazard! To avoid the hazard results please follow the instructions below.
-
Page 9: Intended Use
The cooking surface is made from glass resistant to high temperature. In case of damages or small cracks disconnect the device from the power supply immediately and contact the service. 1.3 Intended use Safe operation is only guaranteed when using the device for its intended purpose. Any technical interventions, as well as assembly and maintenance are to be made by a qualified customer service only. -
Page 10: General Information
2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 11: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 12: Technical Data
4. Technical data 4.1 Technical data Name Induction cooker 105991 / IK30TC-1 105991S / IK30TCS-1 Code-No. / type: Material: Stainless steel ® Material hob Glass SCHOTT CERAN Colour: Silver/black The connection of the device: ready to connect Hob: - Number: 1 - Type: induction - Diameter: 230 mm... -

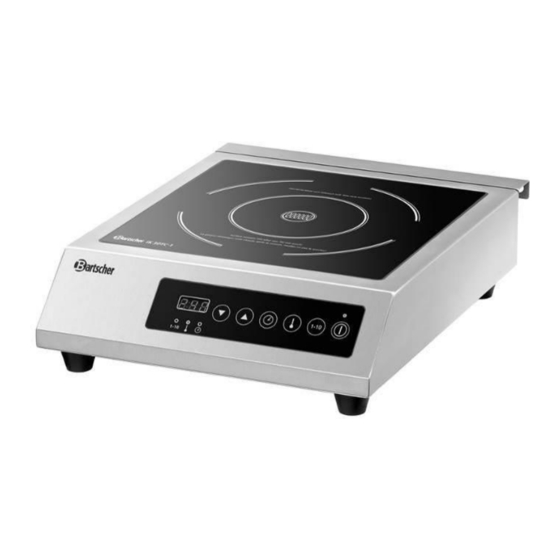

Page 13: Overview Of Parts
4.2 Overview of parts Heating plate Body Touch control panel Feet (4) Grease filter Grease filter The induction cooker is provided with a grease filter. It is located at the bottom of the device. The grease filter is to protect the body from dirt and grease sucked by the fan together with the air. -
Page 14: Installation
5. Installation 5.1 Positioning Unpack the device and remove all package materials according to the valid environment protection regulations. CAUTION! Never remove the rating plate and any warning signs from the device. Place the device on top of an even, stable, dry, and water-resistant surface which supports the weight of the device and is not heat sensitive. -
Page 15: Operation
6. Operation 6.1 Functionality of induction cookers With induction cooker, an electric voltage is applied on a conductor spool beneath the glass. This creates magnetic fields, which directly heat up the bottom of the cookware through a physical effect. This means saving time and energy, because contrary to common hotplates, the cookware is heated up, not the heating element and the glass. -
Page 16: Suitable And Unsuitable Cookware
12 cm and 26 cm for better > 12 cm results. e.g. Bartscher Induction cookware, 9-piece cooking pot set chromium-nickel steel ● edge suitable for pouring ● cold handles 4 pots with lid 1 pan 2.0 litres ● Ø 16 cm ● height 10.0 cm 2.8 litres ●... -
Page 17: Operation
Unsuitable cookware o Cookware with a convex bottom; o Aluminium, bronze or copper cookware. The exception is cookware clearly labeled as suitable for induction cookers; o Pots / pans with a diameter less than 12 cm; o Cookware with feet; o Ceramic cookware;... - Page 18 Touch control panel Digital display Selection button : Time, temperature or output level can be reduced Selection button : Time, temperature or output level can be increased Time setting key Temperature setting key Power level button 1 - 10 ON /Standby LED indicator ON/OFF button Time LED indicator Temperature LED indicator...
- Page 19 Settings Power When the ON/OFF button has been pressed the power level LED indicator is on. The control panel shows the the power level default setting “5“ and the device starts. The ON/Standby LED incidator stays lit at all times. NOTE! Unless within 30 seconds following pressing the ON/OFF button settings are introduced, the device automatically returns to the Standby mode.
- Page 20 Time When the operation mode (power level or temperature level) has been selected, you can set the cooking time. Press the button to set the time. The digital display shows “0“ and the time setting LED indicator is By the selection button you can set the operation time in the range 1 - 30 minutes with 1-minute intervals or in the range 30 –...
-
Page 21: Cleaning
7. Cleaning WARNING! Before cleaning disconnect the device from the power supply (pull the plug!). Wait for the device to cool down. The device is not suited for direct washing via water jets. Protect the device from the water penetration. CAUTION! Never use sharp or scouring cleaning agents which may scratch the surface of the device. -
Page 22: Possible Malfunctions
8. Possible malfunctions If there are any disruptions in the device operation and the display will show an error code check with the table below if the problem can be solved before you contact the customer service or supplier. Error Cause Solution code... -
Page 23: Waste Disposal
Electric devices should be used and disposed of properly to prevent the impact on the environment. Disconnect the device from the power supply and remove the power cord from the device. Bartscher GmbH phone: +49 5258 971-0 Franz-Kleine-Str. 28 fax: +49 5258 971-120...
