Summary of Contents for Bartscher IK3342

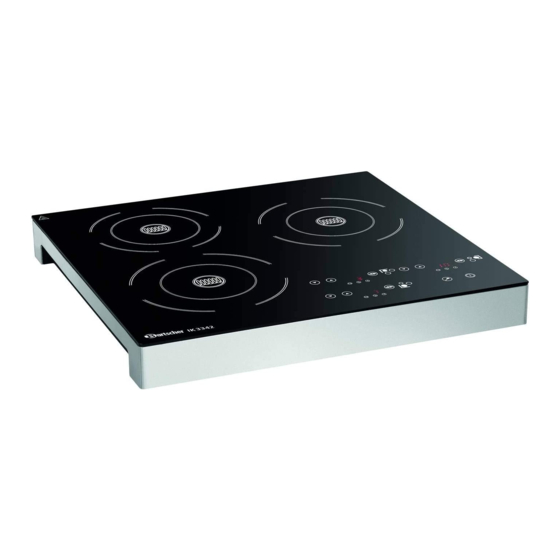

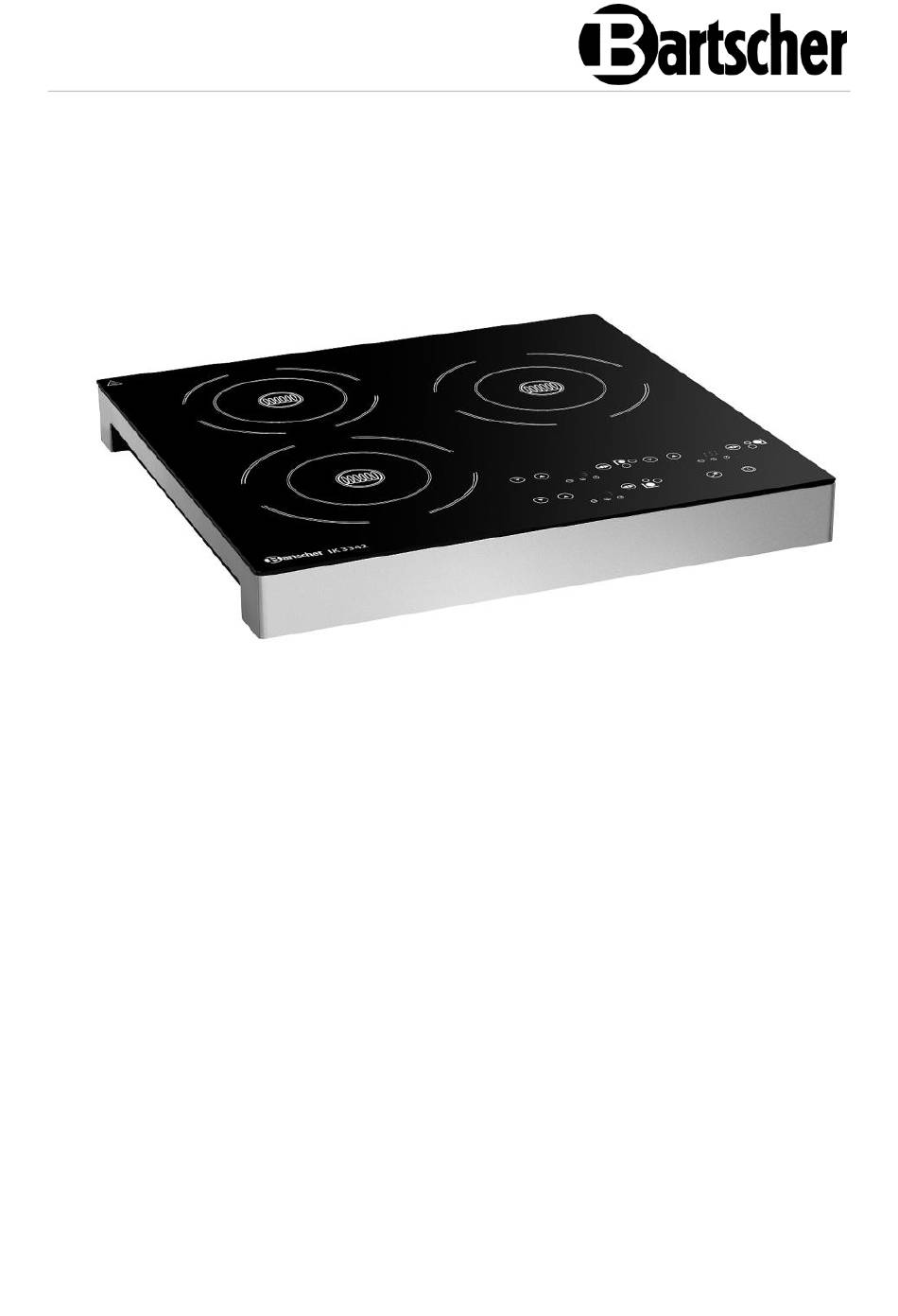

- Page 1 IK3342 105858...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2019-09-17...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of signal words ..............2 Safety instructions..................3 Intended use .................... 6 Unintended Use ..................6 General information ..................7 Liability and warranty ................7 Copyright protection ................. 7 Declaration of conformity ................. 7 Transport, packaging and storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. Flammable materials • Never subject the appliance to contact with high temperature sources, e.g.: oven, furnace, open flame, heat generating devices, etc.
- Page 7 Safety • You may transport and clean the appliance after it cools down entirely. • It is prohibited to sprinkle hot surfaces with cold water or flammable liquids. • Do not put metal kitchen utensils, lids, knifes nor any other metal objects on the heating area.
-
Page 8: Intended Use
Safety Intended use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Preparing and heating-up foods with the use of suitable cookware. Unintended Use An unintended use may lead to personal injuries or property damages caused by hazardous voltage, fire or high temperature. -
Page 9: General Information
General information General information Liability and warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, packaging and storage Transport, packaging and storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
Technical data Technical data Technical specifications Name: Induction cooker IK3342 105858 Item No.: Material: Plastic, ABS Heating plate material: IK3342 Number of hobs: Output level / max. output of the right-hand 1 - 10 / 1400 W side hob: Max. total output of the left-hand side hobs: 2000 W Output level / max. -
Page 12: List Of Components Of The Appliance
Technical data Version / Characteristics • Appliance connection: ready to plug in • Type of hobs: induction • Arrangement of hobs: 2 at the left, 1 at the right • Regulation of: output, temperature, time • ON/OFF button • Digital display •... -
Page 13: Functions Of The Appliance
Installation and operation Functions of the appliance The induction cooker is intended for preparation and heating of foods using appropriate cookware. Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. -
Page 14: Operation
Installation and operation • Do not place the appliance in the vicinity of devices or objects that are sensitive to magnetic fields (e.g. radio, television, etc.). • Leave at least 5 -10 cm clearance from flammable walls and other objects. •... - Page 15 To obtain better results, use only pans/pots with a diameter of 12–26 cm. Example: Induction cooker cookware, Bartscher 9-piece set of cookware Chrome-nickel steel, anti-drip edges, non-heating handles 4 pots with lids 2.0 litre, 16 cm diameter, H 10.0 cm 2.7 litre, 18 cm diameter, H 11.0 cm...
- Page 16 Installation and operation Before Use 1. Before use, clean the appliance, observing instructions in section 6 “Cleaning”. 2. Dry the appliance thoroughly. 3. Place the appropriate cookware with food in the middle of the selected hob. Operating Elements of Hobs 6.
- Page 17 Installation and operation Messages Displayed and Functions of Control Panel Buttons 12. Setting value increase button 13. Setting value decrease button 14. Digital display 15. Function selection button 16. Hob position symbol 17. Time setting LED indicator light 18. Temperature setting LED indicator light 19.
- Page 18 Installation and operation • The left-hand side front and rear hobs may be used independently or concurrently, but the 2,000 W power is divided between them. Possible Settings for Concurrent Usage of the Left-Hand Side Hobs Output level settings Left-hand side front hob Left-hand side rear hob...
- Page 19 Installation and operation The LED indicator lights for 1–10 or 1–5 output levels for respective hobs light up and in respective digital displays, the pre-set output level of 5 is shown. The appliance is ready to select the function. NOTE: To simmer or cook food (max.
- Page 20 Installation and operation Time 1. When the output or temperature are set, press the function selection button again to set the time. The time setting LED indicator light for a selected hob lights up, and 0 is shown on the digital display. 2.
- Page 21 Installation and operation Switching the hobs/appliance off 1. It is not possible to switch individual hobs off. Press the ON/OFF button and switch the appliance off. 2. Press the ON/OFF button again and input the settings for the selected hobs anew.
-
Page 22: Cleaning
Cleaning Cleaning Safety Instructions for cleaning • Before cleaning, disconnect the appliance from the power supply. • Leave the appliance to cool down completely. • Make sure water does not enter the appliance. Do not immerse the appliance in water or other liquids during cleaning. Do not clean the appliance with a pressurized water jet. -
Page 23: Possible Malfunctions
Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. Error code Cause Solution No cookware on a hob or Use an appropriate cookware. -
Page 24: Disposal
Disposal When malfunc tion c annot be removed: do not open the housi ng; infor m the ser vic e c ompany or c ontac t the s upplier and pr ovide the foll owing data: type of malfunction; When malfunction cannot be removed: –...
