INSTRUCTION MANUAL

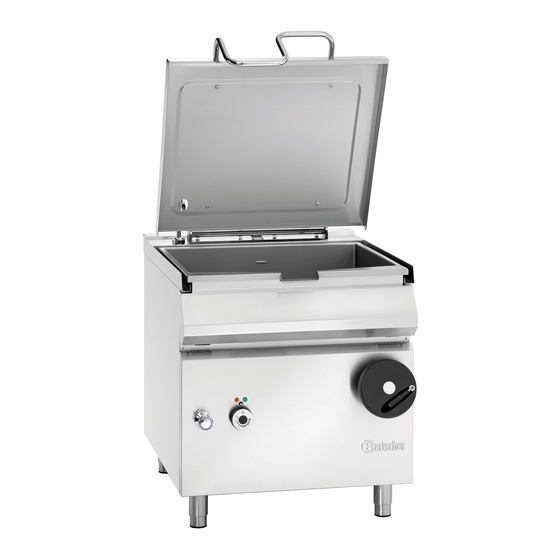

ELECTRIC TILTING COOKER
Instruction manual for installation, maintenance and use
Electric tilging cooker Serie 900
FOR INSTALLATION,
MAINTENANCE
AND USE
"SERIE 900"
296676
296606
12.15.01 – EN
12.15.01 - EN
23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 900 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Bartscher 900 Series

Summary of Contents for Bartscher 900 Series

  • Page 1 INSTRUCTION MANUAL FOR INSTALLATION, MAINTENANCE AND USE ELECTRIC TILTING COOKER “SERIE 900” 296676 296606 12.15.01 – EN Instruction manual for installation, maintenance and use 12.15.01 - EN Electric tilging cooker Serie 900...
  • Page 2 INDEX Part 1: General reminders and notes 1.1. General reminders 1.2. Technical data 1.3. Construction 1.4. Laws, technical prescriptions and directives 1.5. Special requirements for the installation site Part 2: Positioning, installation and maintenance 2.1. Positioning 2.2. Installation 2.2.1. Electrical connections and equipotential bonding 2.2.2.

  • Page 3: General Reminders

    1.1. GENERAL REMINDERS − Read the warnings contained in this manual carefully as they provide important information concerning safety during the installation, use and maintenance of the appliance. − Keep these instructions carefully! − Only personnel trained for its specific use should use the equipment. −...
  • Page 4 1.2. TECNICAL DATA ABLA Model External dimensions Electrics Electric cable Total power BRE92MF0 80 x 90 x 90 3/N/PE AC 400 V * 5 X 4 BRE92MD0 80 x 90 x 90 3/N/PE AC 400 V * 5 X 4 BRE93MF0 120 x 90 x 90 3/N/PE AC 400 V *...

  • Page 5: Special Requirements For The Installation Site

    1.3. CONSTRUCTION Robust steel structure on 4 adjustable feet. Exterior and top finish entirely made of stainless steel 18/10. Stainless steel pan with steel bpttpm in model BRE92MF0/BRE93MF0. Stainless steel vat lid, INOX (AISI 304) in model BRE92MD0/BRE93MD0. Lid in stainless steel, hinged and spring balanced in all opening positions. Hand tilting of the pan.

  • Page 6: Installation

    2.1. POSTIONING − Remove all the packaging and check that the appliance is in perfect conditions. In case of visible damage, do not connect the appliance and notify the sales point immediately. − Remove the PVC protection from the panels. −...

  • Page 7: Connection To Waterworks

    − Connect the terminal on the lower right-hand side marked with the international symbol a connector with a nominal cross section <10 mm . All the appliances installed and the earth system of the building shall be connected like this. It’s strictly forbidden using the pending electric cable connected with terminal board, overhanging from the frame, to connect definitely the machine.

  • Page 8: Possible Failures And Their Elimination

    It is also advisable to apply for a maintenance contract with the customer. 2.4.1. POSSIBLE FAILURES AND THEIR ELIMINATION Warning! : Only technically qualified service centres can perform the operations described below! Warning! : Before resetting the safety thermostat, it is always necessary to eliminate the problem causing its activation! Even a normal use of the appliance may cause operation inconveniences and failures.

  • Page 9: Warnings And Hints For User

    3.1. WARNINGS AND HINTS FOR USER − This manual contains all the instructions required for a proper and safe use of our appliances. Keep the manual in a safe place for future consultation! This appliance is for catering use, hence they must be used only by trained kitchen staff. The appliance must always be kept under control during use.
  • Page 10 3.3. CLEANING AND CARE OF THE APPLIANCE Do not use aggressive substances or abrasive detergents when cleaning the stainless steel components. Avoid using metal pads of the steel parts as they may cause rust. For the same reason avoid contact with materials containing iron.
  • Page 11 3.6. HOW TO PROCEED, IF … Maintenance operations and repairs must be performed only by specialists! Disconnect the appliance. After having removed the control knob, remove the control panel, the handle of water inlet tap and the handwheel for tilting of pan. EPLACEMENT OF HEATING ELEMENTS Disconnect the electric cables to heating elements.
  • Page 12 4.1. DIMENSIONI E POSIZIONE DEGLI ALLACCIAMENTI DIMENSIONS DE L’APPAREIL ET POSITIONS DES ARRIVEES SIZE OF APPLIANCE AND POSITION OF CONNECTIONS ABMESSUNGEN DES GERÄTS UND ANORDNUNG DER VERSORGUNGEN DIMENSIONES DEL APARATO Y UBICACIÓN DE LAS CONEXIONES MOD. BRE92MF0/BRE92MD0 LEGENDA – LEGENDE – LEGEND - LEYENDA: E - Allacciamento elettrico –...
  • Page 13 4.1.1. DIMENSIONI E POSIZIONE DEGLI ALLACCIAMENTI DIMENSIONS DE L’APPAREIL ET POSITIONS DES ARRIVEES SIZE OF APPLIANCE AND POSITION OF CONNECTIONS ABMESSUNGEN DES GERÄTS UND ANORDNUNG DER VERSORGUNGEN DIMENSIONES DEL APARATO Y UBICACIÓN DE LAS CONEXIONES MOD. BRE93MF0/BRE93MD0 LEGENDA – LEGENDE – LEGEND - LEYENDA: E - Allacciamenti elettrico –...
  • Page 14 4.2. SCHEMA ELETTRICO – SCHEMA ELECTRIQUE – WIRING DIAGRAM – ELEKTRISCHER SHALTPLAN - ESQUEMA ELÉCTRICO MOD. BRE92MF0/BRE92MD0 400V 3/N/PE AC LEGENDA – LEGENDE – LEGEND - LEYENDA: Morsettiera di arrivo linea – Bornier arrivée ligne – Termostato di lavoro – Thermostat de travail – Junction block –...
  • Page 15 4.2.1. SCHEMA ELETTRICO – SCHEMA ELECTRIQUE – WIRING DIAGRAM - ESQUEMA ELÉCTRICO MOD. BRE92MF0/BRE92MD0 230V 3/PE AC LEGENDA – LEGENDE – LEGEND - LEYENDA: Morsettiera di arrivo linea – Bornier arrivée Termostato di lavoro – Thermostat de travail – ligne – Junction block - Tabl. de bornes de llegada de Thermostat -Termostato de funcionamiento línea Interruttore generale –...
  • Page 16 4.2.2. SCHEMA ELETTRICO – SCHEMA ELECTRIQUE – WIRING DIAGRAM – ELEKTRISCHER SCHALPLAN - ESQUEMA ELÉCTRICO MOD. BRE93MF0/BRE93MD0 400V 3/N/PE AC LEGENDA – LEGENDE – LEGEND - LEYENDA: Morsettiera di arrivo linea – Bornier arrivée Termostato di lavoro – Thermostat de travail – ligne –...
  • Page 17 4.2.3. SCHEMA ELETTRICO – SCHEMA ELECTRIQUE –WIRING DIAGRAM – ELEKTRISCHER SHALTPLAN - ESQUEMA ELÉCTRICO MOD. BRE93MF0/BRE93MD0 230V 3/PE AC LEGENDA – LEGENDE – LEGEND - LEYENDA: Morsettiera di arrivo linea – Bornier arrivée Termostato di lavoro – Thermostat de travail – ligne –...
  • Page 18 4.2.4. SCHEMA ELETTRICO VERSIONE MOTORIZZATA SCHEMA ELECTRIQUE VERSION MOTORISEE - WIRING DIAGRAM MOTOR-VERSION ELEKTRISCHER SCHALTPLAN MOTOR-VERSION ESQUEMA ELÉCTRICO VERSION MOTORIZADO LEGENDA – LEGENDE – LEGEND - LEYENDA: Morsettiera di arrivo linea – Bornier arrivée ligne Finecorsa salita – Fin de course montée – –...
  • Page 19 4.3. RUBINETTO DI CARICO DELL’ACQUA PER LA VASCA DI COTTURA MANETTE D’ALIMENTATION DE L’EAU – KNOB FOR WATER INLET BEDIENNUNGSKNEBEL WASSERFÜLLUNG BOTÓN PARA EL CARGO DE LA AGUA SENSO DI CARICO SENSO DI CHIUSURA SENS DE CHARGEMENT SENS DE FERMETURE WAY FOR WATER INLET STOP WATER INLET DREHRICHTUNG FÜR WASSER FÜLLUNG...
  • Page 20 4.4. MANOPOLA DI COMANDO – POIGNEE DE COMMANDES - CONTROL KNOB – BEDIENUNGSGRIFF - MANDOS LEGENDA – LEGENDE – LEGEND - LEYENDA: A. Manopola di comando – Poignée de commandes – Control knob – Bedienungsgriff - Botón de mando B. Posizione di spento – Position éteinte – Off position – Geschlossenstellung - Posición de apagado C.
