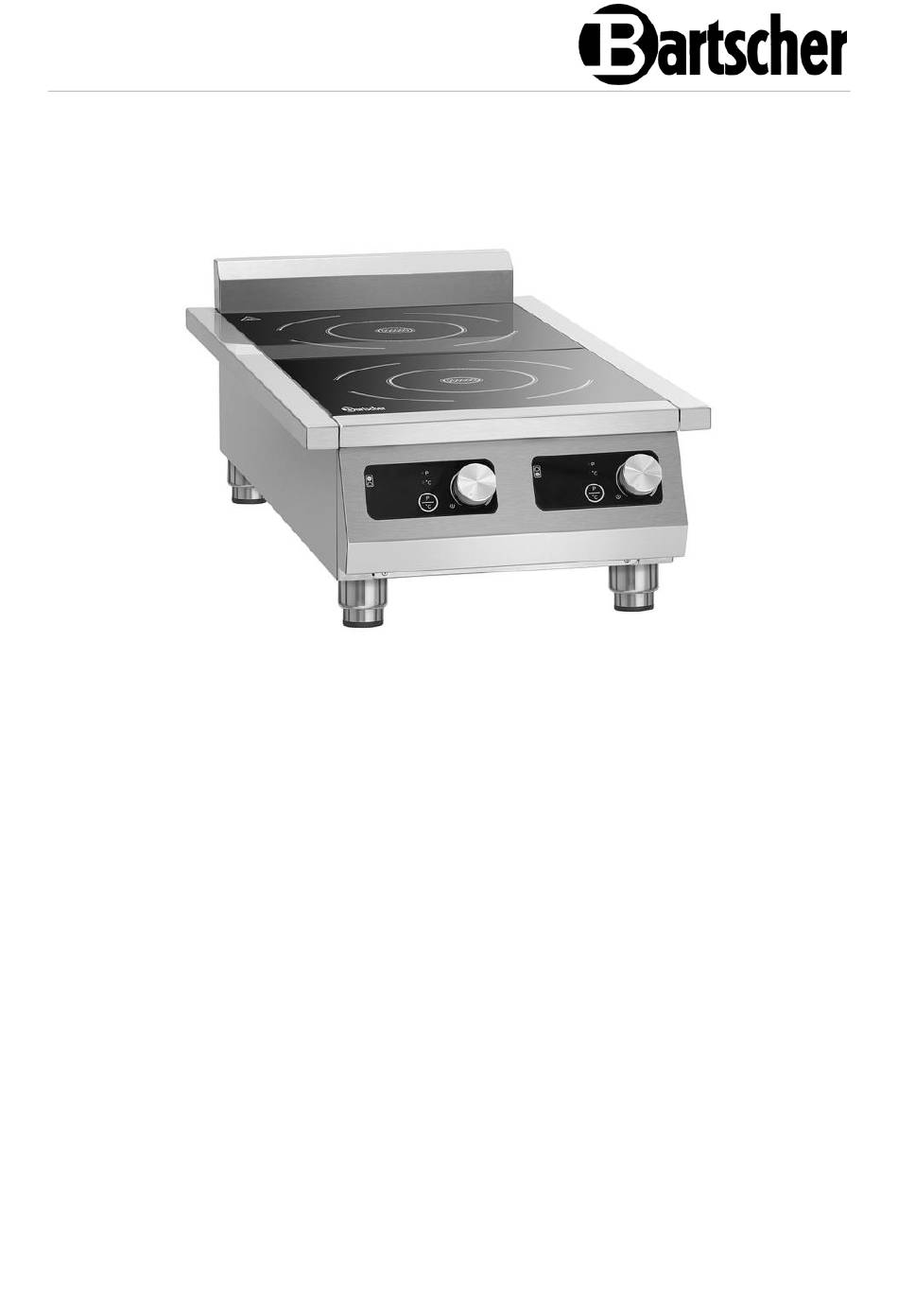

- Page 1 2P 35-1 TCK - 2P 50-1 TCK 105760 - 105761...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2023-08-25...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 7 Unintended Use ..................7 General information ..................8 Liability and Warranty ................8 Copyright Protection ................8 Declaration of Conformity ................ 8 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety • Do not heat up sealed containers, e.g. canned food, on the heating area of the induction cooker. Resulting overpressure may cause explosion (rupture) of a container or a can. The canned food is best to open it, put it in a pot filled with water and place the pot on a heating area in order to heat it up.
- Page 8 Safety Supervised Usage only • Only supervised appliance may be used. • Always remain in an immediate vicinity of the appliance. Operating personnel • This appliance is not intended to be used by persons (including children) with limited physical, sensory or mental capabilities, nor by persons with limited experience and/or limited knowledge.
-
Page 9: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Preparing and heating-up foods with the use of suitable cookware. Unintended Use An unintended use may lead to personal injuries or property damages caused by hazardous voltage, fire or high temperature. -
Page 10: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 11: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 12: Technical Data
Technical Data Technical Data Technical Specifications Version / Characteristics • Colour: silver / black • Equipment connection: – 105760: 1 NAC – 105761: 3 NAC • Type of hobs: induction • Hob arrangement: one after another • Control: rotary control, touch •... - Page 13 Technical Data Name: Induction cooker 2P 35-1 TCK 105760 Art. No.: Material: stainless steel Heating plate material: glass Number of hobs: Glass hob dimensions (W x D), in mm: 360 x 760 Front hob diameter, in mm: Rear hob diameter, in mm: Number of power output levels: Front hob max.
-
Page 14: Functions Of The Appliance
Technical Data Name: Induction cooker 2P 50-1 TCK 105761 Art. No.: Material: stainless steel Heating plate material: glass Number of hobs: Glass hob dimensions (W x D), in mm: 360 x 760 Front hob diameter, in mm: Rear hob diameter, in mm: Number of power output levels: Front hob max. -
Page 15: List Of Components Of The Appliance

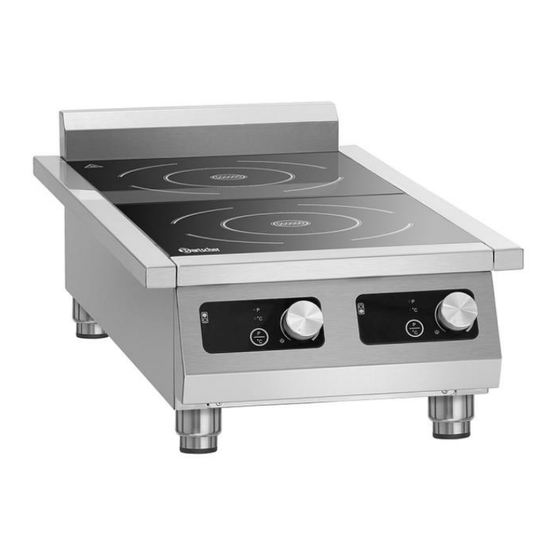

Technical Data List of Components of the Appliance Fig. 1 1. Upstand 2. Rear hob 3. Front hob 4. Housing 5. Height-adjustable feet (4x) 6. Control panel front hob 7. Control panel rear hob 8. Dust filter/ grease filter (2x) 9. - Page 16 Technical Data Dust/grease filter (8) Fig. 2 The induction cooker is provided with 2 dust filters/ grease filters (8). They are located at left bottom of the appliance. The dust filter and grease filter are to protect the body from dirt and grease sucked by the fan together with the air.
-
Page 17: Installation And Operation
Installation and operation Installation and operation Installation CAUTION! Incorrect installation, positioning, operation, maintenance or misuse of the appliance may lead to personal injury or property damage. Positioning and installation, as well as repairs may be performed by authorised technical service only and in compliance with the applicable national law. - Page 18 Installation and operation – sufficiently large, and thus enabling usage of the appliance with no problems; – easily accessible; – well ventilated. • Maintain sufficient clearance from table edges. The appliance might turn over and fall down. • Do not place the appliance in the vicinity of devices or objects that are sensitive to magnetic fields (e.g.
-
Page 19: Operation
Installation and operation Operation Method of operation of heating plates In induction cookers the electric voltage is applied to a conductive coil under the glass. This generates magnetic field, which being a physical effect, heats the bottom of a cookware directly. This translates to savings of time and energy, as —... - Page 20 Installation and operation Example: Induction cooker cookware, Bartscher 9-piece set of cookware Chrome-nickel steel, anti-drip edges, non-heating handles 4 pots with lids 2.0 litre, 16 cm diameter, H 10.0 cm 2.7 litre, 18 cm diameter, H 11.0 cm 5.1 litre, 24 cm diameter, H 11.5 cm 6.1 litre, 20 cm diameter, H 20.0 cm...
- Page 21 Installation and operation Before use 1. Before use, clean the appliance, observing instructions in section 6 'Cleaning'. 2. Dry the appliance thoroughly. 3. Place appropriate cookware with food in the middle of the selected hob. ATTENTION! In case of unsuitable cookware or lack of a cookware piece on the hob, an acoustic signal is heard after switching the appliance on, and then the appliance switches off.
- Page 22 Installation and operation Control elements / indicator lights Fig. 4 1. Hob position symbol 2. Digital display 3. LED control lights, power / temperature 4. Function button: power or temperature 5. OFF position of the control knob 6. Rotary controller Settings The following description concerns each control panel of the appliance.
-
Page 23: Cleaning
Cleaning Switching the appliance OFF 1. After the end of the cooking or heat maintenance process, rotate the knob counter-clockwise to the position The device switches off immediately. After the device completes operation, the fan cools down the appliance electronics for a minute, and then turns off. -
Page 24: Cleaning
Cleaning Cleaning 1. Clean the device regularly at the end of each working day, or more frequently if needed. 2. Clean the glass heating plate, control panel and housing with a soft, damp cloth and a mild, non-scrubbing cleaning agent. 3. -
Page 25: Possible Malfunctions
Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. In such a case, provide article number, model name and serial number. These data may be found in the rating plate. -
Page 26: Disposal
Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
