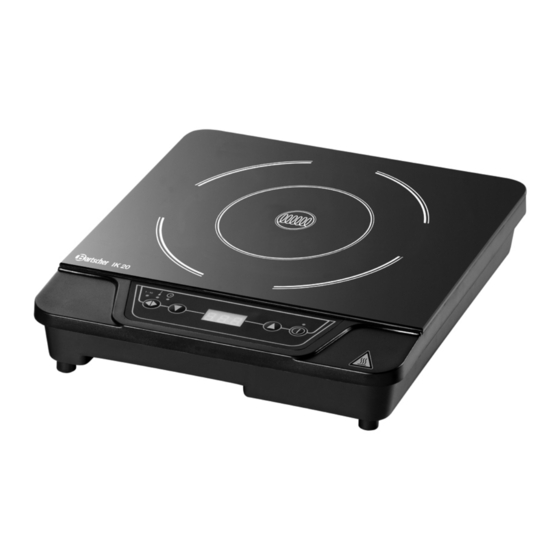

Bartscher IK 20 Translation Of The Original Instruction Manual
  1. Manuals
  2. Brands
  3. Bartscher Manuals
  4. Cookers
  5. IK 20
  6. Translation of the original instruction manual

Bartscher IK 20 Translation Of The Original Instruction Manual

Hide thumbs Also See for IK 20:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
IK 20
105820
V
/ 4
0613

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IK 20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bartscher IK 20

Summary of Contents for Bartscher IK 20

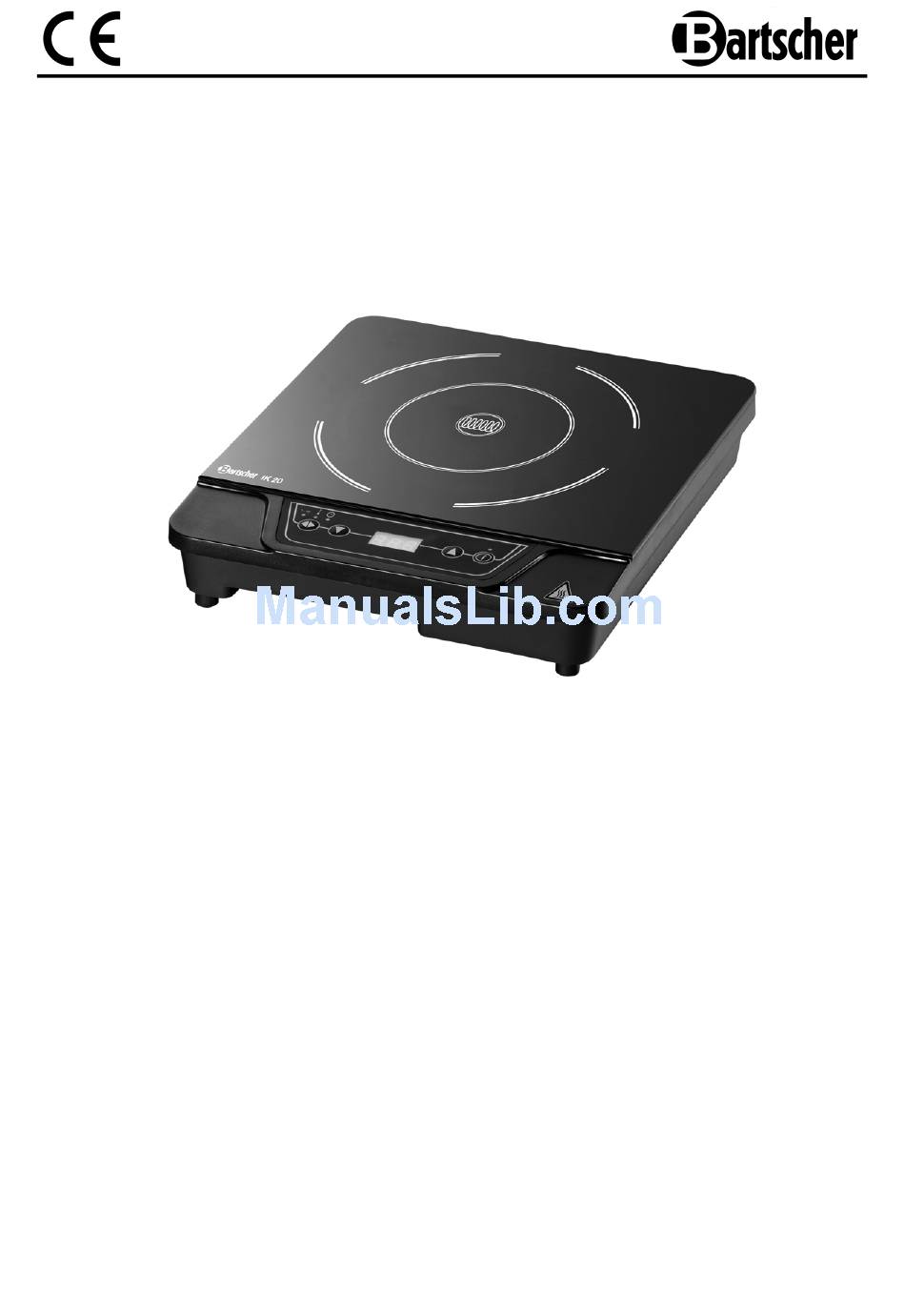

  • Page 1 IK 20 105820 0613...

  • Page 2: Table Of Contents

    6. Cleaning and maintenance ..................30 6.1 Safety advice ....................... 30 6.2 Cleaning ......................30 6.3 Safety instructions for maintenance ..............30 7. Possible Malfunctions .................... 31 8. Waste disposal ......................32 Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:...

  • Page 3: General Information

    1. General information 1.1 Information about the instruction manual This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

  • Page 4: Liability And Warrantees

    CAUTION! Magnetic fields! Do not remove the unit’s bottom cover. 1.3 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention.

  • Page 5: Safety

    2.Safety This section provides an overview of all important safety aspects. In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols. Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility.

  • Page 6: Intended Use

    CAUTION! o The device can be used by children 8 years and up, as well as by people with disabilities and those with limited experience/knowledge as long as they are under supervision or have been instructed on proper use of the device and its possible dangers.

  • Page 7: Transport, Packaging And Storage

    3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

  • Page 8: Technical Data

    4. Technical data 4.1 Technical specification Name Induction cooker IK 20 105820 Code No.: Construction: Heating plate: glass, casing: synthetic materials Working temperature: 60 ° C - 240 ° C Power: 230 V~ 50 Hz 2000 W Power levels: 1 - 10 (1100 - 2000 W)

  • Page 9: Installation And Operation

    5. Installation and operation 5.1 Functionality of induction cookers With induction cooker, an electric voltage is applied on a conductor spool beneath the glass. This creates magnetic fields, which directly heat up the bottom of the cookware through a physical effect. This means saving time and energy, because contrary to common hotplates, the cookware is heated up, not the heating element and the glass.

  • Page 10: Safety Instructions

    5.2 Safety instructions WARNING! Risk of electric shock! The device must only be connected to a properly installed single socket with protective contact. Never remove the power cable by pulling the cable itself; always grab the plug housing. • Never allow the power cable to come into contact with heat sources or sharp edges. The power cable should not hang over the side of the working surface.

  • Page 11: Suitable And Unsuitable Cookware

    • Remember that items of jewelry such as rings, watches etc. can get hot if they are close to the heating surface. • The cooking zone's surface consists of temperature-resistant glass. In case of damage, even if this concern only a small tear, disconnect the device from the power supply immediately and contact the customer service.

  • Page 12: Installation And Connection

    2.7 litres ● Ø 18 cm ● height 11.0 cm 5.1 litres ● Ø 24 cm ● height 11.5 cm 6.1 litres ● Ø 20 cm ● height 20.0 cm Bartscher order no. A130442 Unsuitable cookware o vessels with round bottom;...

  • Page 13: Operation

    • The electrical circuit in the socket must be secured to at least 16A. Only connect the device directly to the wall socket; do not use any extension cords or power strips. • The device should be placed in an area with easy access to the plug, in order to quickly remove it from the socket if necessary.
  • Page 14 Setting time After selecting the desired mode (power level or temperature), press the button marked . The number „0” will appear on the digital display and the LED time control light will come on. Using you may set the time of operation in 5-minute intervals (max. 180 min.). The time is counted down, and after several seconds the digital display returns to previous displays.

  • Page 15: Cleaning And Maintenance

    6. Cleaning and maintenance 6.1 Safety advice o Before beginning with repair or cleaning works make sure the device has been disconnected from power supply and has cooled down. o Do not use any acid agents and make sure no water ingresses the device. o To protect yourself from electric shock, never immerse the device, its cables and the plug in water or other liquids.

  • Page 16: Possible Malfunctions

    7. Possible Malfunctions Error Cause Solution Message • There is no cookware on • Do not turn on the device when the heating plate or the there is no cookware placed on it cookware is inappropriate and only use cookware adapted for induction cookers.

  • Page 17: Waste Disposal

    NOTE! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:...
