Summary of Contents for Bartscher IK 35 TC 105843

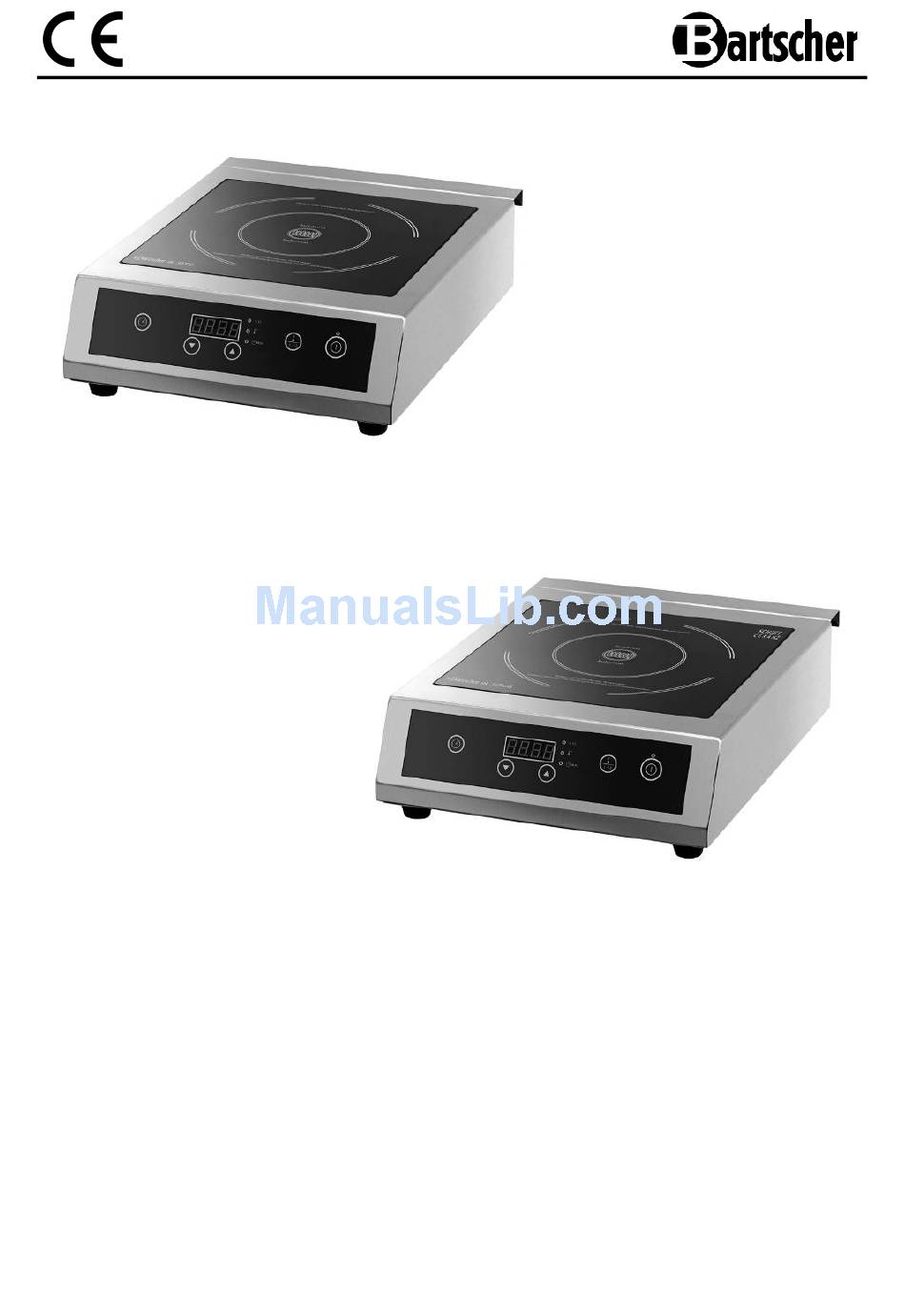

- Page 1 IK 35 TC / 105843 IK 35 TCS / 105843S V1/0115...
-
Page 2: Table Of Contents
6.3 Operation instructions................... 32 7. Cleaning and maintenance ..................34 7.1 Safety advice ......................34 7.2 Cleaning ....................... 34 8. Possible Malfunctions .................... 35 9. Waste disposal ......................36 Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:... -
Page 3: Safety
Read these instructions before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 4: Key To Symbols
• To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken. • Inspect the power cable regularly for damage. Never use the device if the cable is damaged. -
Page 5: Hazard Sources
NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation. CAUTION! Magnetic field! This symbol informs that the magnetic fields occurring during the device operation may cause interference. To avoid them please follow the instructions. 1.3 Hazard sources DANGER! Electric shock hazard! To avoid the hazard results please follow the instructions below. - Page 6 WARNING! Electromagnetic field hazard! To avoid the hazard results please follow the instructions below. The magnetic objects, like credic cards, data storage devices, or calculators, must not be placed in the direct vicinity of the operating device. Their operation may be disturbed by the magnetic field.
- Page 7 WARNING! Fire hazard! To avoid the hazard results please follow the instructions below. Avoid prolonged heating of oils and fats! The overheated oil or fat may quickly ignite. In case of ignition on the cooking field deactivate the device and cover the flame with large pot cover, plate, or moistened cloth.
-
Page 8: Intended Use
.4 Intended use Safe operation is only guaranteed when using the device for its intended purpose. Any technical interventions, as well as assembly and maintenance are to be made by a qualified customer service only. The device is not suitable for continuous commercial use. The device is intended for home use or in similar places such as: →... -
Page 9: General Information
2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 10: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 11: Technical Data
4. Technical data 4.1 Touch-Control operation field with digital display ④ ② ③ ① ⑤ ⑧ ⑦ ⑥ Time setting (0 – 180 minutes) ① Digital display ② LED indicators for power , temperature °C, and time ③ Selection of temperature mode °C or power mode ④... -
Page 12: Technical Data
4.3 Technical data Name Induction cooker 105843 / IK 35TC 105843S / IK 35TCS Code- no./model: Cooking surface: Glass Ceramic glass Schott Timer: 0 - 180 min. Temperature range: 60 ° C to 240 ° C Power levels: 1 - 10 (500 to 3500 W) Power supply: 3500 W / 220-240 V 50/60 Hz Dimensions:... -
Page 13: Electric Connection
5.2 Electric connection WARNING! Electric shock hazard! The device can cause injuries due to improper installation! Before installation the local power grid specification should be compared with that of the device (see type label). Connect the device only in case of compliance! The device must only be connected to a properly installed single socket with protective contact. -
Page 14: Suitable And Unsuitable Cookware
2.8 litres ● Ø 24 cm ● height 6.5 cm 2.7 litres ● Ø 18 cm ● height 11.0 cm 5.1 litres ● Ø 24 cm ● height 11.5 cm 6.1 litres ● Ø 20 cm ● height 20.0 cm Bartscher order no. A130442 - 31 -... -
Page 15: Operation Instructions
Unsuitable cookware o vessels with round bottom; o ceramic, glass; o aluminium, bronze or copper unless, it is expressly marked as suitable for induction; o pots/pans with a diameterof less than 12 cm; o cookware with feet. CAUTION! Please use only the cookware marked suitable for induction cooker. If the induction hotplate detects too great a separation from the magnetizing container, it will cause a reduction in power. - Page 16 Settings Power levels The display will show the initial power level 5. Use the selection buttons to change that setting in range of . The digital display shows the selected power level. Temperature levels ° C It is possible to leave the power level mode and switch to the temperature level mode by pressing the mode selection button.
-
Page 17: Cleaning And Maintenance
• After the cooking or heating process remove the plug from the socket. NOTE! The induction cooker turns off automatically when no setting is made during 2 hours or when the timer is set for longer than 120 minutes. NOTE! In order to use steam cooking (maximum temperature 170°... -
Page 18: Possible Malfunctions
CAUTION! To avoid injuries of the operators or the device damage do not connect the cooker to the power supply without the dust and grease filter. o Always use the soft cloth only, never use any abrasive cleaning agents which may scratch the device. -
Page 19: Waste Disposal
NOTE! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany...
