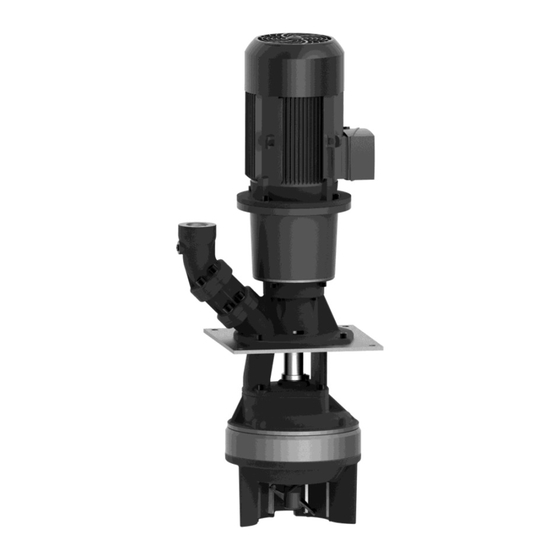

BRINKMANN Cutter pumps
Brinkmann Pumpen
K. H. Brinkmann GmbH & Co. KG
Friedrichstraße 2
D-58791 Werdohl
Tel.: +49-2392 / 5006-0
Fax.: +49-2392 / 5006-180
Subject to change without prior notice.
© Brinkmann Pumpen
Operating Instructions
(Translation of original)
11/2019
Edition
SXC2824 / SXC2824-H
www.brinkmannpumps.de
sales@brinkmannpumps.de
Order - No.: BE3124 ENGLISH
1
Advertisement
Table of Contents
Related Manuals for BRINKMANN PUMPS SXC2824
Summary of Contents for BRINKMANN PUMPS SXC2824
- Page 1 BE3124 Operating Instructions (Translation of original) BRINKMANN Cutter pumps SXC2824 / SXC2824-H Brinkmann Pumpen K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2 D-58791 Werdohl Tel.: +49-2392 / 5006-0 www.brinkmannpumps.de Fax.: +49-2392 / 5006-180 sales@brinkmannpumps.de Subject to change without prior notice.
-
Page 2: Table Of Contents
BRINKMANN-Cutter pumps SXC2824 / SXC2824-H Brinkmann Cutter pumps of the series SXC2824 / SXC2824-H Contents 9 Trouble shooter’s guide ........9 Indication to the manual ........2 Description of product........2 10 Spare part ............10 Safety instructions ..........4 11 Repair Instructions / Replacing shaft clamps Transport and storage ........ - Page 3 BRINKMANN-Cutter pumps SXC2824 / SXC2824-H Limit of Application (Table 1) Type Mediums Coolants, WARNING cooling- and cutting-oils on request. Risk of fire and explosion! Flashing point of ≥ 150 °C Pump may not be used in potentially explosive the medium to be environments.
-
Page 4: Safety Instructions
BRINKMANN-Cutter pumps SXC2824 / SXC2824-H 3 Safety instructions Safety instructions relevant for op- When operating the pump, the safety instructions contained in this manual, the relevant national ac- eration cident prevention regulations and any other ser- – If hot or cold machine components involve... -
Page 5: Transport And Storage
BRINKMANN-Cutter pumps SXC2824 / SXC2824-H Signs on the pump 5 Installation and Connection – It is imperative that signs affixed to the ma- Mechanical installation chine, e.g: • arrow indicating the direction of rota- tion WARNING • symbols indicating fluid connections... - Page 6 BRINKMANN-Cutter pumps SXC2824 / SXC2824-H When pumping cooling- and cutting oils the following is to be adhered to: – The geometry of the tank must be de- signed and executed in such a way that no flammable aerosol can develop (i.e.
-
Page 7: Start Up / Shut Down
BRINKMANN-Cutter pumps SXC2824 / SXC2824-H The electrical wiring must be performed ac- 7 Operation cording to the wiring diagram shown inside the terminal box cover. (Please see above sample wiring diagrams) WARNING Wiring diagram e.g. Risk of injury by uncontrolled start-up of... -
Page 8: Servicing And Maintenance
BRINKMANN-Cutter pumps SXC2824 / SXC2824-H 8 Servicing and Maintenance WARNING Risk of fire and explosion! CAUTION Risk of burns! The creation of an ignition spark with the pres- ence of an ignitable Aerosol can lead to risk of – The pump must have cooled down suffi- fire and explosion. -
Page 9: Trouble Shooter's Guide
BRINKMANN-Cutter pumps SXC2824 / SXC2824-H 9 Trouble shooter’s guide Fault Cause Remedy Motor does not start, no motor At least two of the power supply Check fuses, terminals and supply noise leads have failed leads. Overload has tripped Inspect overload... -
Page 10: Spare Part
BRINKMANN-Cutter pumps SXC2824 / SXC2824-H 10 Spare part Spare part list for the immersion 10.1 pumps of the series SXC2824 Item Description Motor Bearing flange Pump housing Bearing shaft Woodruff key Coupling Ball bearing DIN 628 Socket head cap screw... -
Page 11: Repair Instructions / Replacing Shaft Clamps And Shafts
BRINKMANN-Cutter pumps SXC2824 / SXC2824-H Indications to the spare part order 10.2 Spare parts are available from the supplier. WARNING Standard commercially available parts are to be purchased in accordance with the model type. Risk of injury due to sharp edges on pump The ordering of spare parts should contain the components, i.e. -
Page 12: Disposal
BRINKMANN-Cutter pumps SXC2824 / SXC2824-H WARNING Risk of injury due to sharp edges on pump components, i.e. impeller blades! – Wear safety gloves! – Install the motor. – The remainder of the reassembly process is to be completed in the opposite order of the prior described dismantling process. -
Page 13: Ec Declaration Of Conformity
Produktbezeichnung / Product name / Désignation du produit / Designación del producto Cutterpumpen / Cutter Pumps / Pompes Broyeuses / Bombas Trituradoras Typ / Type / Tipo SXC2824 / SXC2824-H Das bezeichnete Produkt stimmt mit den folgenden Richtlinien des Rates zur Angleichung der Rechtsvorschriften der EG-Mitgliedsstaaten überein: The named product conforms to the following Council Directives on approximation of laws of the EEC Member States: Le produit sus-mentionné...
