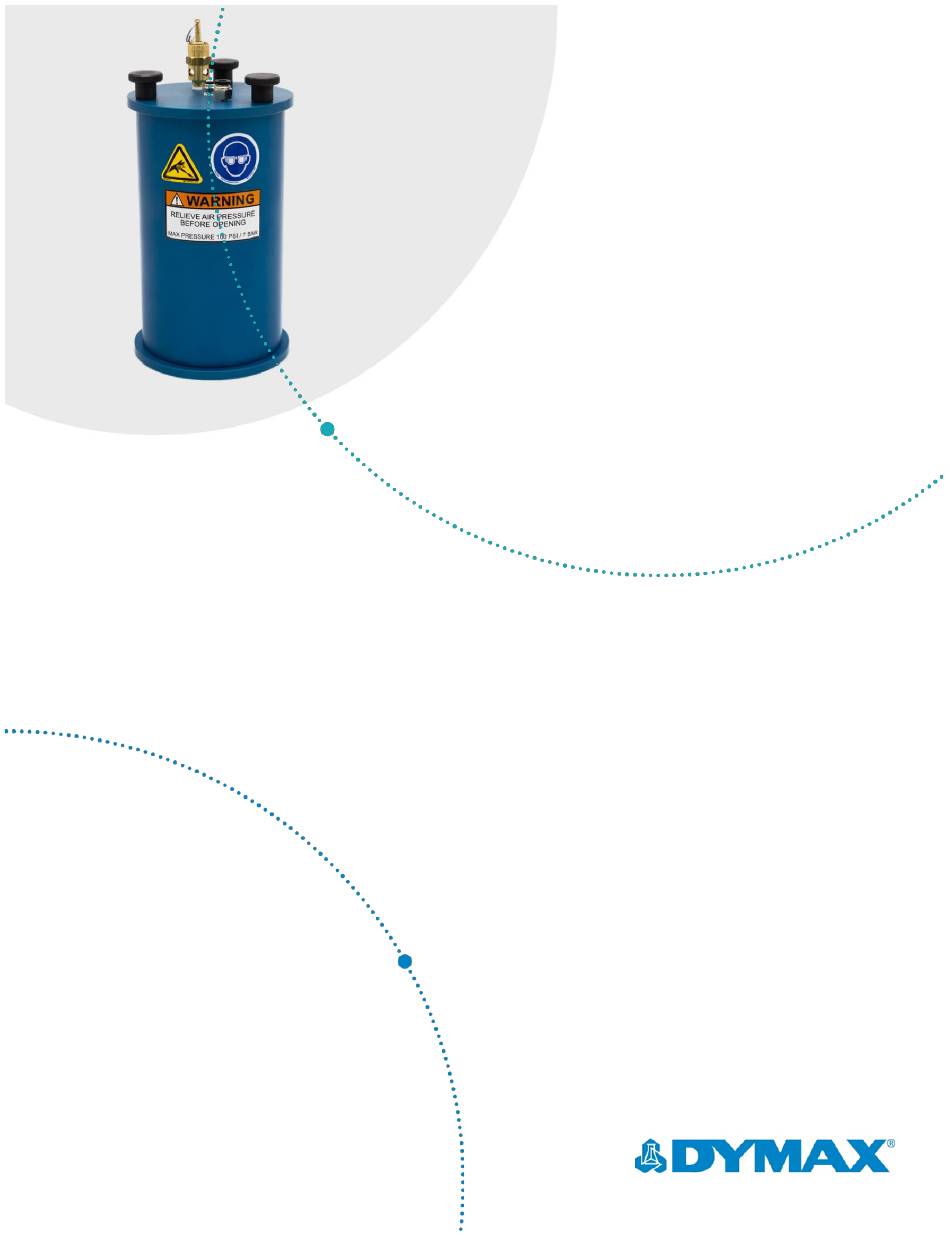

- Page 1 Mini Pressure Pot 1 lb Pressure Pot User Guide...
- Page 2 Please note that most dispensing and curing system applications are unique. Dymax does not warrant the fitness of the product for the intended application. Any warranty applicable to the product, its application, and use is strictly limited to that contained in the Dymax standard Conditions of Sale.
-
Page 3: Table Of Contents
Safety ................... 4 Symbols ......................4 Potential Hazards ..................... 5 Product Overview ............... 7 Description of the Dymax 1 lb Pressure Pot ..........7 Special Features and Benefits ............... 7 Description of Main Components ..............8 Installation ................... 8 Unpacking and Inspecting Your Shipment........... 8 Parts Included .................... -
Page 4: Introduction
Introduction This guide describes how to use the Dymax 1 lb Pressure Pot (PN T40571). Sections in this guide describe how to assemble, use, and maintain the pressure pot safely and efficiently. Intended Audience Dymax prepared this user guide for experienced process engineers, technicians, and manufacturing personnel. -
Page 5: Potential Hazards
Do not alter or modify this equipment in any way. If worn parts need to be replaced, use only Dymax parts and accessories. - Page 6 Inspect all tubing for cuts, leaks, or other damage and replace any damaged tubing immediately. Check that the material being dispensed is compatible with the tubing material. Contact Dymax Applications Engineering if you are unsure of tubing/material compatibility.
-
Page 7: Product Overview
Description of the Dymax 1 lb Pressure Pot The Dymax 1 lb Pressure Pot is a pressure pot designed to accommodate drop-in fluid bottles/containers for use in dispensing systems. Materials are carried through a disposable fluid path from the bottle to the dispensing valve by constant air pressure. -
Page 8: Description Of Main Components
Contact Dymax so that new parts can be shipped to you immediately. Check that the parts included in your order match those listed below. If parts are missing, contact your local Dymax representative or Dymax Customer Support to resolve the problem. - Page 9 Connect shop air, pressurize the tank to the required pressure, and operate the fluid delivery system. NOTE: Dymax recommends using an air regulator between shop air and the pressure pot for precision pressure control. U S E R G U I D E...
-
Page 10: Maintenance
If your reservoir is dropped, it must be thoroughly inspected for cracks or damage to the pressure regulator and/or pressure relief valve. Any damaged parts must be replaced with Dymax parts before the equipment can be operated again. If you are unsure about the condition of the pressure pot, please call Dymax. -
Page 11: Troubleshooting
Troubleshooting Table 1. Troubleshooting Chart for Dymax 1 lb Pressure Pot Problem Possible Cause Corrective Action Inspect the Air Supply Line. Straighten and remove Bent Air Supply Line any kinks in the Air Supply Line. Tank does not maintain Damaged Cover U-Cup Seal Replace the damaged U-Cup Seal. - Page 12 Figure 2. Pressure Pot Replacement Parts Item Part # Description Qty. FITTING,.25OD,.125 T11674 NPT,STRGHT LABEL, RELIEVE AIR, .75"x3" T15920 LABEL, WEAR EYE T17406 PROTECTION LABEL,SKIN PUNCTURE, T17407 PRESS JET T18728 1 LB PRESSURE POT TUBE T18730 1LB PRESSURE POT BASE U CUP SEAL, 3ID X 3.5OD, T18731 BUNA...
-
Page 13: Specifications
Specifications Property Specification Part Number T40571 Capacity 500 mL Material Container Maximum Operating Pressure 25 psi (172 kPa, 0.17 Mpa, 1.7 bar) Maximum Operating Temperature 0°C (32°F) to 50°C (122°F) Safety Relief Valve Size 1/8 inch NPT (3.2 mm) Air Inlet Size 1/8 inch NPT (3.2 mm) Fitting (1/4”... -
Page 14: Warranty
Warranty From date of purchase, Dymax Corporation offers a one-year warranty against defects in material and workmanship on all system components with proof of purchase and purchase date. Unauthorized repair, modification, or improper use of equipment may void your warranty benefits. The use of aftermarket replacement parts not supplied or approved by Dymax Corporation will void any effective warranties and may result in damage to the equipment. - Page 15 U S E R G U I D E 1 L B P R E S S U R E P O T...
