SCHUNK iTENDO2 easy monitor Assembly And Operating Manual page 30

iTENDO² app with easy monitor

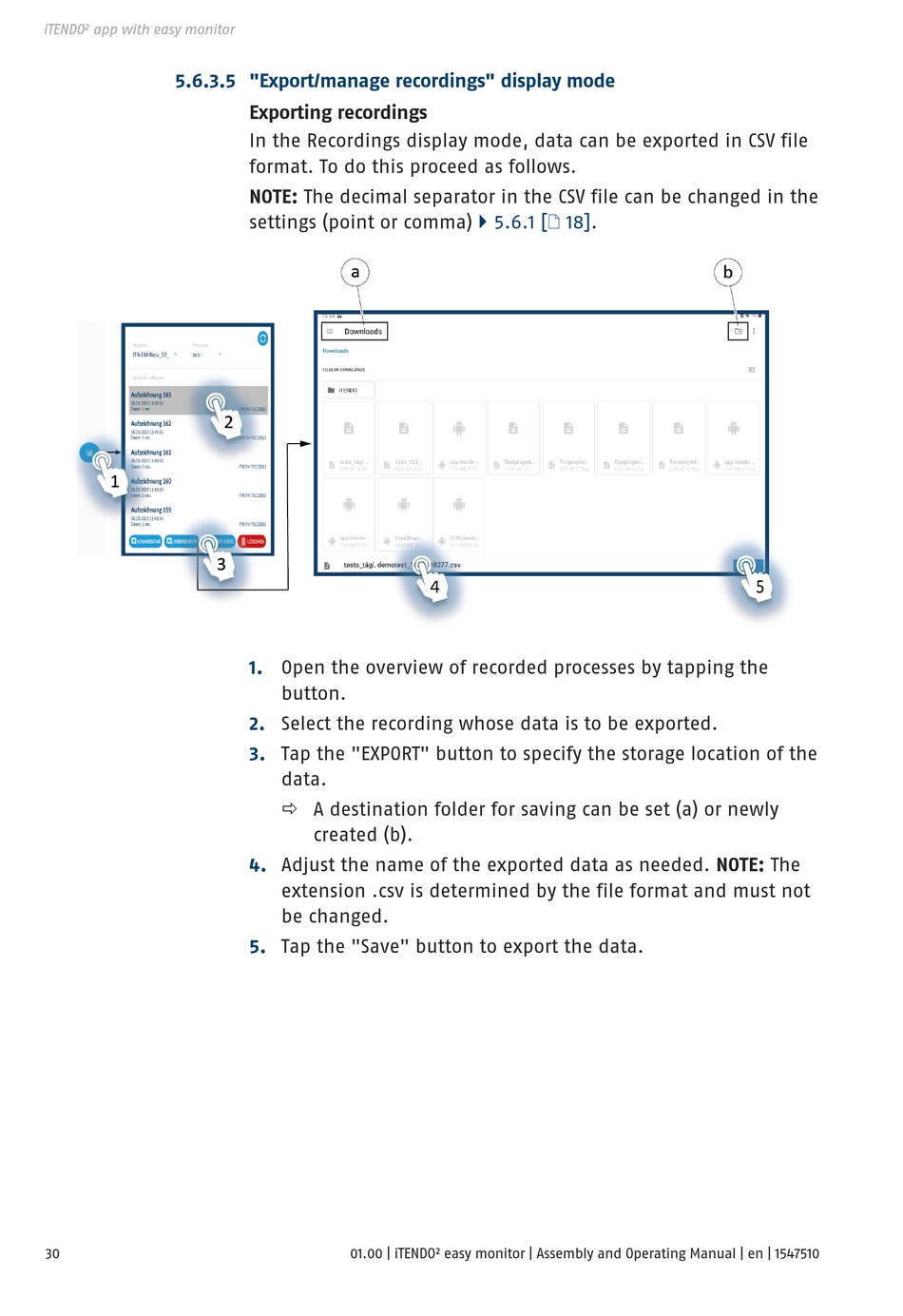

5.6.3.5 "Export/manage recordings" display mode
30
Exporting recordings
In the Recordings display mode, data can be exported in CSV file
format. To do this proceed as follows.
NOTE: The decimal separator in the CSV file can be changed in the
settings (point or comma)
1. Open the overview of recorded processes by tapping the
button.
2. Select the recording whose data is to be exported.
3. Tap the "EXPORT" button to specify the storage location of the
data.
ð A destination folder for saving can be set (a) or newly
created (b).
4. Adjust the name of the exported data as needed. NOTE: The
extension .csv is determined by the file format and must not
be changed.
5. Tap the "Save" button to export the data.
01.00 | iTENDO² easy monitor | Assembly and Operating Manual | en | 1547510
} 5.6.1 [/ 18].
