5.6.3.2 "Trend" display mode
01.00 | iTENDO² easy monitor | Assembly and Operating Manual | en | 1547510

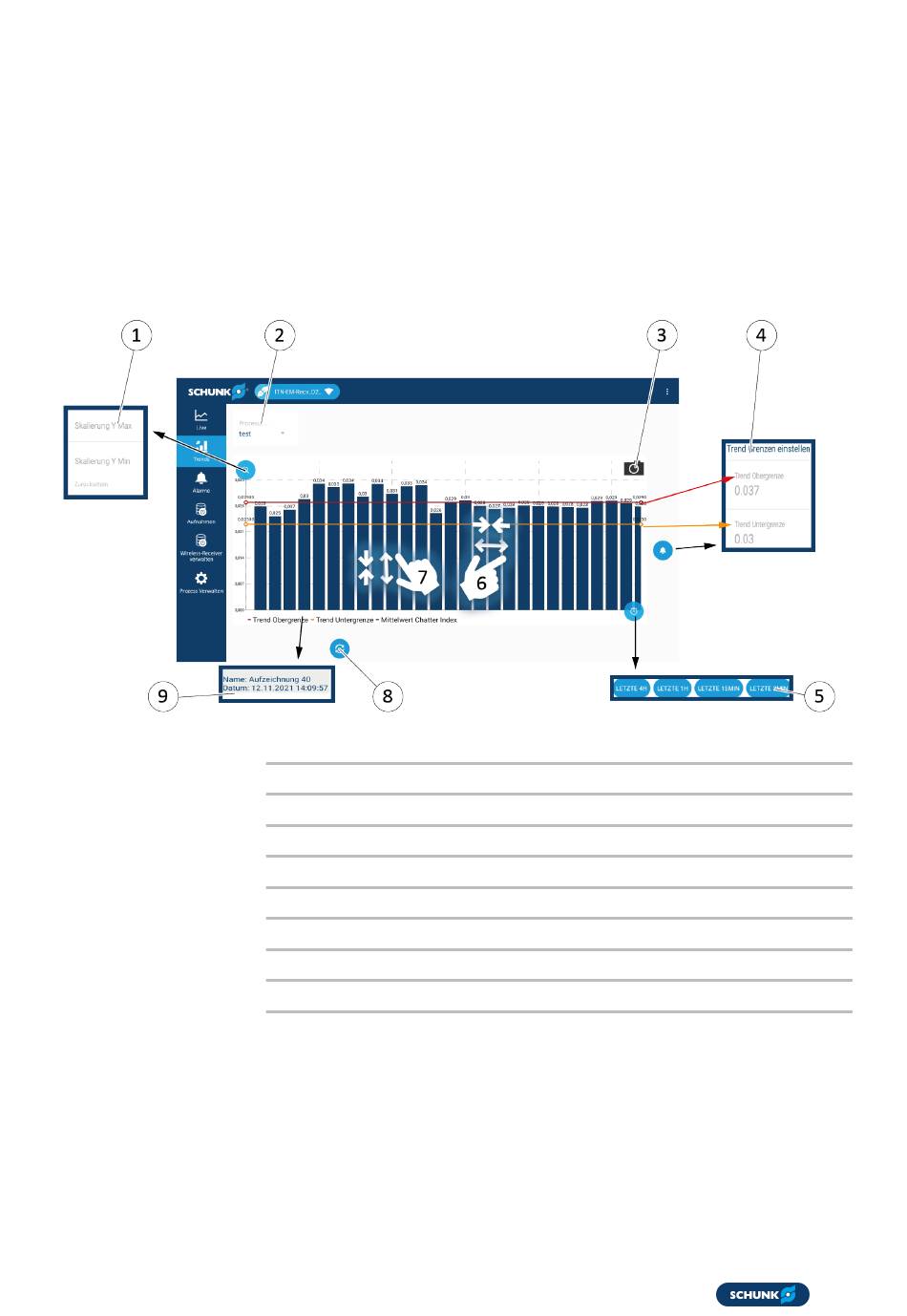

In the "Trend" display mode, it is possible to determine the
average values of individual recordings from the recording
controlled via Digital IN (ON). In the central diagram, the average
values can be compared and the exact limits defined for the
process can be displayed.
NOTE: Trends can only be displayed if recordings exist for the
selected process.
1
Settings menu scale parameters of the Y-axis
2
Process selection
3
Camera button
4
Display trend limits
5
Number of bars shown button
6
Manual zoom (X-axis)
7
Manual zoom (Y-axis)
8
Reset view
9
Bar-specific information
