HI Power Supply Configurations

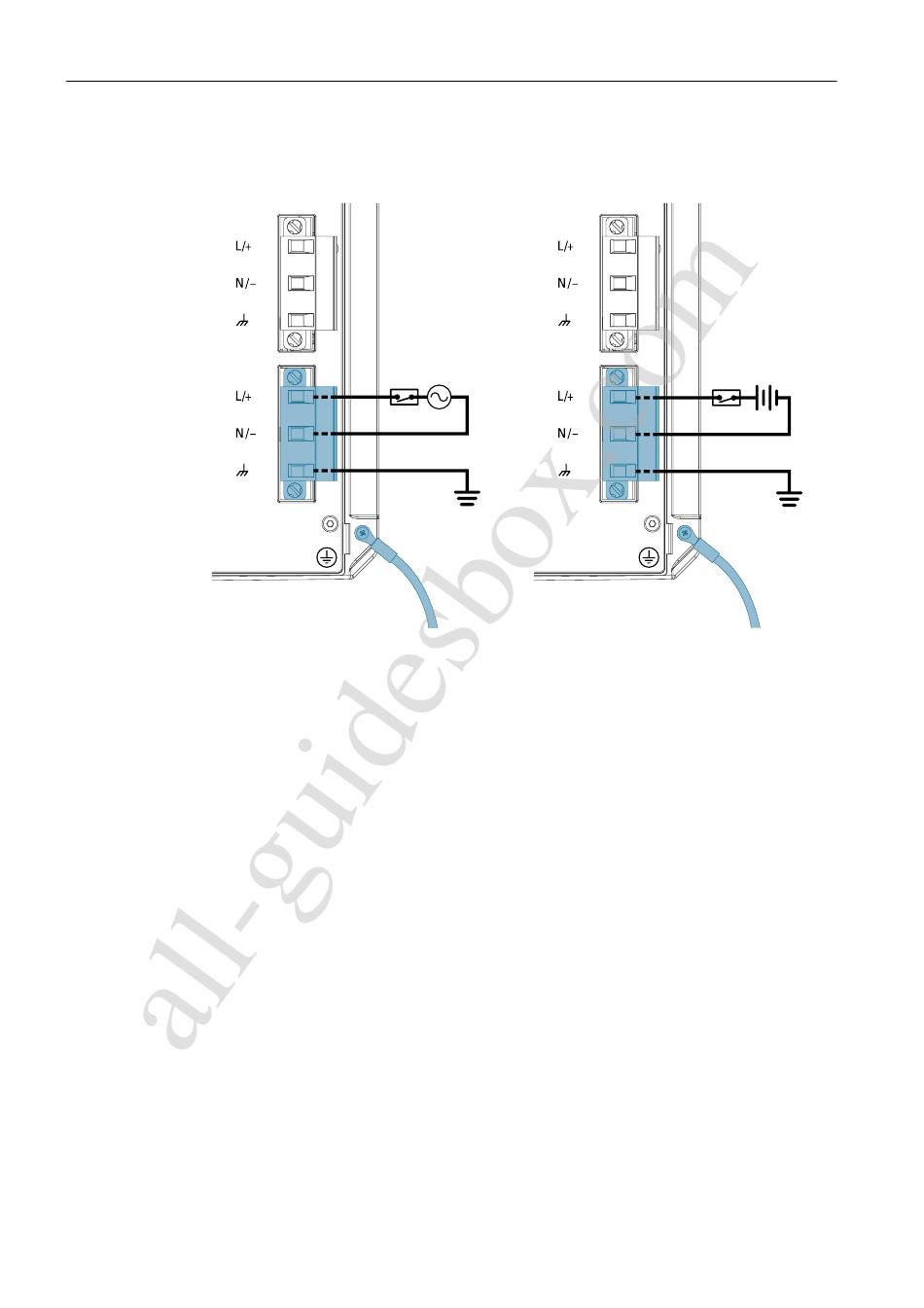

Figure 2.11
RUGGEDCOM RSG907R
Installation Manual, 02/2021, C79000-G8976-1387-12
All manuals and user guides at all-guidesbox.com
Single HI AC Power Input
Configuration
Installing the Device
2.6.2 Wiring Examples
Figure 2.12
Single HI DC Power Input
Configuration
-
+
