R718N360

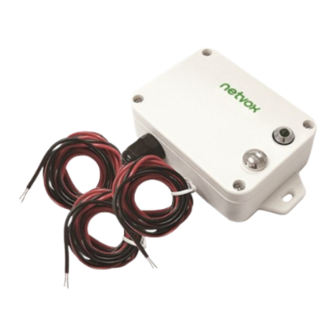

Wireless 3-Phase Current Meter Interface
Wireless 3-Phase
Current Meter Interface
R718N360
User Manual
Copyright© Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained
in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX
Technology. The specifications are subject to change without prior notice.
Advertisement
Table of Contents
Related Manuals for netvox R718N360
Summary of Contents for netvox R718N360
- Page 1 This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The specifications are subject to change without prior notice.
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ........................2 2. Appearance ........................2 3. Features ..........................3 4. Setup Instruction ......................3 5. Data Report ........................5 5.1 Example of ReportDataCmd ..................5 5.2 Example of ConfigureCmd ..................7 5.3 Set/GetSensorAlarmThresholdCmd ................8 5.4 Example for MinTime/MaxTime Logic .............. -
Page 3: Introduction
1. Introduction R718N360 is 3-Phase Current Meter Interface device for Netvox Class A devices based on the LoRaWAN open protocol and is compatible with the LoRaWAN protocol. LoRa Wireless Technology: LoRa is a wireless communication technology famous for its long-distance transmission and low power consumption. -
Page 4: Features
⚫ Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional) ⚫ Available third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne ⚫ Low power consumption and longer battery life Note: Please refer to http://www.netvox.com.tw/electric/electric_calc.html for more information of battery lifespan at different configurations. 4. Setup Instruction On/Off Power on Insert batteries. - Page 5 1. Please remove batteries if the device is not in use. Fail to Join the Network 2. Please check the device verification information on the gateway or consult your platform server provider. Function Key Back to default setting / Power off Long press for 5 seconds The green indicator light flashes 20 times: Success The green indicator light remains off: Fail...
-
Page 6: Data Report
(2) If the MinTime configuration is less than 20 seconds, it will configure 20 seconds. (3) R718N360 series would take about 3 seconds for the CT to sample and process the collected value, If the current changes frequently, the sampling result might be wrong. - Page 7 ChannelCRawData(4Bytes) Example 1 of Uplink: 01CA019F000002A9000000 byte (01): Version byte (CA): DeviceType – 0xCA – R718N360 byte (01): ReportType byte (9F): Battery – 3.1V Battery=0x9F, binary=1001 1111, if bit 7= 1, it means low voltage. The actual voltage is 0010 0000 = 0x1F = 31, 31*0.1v =3.1v (000002A9): ChannelARawData –...
-
Page 8: Example Of Configurecmd
Example 2 of Uplink: 01CA02000002AB000002A1 1st byte (01): Version 2nd byte (CA): DeviceType – 0xCA – R718N360 byte (02): ReportType (000002AB): ChannelBRawData – 683 683 (Dec) = 000002AB (Hex) byte (000002A1): ChannelBRawData – 673 673 (Dec) = 000002A1 (Hex) 5.2 Example of ConfigureCmd FPort：0x07... -
Page 9: Set/Getsensoralarmthresholdcmd
5.3 Set/GetSensorAlarmThresholdCmd Fport:0x10 CmdID CmdDescriptor Payload(10Bytes) (1Byte) SensorHighThreshold SensorLowThreshold Channel(1Byte, SensorType(1Byte, (4Bytes,Unit:same as (4Bytes,Unit:same as SetSensorAlarm 0x00_Channel1, 0x00_Disable ALL 0x01 reportdata in fport6, reportdata in fport6, ThresholdReq 0x01_Chanel2, SensorthresholdSet 0Xffffffff_DISALBLEr 0Xffffffff_DISALBLEr 0x02_Channel3,etc) 0x27_Current, HighThreshold) HighThreshold) SetSensorAlarm Status 0x81 Reserved (9Bytes,Fixed 0x00) ThresholdRsp (0x00_success) Channel(1Byte,... -
Page 10: Example For Mintime/Maxtime Logic
5.4 Example for MinTime/MaxTime Logic Example#1 based on MinTime = 1 Hour, MaxTime= 1 Hour, Reportable Change i.e. RawDataChange=100 MaxTime MaxTime Sleeping (MinTime) Sleeping (MinTime) Wakes up and collects data Wakes up and collects data RawDataChange 5000 RawDataChange 5000 Note: Note: MaxTime=MinTime. Data will only be reported according to MaxTime (MinTime) duration regardless RawDataChange value. -
Page 11: Installation
Target load current value= “R718N360 read value” / (“R718N360 read standard load value” / “standard load current value”) When R718N360 is connected to the CT which needs to be used, it is necessary to obtain the conversion coefficient k first. - Page 12 Formula 2: Target load current value= “R718N360 read value” / (rawdata * 500 * CT transformation ratio) / (0.18 * 8388608) mA Example: R718N360 reads the value 925. CT transformation ratio: 3000:1 The current value of the target load = (925*500*3000) / (0.18*8388608) = 918.904940287mA...
- Page 13 2. The Wireless 3-Phase Current Meter Interface built-in magnet (as the Figure 1 below). It can be attached (R718N360) samples the current according to MinTime. to the surface of an object with iron during installation, If the current value sampled this time relatively exceeds the which is convenient and quick.
-
Page 14: Information About Battery Passivation
7. Information about Battery Passivation Many of Netvox devices are powered by 3.6V ER14505 Li-SOCl2 (lithium-thionyl chloride) batteries that offer many advantages including low self-discharge rate and high energy density. However, primary lithium batteries like Li-SOCl2 batteries will form a passivation layer as a reaction between the lithium anode and thionyl chloride if they are in storage for a long time or if the storage temperature is too high.
