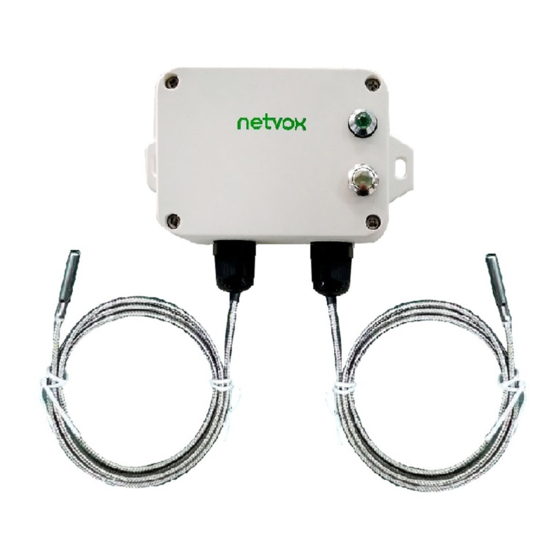

netvox R718CT2 User Manual
Wireless thermocouple interface for t/k/r type thermocouple
Hide thumbs
Also See for R718CT2:
- User manual (6 pages) ,
- User manual (10 pages) ,
- User manual (12 pages)
Related Manuals for netvox R718CT2
Summary of Contents for netvox R718CT2
- Page 1 R718CT2/CK2/CR2 Mode： Wireless Thermocouple Interface for T/K/R Type Thermocouple Wireless Thermocouple Interface for T/K/R Type Thermocouple R718CT2/CK2/CR2 User Manual...
-
Page 2: Table Of Contents
Table of Content 1. Introduction................................2 2. Appearance................................. 3 3. Main Features................................3 4.Set up Instruction.................................3 4.1 Power on and Turn on / off..........................3 4.2 Join Into Lora Network............................ 4 4.3 Function Key..............................4 4.4 Data Report...............................4 5. Restore to Factory Setting............................5 6. -
Page 3: Introduction
It is not recommended for use in weak oxidizing atmospheres in oxidizing alternating atmospheres and in vacuum. R718CT2 (copper-copper-nickel thermocouple): its use temperature is , it is used in the -40 ~ +125℃... -
Page 4: Appearance
2. Appearance Fig.1 Appearance 3. Main Features Compatible with LoRa protocol. 2 x ER14505 AA lithium batteries（3.6V, 2400mah/section） 4.Set up Instruction 4.1 Power on and Turn on / off (1) Insert two 3.6V power supplies to the battery holder of the device. The R718CK2/T2/R2 device is not yet powered. -
Page 5: Join Into Lora Network
4.2 Join Into Lora Network To join R718CT2/CK2/CR2 into LoRa network to communicate with LoRa gateway. The network operation is as following: After the device is powered on, it starts to actively search for the network. If it searches a network that can be joined, the green indicator light will stay on for 5 seconds to indicate that the network is successfully joined. -
Page 6: Restore To Factory Setting
(B) When it is not in the network → R718CT2/CK2/CR2 will enter sleeping mode and wake up every 15 seconds to search a network to join in the first two minutes. After two minutes, it will wake up every 15 minutes to request to join the network. -
Page 7: Important Maintenance Instruction
9. Important Maintenance Instruction Your device is a product of superior design and craftsmanship and should be used with care. The following suggestions will help you use the warranty service effectively. • Keep the equipment dry. Rain, moisture, and various liquids or moisture may contain minerals that can corrode electronic circuits.
