R718J
Wireless Dry Contact Interface
Wireless Dry Contact Interface
R718J
User Manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall
be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written
permission of NETVOX Technology. The specifications are subject to change without prior notice.

Advertisement

Table of Contents
loading

Related Manuals for netvox R718J

Summary of Contents for netvox R718J

  • Page 1 User Manual Copyright©Netvox Technology Co., Ltd. This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written...

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction ................2 2. Appearance ................. 2 3. Features ..................3 4. Set up Instruction ................ 3 5. Data Report ................4 5.1 Example of ReportDataCmd ..........5 5.2 Example of ConfigureCmd ..........6 5.3 Example for MinTime/MaxTime logic ........ 8 6.

  • Page 3: Introduction

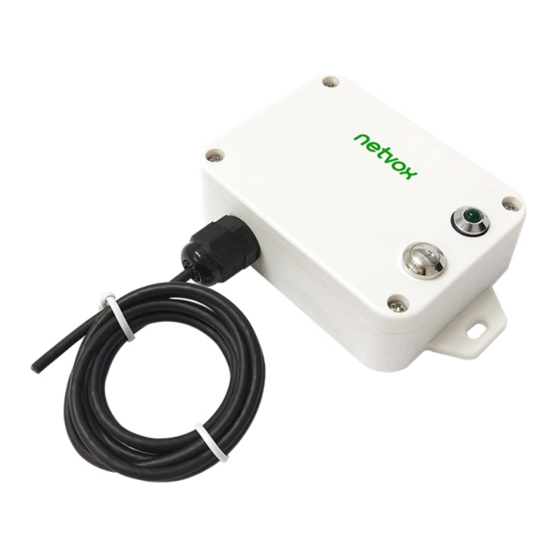

    1. Introduction R718J is a ClassA external dry contact device based on LoRaWAN open protocol of Netvox. It can externally connect various switches, buttons, relays and reed switch output. It can detect the closing or disconnecting signal of dry contact and is compatible with LoRaWAN protocol.

  • Page 4: Features

    ⚫ Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne ⚫ Low power consumption and long battery life ⚫ Battery Life: ⁻Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html ⁻At this website, users can find battery life time for variety models at different configurations. 4. Set up Instruction On/Off Power on Insert batteries.

  • Page 5: Data Report

    *The function of Resendtime is supported by the firmware version after 2020/05/13 version Note: The device send data cycle depends on real burning configuration. The interval between two reports must be the minimum interval. Please refer Netvox LoRaWAN Application Command document and Netvox Lora Command Resolver http://www.netvox.com.cn:8888/cmddoc to resolve uplink data.

  • Page 6: Example Of Reportdatacmd

    Version– 1 byte –0x01——the Version of NetvoxLoRaWAN Application Command Version DeviceType– 1 byte – Device Type of Device The devicetype is listed in Netvox LoRaWAN Application Devicetype doc ReportType – 1 byte –the presentation of the NetvoxPayLoadData，according the devicetype NetvoxPayLoadData– Fixed bytes (Fixed =8bytes) Tips 1.

  • Page 7: Example Of Configurecmd

    Example 1 of Uplink: 0121012401000000000000 byte (01): Version byte (21): DeviceType 0x21 － R718J byte (01): ReportType byte (24): Battery－3.6v , 24(HEX)=36(DEC),36*0.1v=3.6v byte (01): Status－on ~ 11 byte (000000000000): Reserved Example 2 of Uplink: 0121019F00000000000000 byte (01): Version byte (21): DeviceType 0x21 － R718J byte (01): ReportType byte (9F): Battery－3.1v , 1F (HEX)=31(DEC),31*0.1v=3.1v...
  • Page 8 (1) Configure device parameters MinTime = 1min, MaxTime = 1min, BatteryChange = 0.1v 003C(H = 60(D Downlink: 0121003C003C0100000000 Device returns: 8121000000000000000000 (configuration is successful) 8121010000000000000000 (configuration failed) (2) Read device parameters Downlink: 0221000000000000000000 Device returns: 8221003C003C0100000000 (current device parameters) Resendtime(1Byte) SetLastMessage Reserved 0x1F...

  • Page 9: Example For Mintime/Maxtime Logic

    5.3 Example for MinTime/MaxTime logic Example#1 based on MinTime = 1 Hour, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange=0.1V MaxTime MaxTime sleeping (MinTime) sleeping (MinTime) Wakes up and collect data Wakes up and collect data Wake up and collect data REPORTS 3.6V REPORTS 3.6V REPORTS 3.6V...
  • Page 10 Notes: 1) The device only wakes up and performs data sampling according to MinTime Interval. When it is sleeping, it does not collect data. 2) The data collected is compared with the last data reported. If the data variation is greater than the ReportableChange value, the device reports according to MinTime interval.

  • Page 11: Installation

    ⚫ State monitoring of doors and windows in home or business The occasion is necessary to judge the state of the sensor through the dry contact signal. A diagram that the dry contact sensor (R718J) connecting to a wired smoke sensor. External DC24V+...

  • Page 12: Information About Battery Passivation

    7. Information about Battery Passivation Many of Netvox devices are powered by 3.6V ER14505 Li-SOCl2 (lithium-thionyl chloride) batteries that offer many advantages including low self-discharge rate and high energy density. However, primary lithium batteries like Li-SOCl2 batteries will form a passivation layer as a reaction between the lithium anode and thionyl chloride if they are in storage for a long time or if the storage temperature is too high.

  • Page 13: Important Maintenance Instruction

    8. Important Maintenance Instruction Kindly pay attention to the following in order to achieve the best maintenance of the product: •Do not put the device near or submerge into water. Minerals in rain, moisture, and other liquids could cause corrosion of electronic components.
