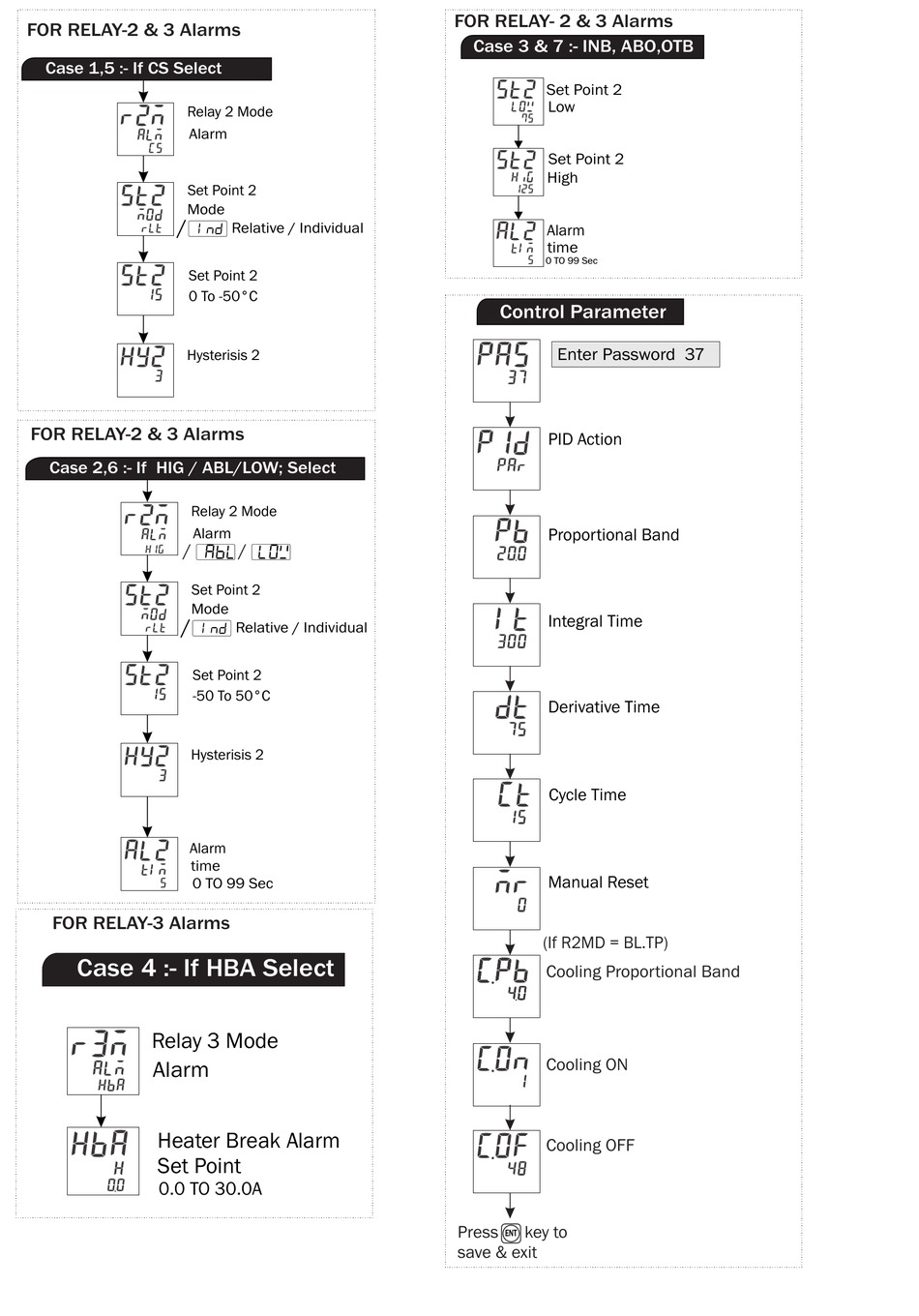

Control Parameter - MULTISPAN PID 2303-1C-M1 Installation Manuallines

FOR RELAY-2 & 3 Alarms
Case 1,5 :- If CS Select
Relay 2 Mode
Alarm
Set Point 2
Mode
IND
Set Point 2
0 To -50°C
Hysterisis 2
FOR RELAY-2 & 3 Alarms
Case 2,6 :- If HIG / ABL/LOW; Select
Relay 2 Mode
Alarm
/
Set Point 2
Mode
Set Point 2
-50 To 50°C
Hysterisis 2
Alarm
time
0 TO 99 Sec
FOR RELAY-3 Alarms
Case 4 :- If HBA Select
Relay 3 Mode
Alarm
Heater Break Alarm
Set Point
0.0 TO 30.0A
Relative / Individual
/
aBL LOW
IND
Relative / Individual
FOR RELAY- 2 & 3 Alarms
Case 3 & 7 :- INB, ABO,OTB
Set Point 2
Low
Set Point 2
High
Alarm
time
0 TO 99 Sec

Control Parameter

Enter Password 37
PID Action
Proportional Band
Integral Time
Derivative Time
Cycle Time
Manual Reset
(If R2MD = BL.TP)
Cooling Proportional Band
Cooling ON
Cooling OFF
Press key to
ENT
save & exit
