MULTISPAN PID 2303-1C-M1 Installation Manuallines page 5

Set Point Setting
c
°
Process Value
PV
Set Value
SV
1
OUT
H 1
Ampere
2
OUT A
3 ~
OUT
Set Point-1
Press
Basic configuration
Input ( J / K )
Output Mode
(Both/S.S.R/Relay)
Relay 1 Mode
If On/Off Select
Relay 2 Mode
Coolig / Alarm
If Relay 2 OFF
FOR RELAY-2 Alarms
Case 1 :- If CS Select
Case 2 :- If HIG,ABL,LOW Select
Case 3 :- If INB,ABO,OTB Select
Set Point 2
1 to 50
If R2MD = ON-OFF
Relay 3 Mode
Alarm
High Alarm,ABL,INB,ABO,OFF,
If Relay 3 OFF
OTB,LOW,HBA,CS
Case 4 :- If HBA Select
Case 5 :- If CS Select
Case 6 :- If HIG,ABL,LOW Select
Case 7 :- If INB,ABO,OTB Select
Set Point 3
Mode
key for 4 sec to
SET
enter Password
Password Message
Enter Password 73
SSR RLY
ONF
If PID Select
ONF (Blower TP Action/ON-OFF/
High Alarm/ABL/INB/ABO/OFF
/OTB/LOW/CS)
If Blower TP Select
IND Relative / Individual

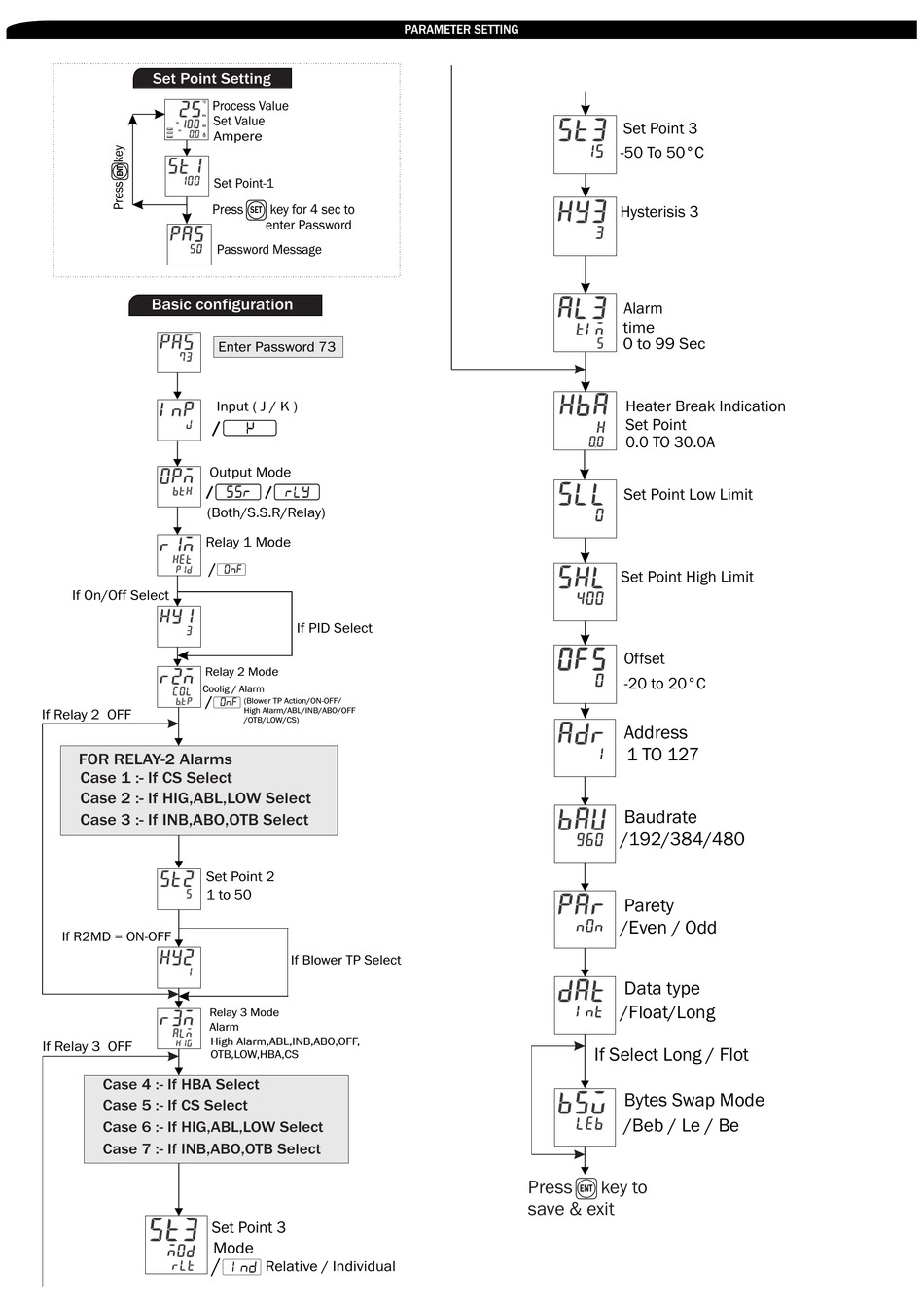

PARAMETER SETTING
Press
save & exit
Set Point 3
-50 To 50°C
Hysterisis 3
Alarm
time
0 to 99 Sec
Heater Break Indication
Set Point
0.0 TO 30.0A
Set Point Low Limit
Set Point High Limit
Offset
-20 to 20°C
Address
1 TO 127
Baudrate
/192/384/480
Parety
/Even / Odd
Data type
/Float/Long
If Select Long / Flot
Bytes Swap Mode
/Beb / Le / Be
key to
ENT
